Section 5: Switching and scanning Series 3700A System Switch/Multimeter Reference Manual
5-34 3700AS-901-01 Rev. D/June 2018
Output characteristics:
• In addition to trigger events from other trigger objects, the digio.trigger[N].assert() and
tsplink.trigger[N].assert() commands generate a low pulse that is similar to the falling
edge trigger mode.

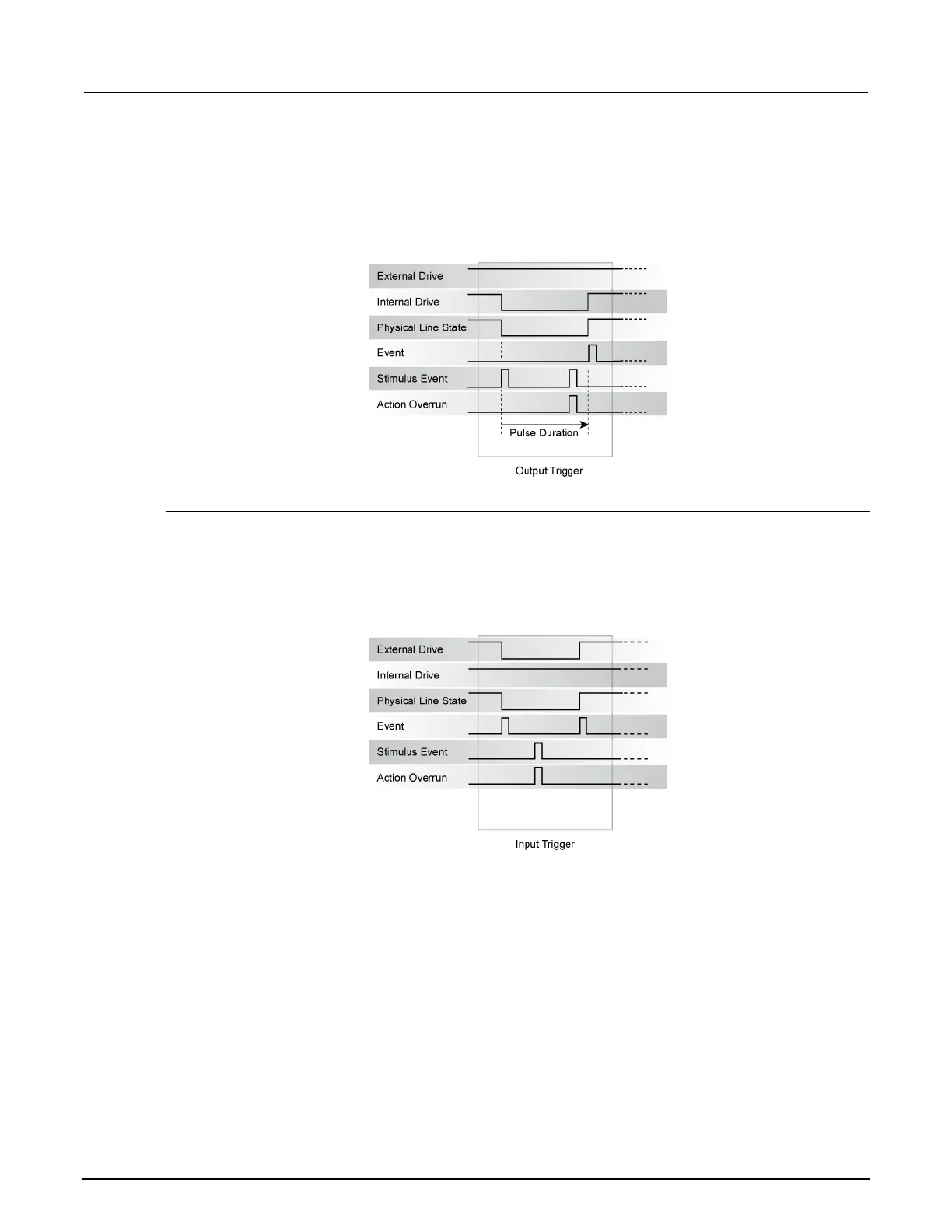

Figure 89: RisingA output trigger
Either edge trigger mode
The either edge trigger mode generates a low pulse and detects both rising and falling edges.
Input characteristics:
• All rising or falling edges generate an input trigger event.
Figure 90: Either edge input trigger
