Section 8
:
Theory of operation
Series 3700A System Switch/Multimeter Reference Manual
8-
10
3700AS-901-01 Rev. D/June 2018
V
MEAS
includes the voltage drops of the input t
est leads (Input HI and I
nput LO). Therefore, th
e actual
voltage drop across the DUT is V
MEAS
minus the two voltage drops in the test
leads. Because
matched inputs are used, t
he voltage drop is 2 × V
LEAD
. Therefore:
V
DUT
= V
MEAS
–
2(V
LEAD
)

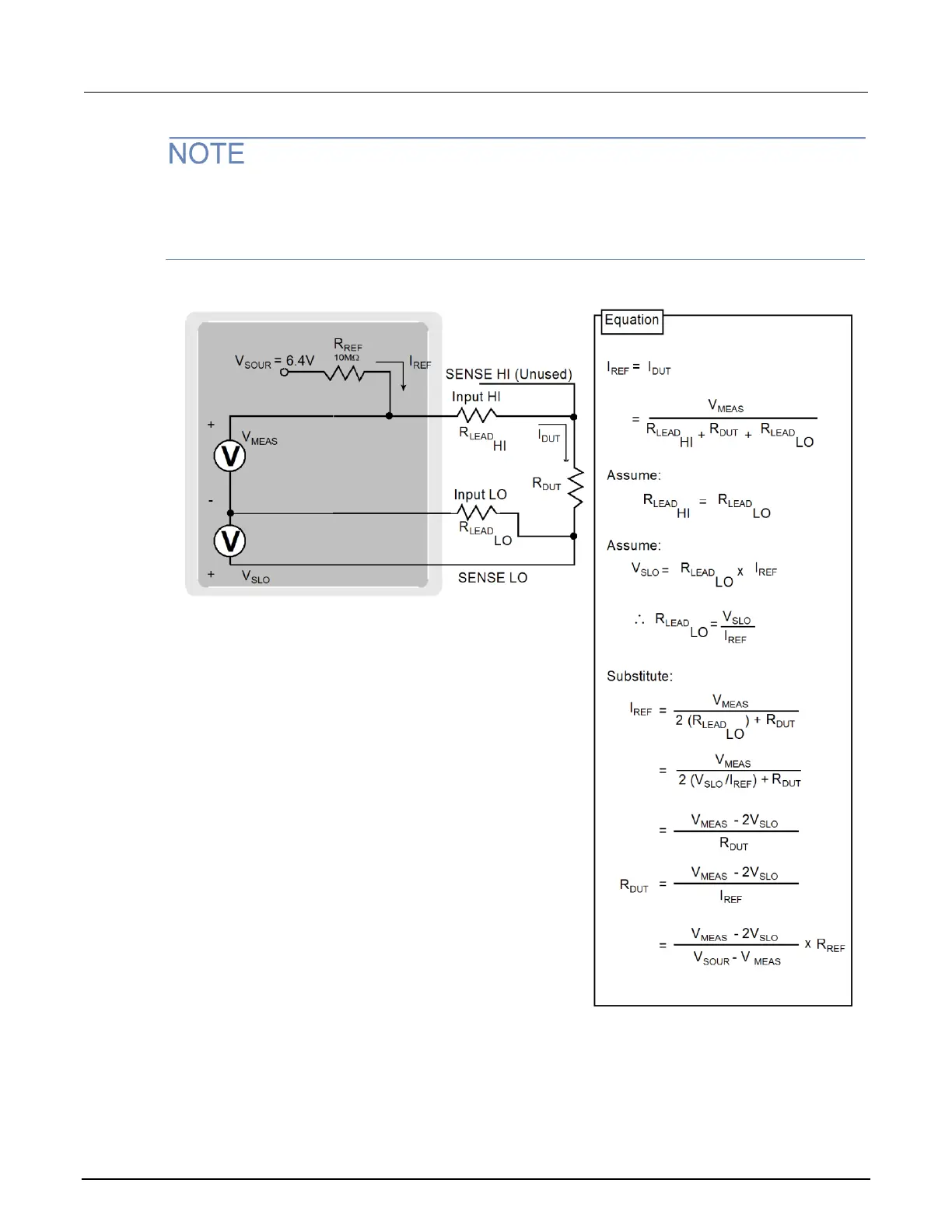

Figure
111
: Four-
w
ire ratiometric method
260
262
