Appendix B: Verification and adjustment Series 3700A System Switch/Multimeter Reference Manual
B-6 3700AS-901-01 Rev. D/June 2018

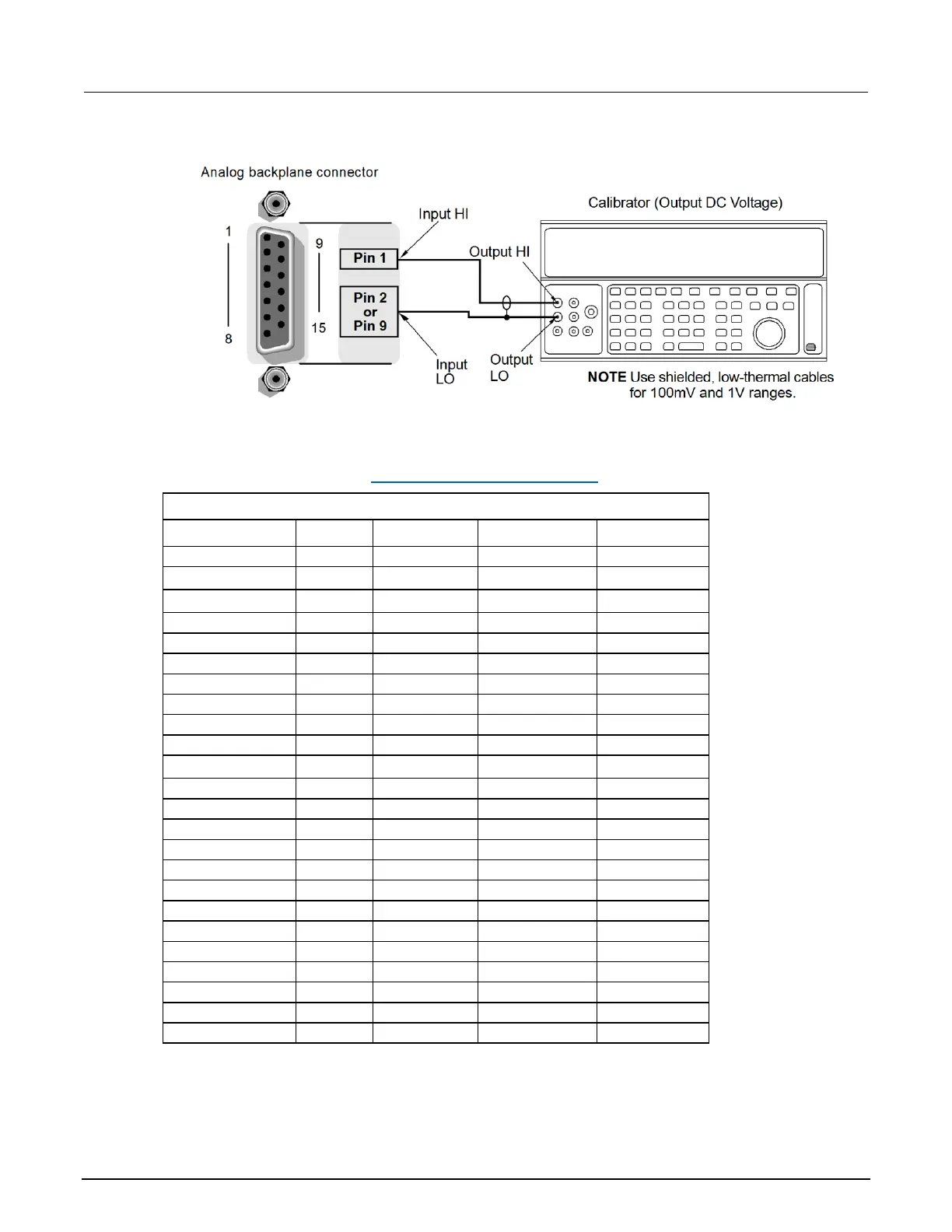

Figure 158: DC voltage verification
DC voltage verification data
Use the following values to verify the performance of the Series 3700A. Actual values depend on the
published specifications (see Example reading limit calculation (on page B-3)).
Connect to the Fluke 5700A Calibrator
Description
Range (V)
Test point (V)
Lower limit (V)
Upper limit (V)
Rel Series 3700
1.00E-01
0.00E+00
N/A
N/A
Verify DCV 100mV
1.00E-01
1.00E-01
9.999610E-02
1.000039E-01
Verify DCV 100mV
1.00E-01
5.00E-02
4.999760E-02
5.000240E-02
Verify DCV 100mV
1.00E-01
-5.00E-02
-5.000240E-02
-4.999760E-02
Verify DCV 100mV
1.00E-01
-1.00E-01
-1.000039E-01
-9.999610E-02
Rel Series 3700
1.00E+00
0.00E+00
N/A
N/A
Verify DCV 1V
1.00E+00
1.00E+00
9.999680E-01
1.000032E+00
Verify DCV 1V
1.00E+00
5.00E-01
4.999830E-01
5.000170E-01
Verify DCV 1V
1.00E+00
-5.00E-01
-5.000170E-01
-4.999830E-01
Verify DCV 1V
1.00E+00
-1.00E+00
-1.000032E+00
-9.999680E-01
Verify DCV 10V
1.00E+01
1.00E+01
9.999730E+00
1.000027E+01
Verify DCV 10V
1.00E+01
5.00E+00
4.999855E+00
5.000145E+00
Verify DCV 10V
1.00E+01
0.00E+00
-2.000000E-05
2.000000E-05
Verify DCV 10V
1.00E+01
-5.00E+00
-5.000145E+00
-4.999855E+00
Verify DCV 10V
1.00E+01
-1.00E+01
-1.000027E+01
-9.999730E+00
Verify DCV 100V
1.00E+02
1.00E+02
9.999540E+01
1.000046E+02
Verify DCV 100V
1.00E+02
5.00E+01
4.999740E+01
5.000260E+01
Verify DCV 100V
1.00E+02
0.00E+00
-6.000000E-04
6.000000E-04
Verify DCV 100V
1.00E+02
-5.00E+01
-5.000260E+01
-4.999740E+01
Verify DCV 100V
1.00E+02
-1.00E+02
-1.000046E+02
-9.999540E+01
