Keithley DMM7510 Calibration Manual

Section
2: Performance verification Model DMM7510 7½ Digit Graphical Sampling Multimeter
Calibration Manual
2-26 DMM7510-905-01 Rev. A / April 2015

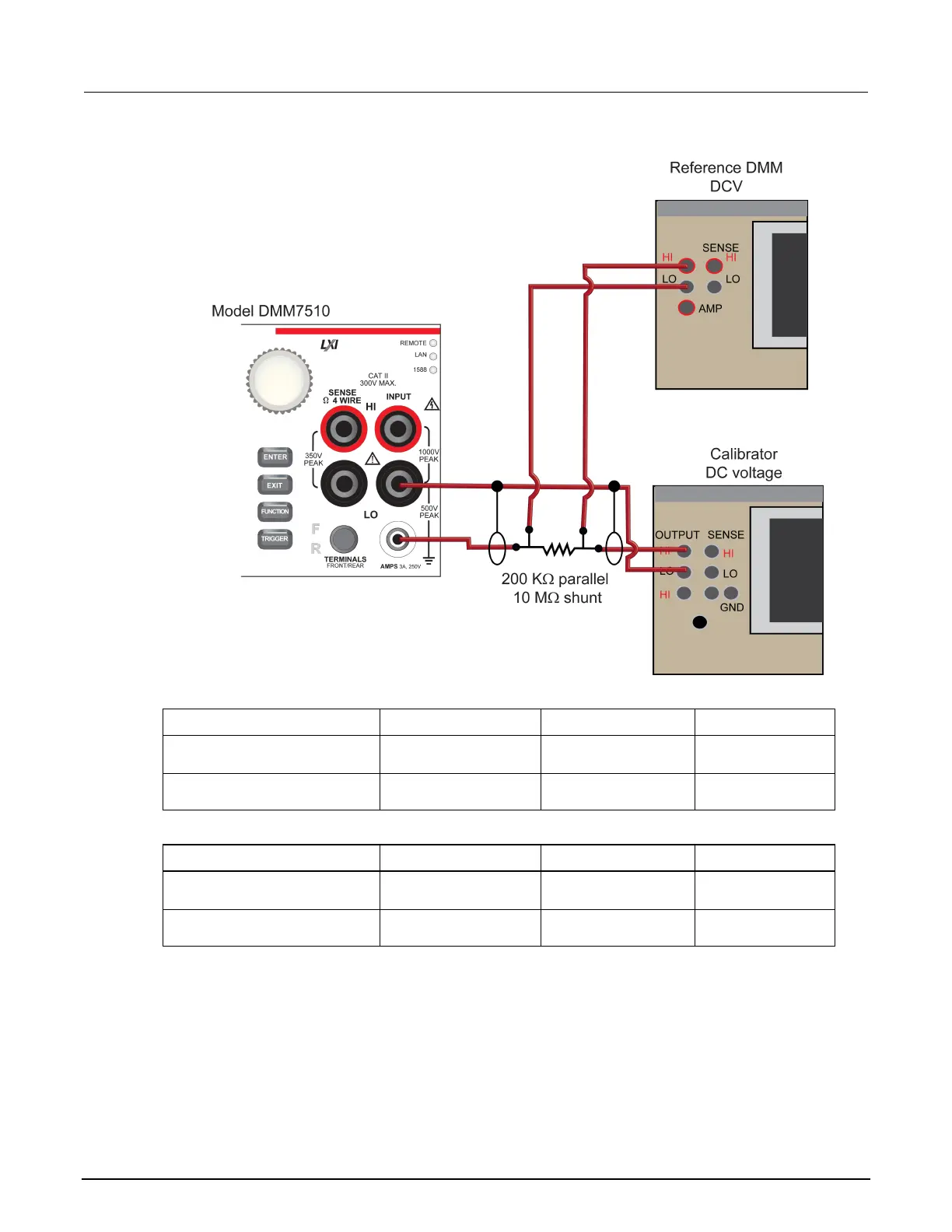

10 µA and 100 µA verification connections
Verify the analog trigger current 10 µA range
Description Verification point Lower limit Upper limit
Measure or Digitize
50 % scale rising
5.0000E-06
4.90E-06
5.10E-06
Measure or Digitize
50 % scale falling
-5.0000E-06
-5.10E-06
-4.90E-06
Verify the analog trigger current 100 µA range
Description Verification point Lower limit Upper limit
Measure or Digitize
50 % scale rising
5.0000E-05
4.90E-05
5.10E-05
Measure or Digitize
50 % scale falling
-5.0000E-05
-5.10E-05
-4.90E-05

Keithley DMM7510 Specifications

General

Resolution	7.5 digits
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	10 µA to 10 A
Resistance Range	10 Ω to 1 GΩ
Sampling Rate	1 MS/s
Memory	27.5 million readings
Display	5 inch capacitive touchscreen
AC Voltage Accuracy	±0.06% of reading
AC Current Range	10 A
Connectivity	USB, LAN, GPIB
