Keithley DMM7510 Calibration Manual

Section
2: Performance verification Model DMM7510 7½ Digit Graphical Sampling Multimeter
Calibration Manual
2-52 DMM7510-905-01 Rev. A / April 2015
Configure Digitize DC current for the 10 µA and 100 µA ranges:
1. Set up the Model DMM7510 for digitize DC current and the range being tested. Make sure
relative offset is disabled.
2. Verify the shunt. With a shunt characterization of 200 kΩ parallel 10 MΩ reference, the DMM
typical measurement is 196.07843 kΩ.

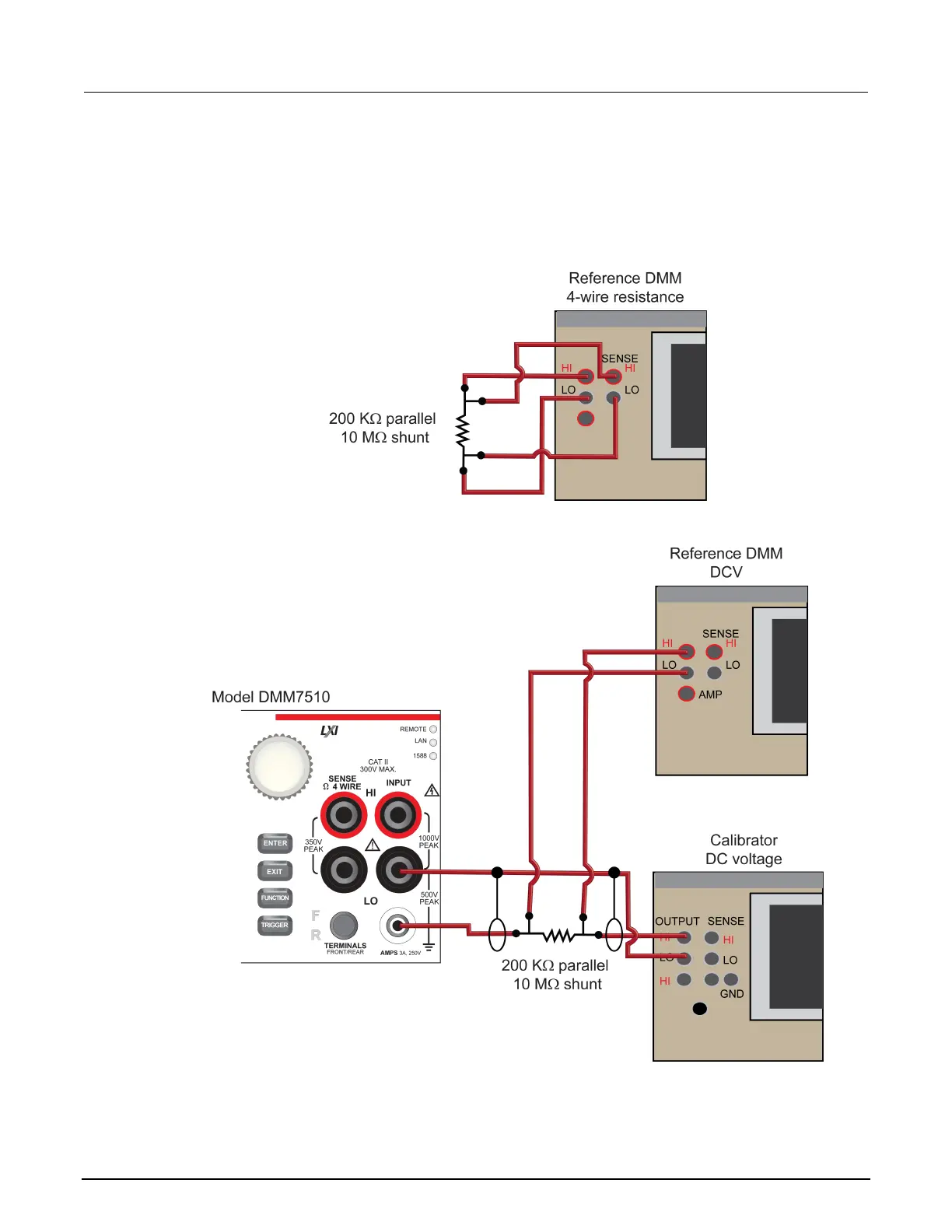

Figure 10: Connections for the 10 µA and 100 µA shunt characterization
3. Connect the calibrator, shunt, Model DMM7510, and reference DMM as shown in the following
figure.

Keithley DMM7510 Specifications

General

Resolution	7.5 digits
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	10 µA to 10 A
Resistance Range	10 Ω to 1 GΩ
Sampling Rate	1 MS/s
Memory	27.5 million readings
Display	5 inch capacitive touchscreen
AC Voltage Accuracy	±0.06% of reading
AC Current Range	10 A
Connectivity	USB, LAN, GPIB
