Keithley DMM7510 Calibration Manual

Section
2: Performance verification Model DMM7510 7½ Digit Graphical Sampling Multimeter Calibr
ation Manual
2-60 DMM7510-905-01 Rev. A / April 2015

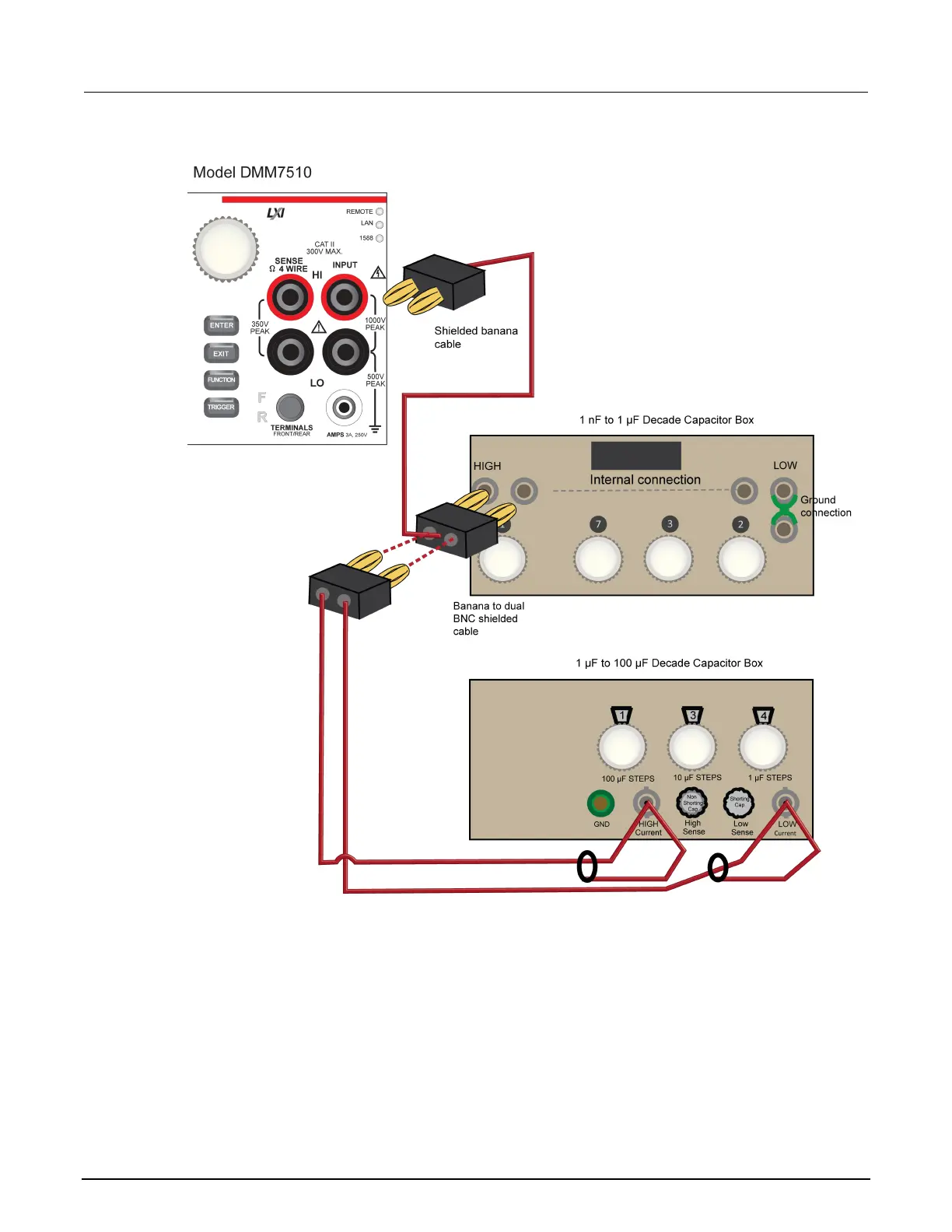

Figure 12: Capacitance verification connections
10. Verify capacitance following the verification points and accuracies from the table below.

Keithley DMM7510 Specifications

General

Resolution	7.5 digits
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	10 µA to 10 A
Resistance Range	10 Ω to 1 GΩ
Sampling Rate	1 MS/s
Memory	27.5 million readings
Display	5 inch capacitive touchscreen
AC Voltage Accuracy	±0.06% of reading
AC Current Range	10 A
Connectivity	USB, LAN, GPIB
