2400 Series SourceMeter

User’s Manual Specifications A-9

Case III: Auto-Zero disabled and measuring one function

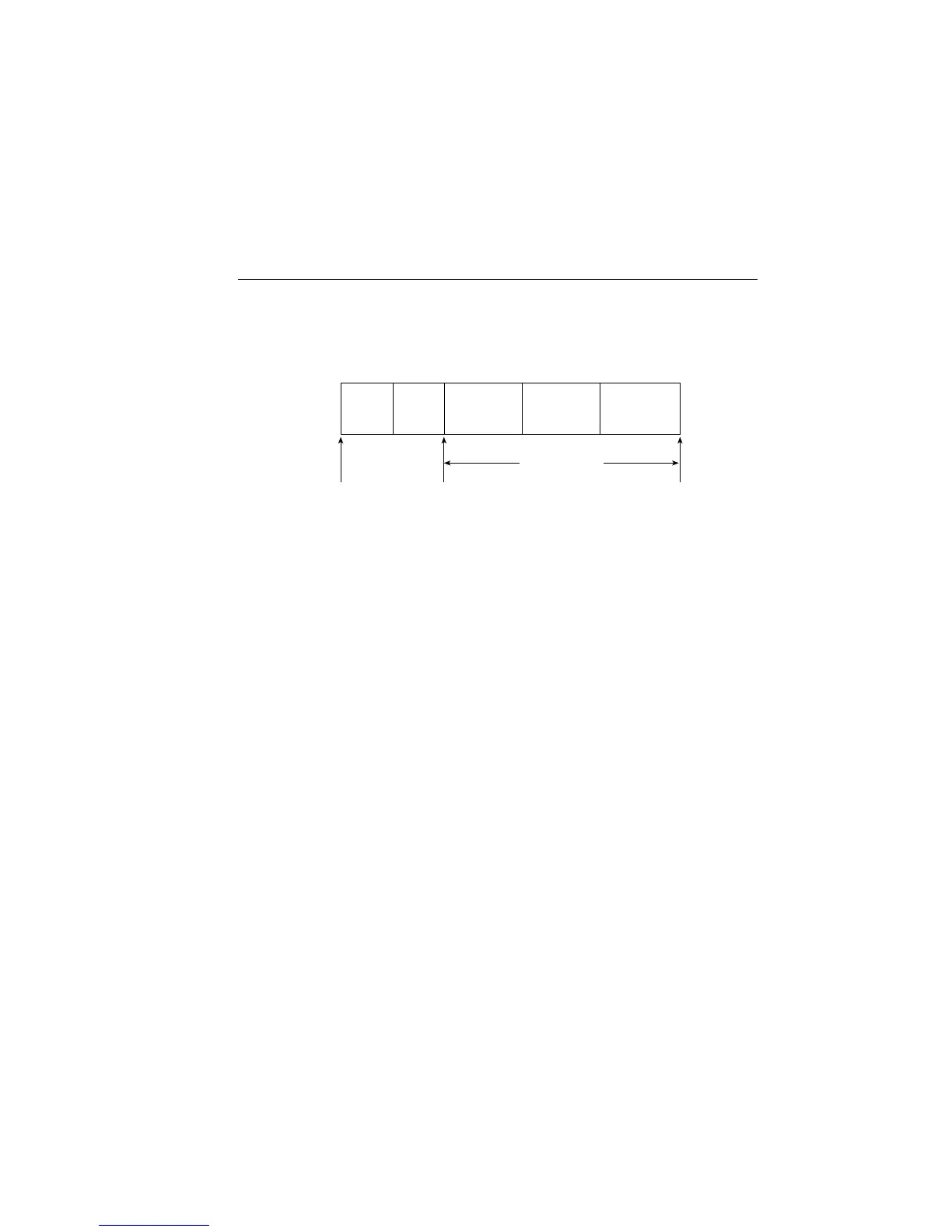

Figure A-3

Case III timing diagram

Trigger Latency: 225µsec max

Source Conﬁguration: 50µsec max

A/D Conversion: [NPLC Setting × (1 / power line frequency)] + 185µsec

Firmware Overhead: 300µsec for Source V

640µsec for Source I

Source On Time ≅ Source Conﬁguration + Source Delay + A/D Conversion + Firmware

Overhead

Example: Source Delay = 0

NPLC Setting = 0.08 PLC

Power Line Frequency = 60Hz

Source On Time ≅ 50µsec + 0 + [(0.08 × 1/60) + 185µsec] + 40µsec

≅ 1.85msec for Source V

≅ 2.2msec for Source I

Trigger

Event

Source

Source On Time

Source

Off

Trigger

Delay

Trigger

Latency

Source

Configuration

Source

Delay

A/D

Conversion

(current signal

phase)
