A-10 Specifications 2400 Series SourceMeter

User’s Manual

Case IV: Auto-Zero disabled and all measurements disabled

Figure A-4

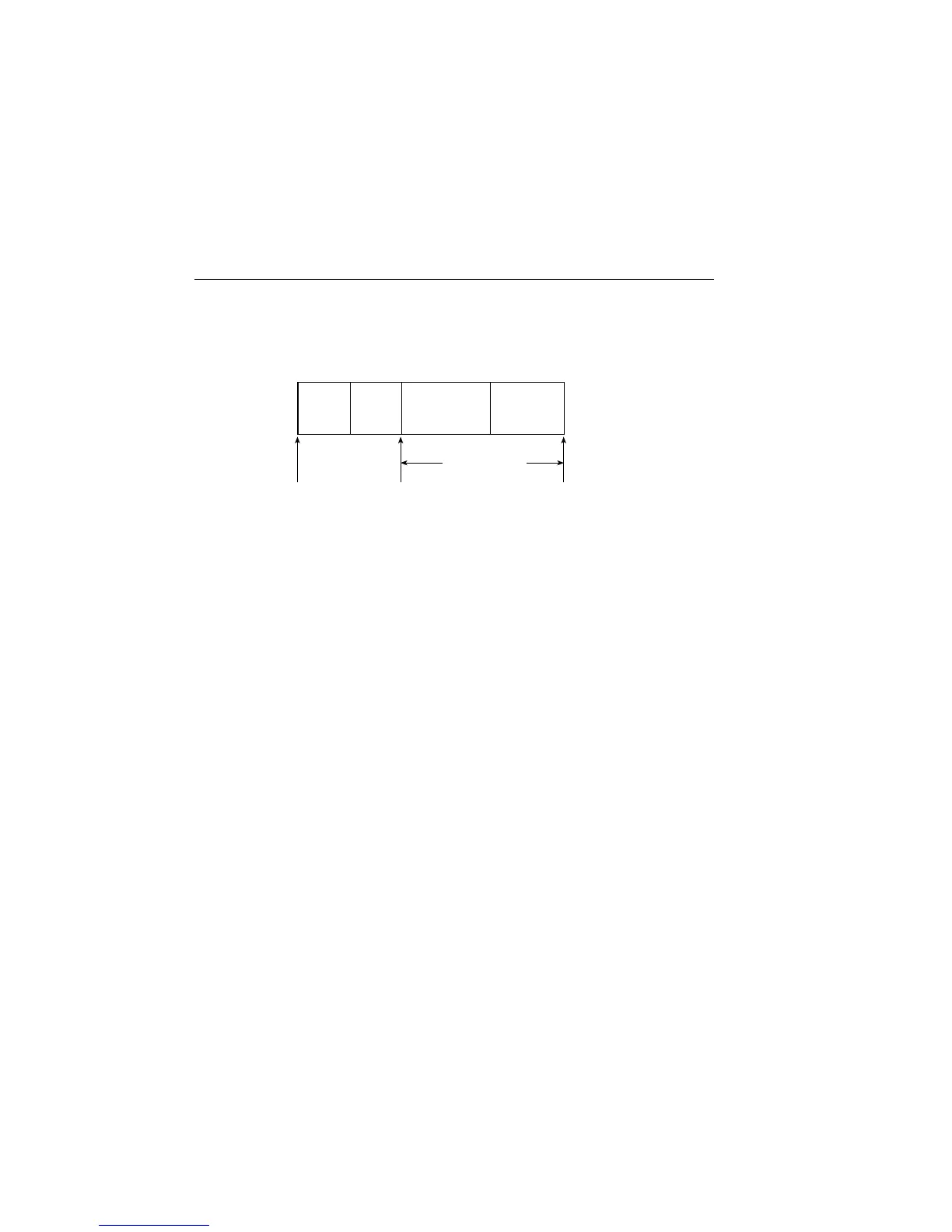

Case IV timing diagram

Trigger Latency: 225µsec max

Source Conﬁguration: 50µsec max

Firmware Overhead: 310µsec for Source V

590µsec for Source I

Source On Time

≅

Source Conﬁguration + Source Delay + Firmware Overhead

Example: Source Delay = 0

Source On Time

≅

50µsec + 0 + 125µsec

≅

360µsec for Source V

≅

640µsec for Source I

Trigger

Event

Source

Source On Time

Source

Off

Trigger

Delay

Trigger

Latency

Source

Configuration

Source

Delay
