1-12 Front Panel Operation Series 2600 System SourceMeters User’s Manual
2600S-900-01 Rev. A / May 2006 Return to In this section:
2. Use the DISPLAY key to cycle through the various display modes shown in
Figure 1-5 (The User State display messages are defined with specific
display commands; refer to Section 14 of the Series 2600
Reference manual.).
3. Press the MEAS key several times to display measured voltage, resis-
tance, and power. Typical values for the 10kΩ resistor are: 10.0000V,
10.0000kΩ, and 10.0000mW.
Step 7: Turn output off
When finished making measurements, turn the output off by pressing the
OUTPUT ON/OFF key. The OUTPUT indicator light will turn off.

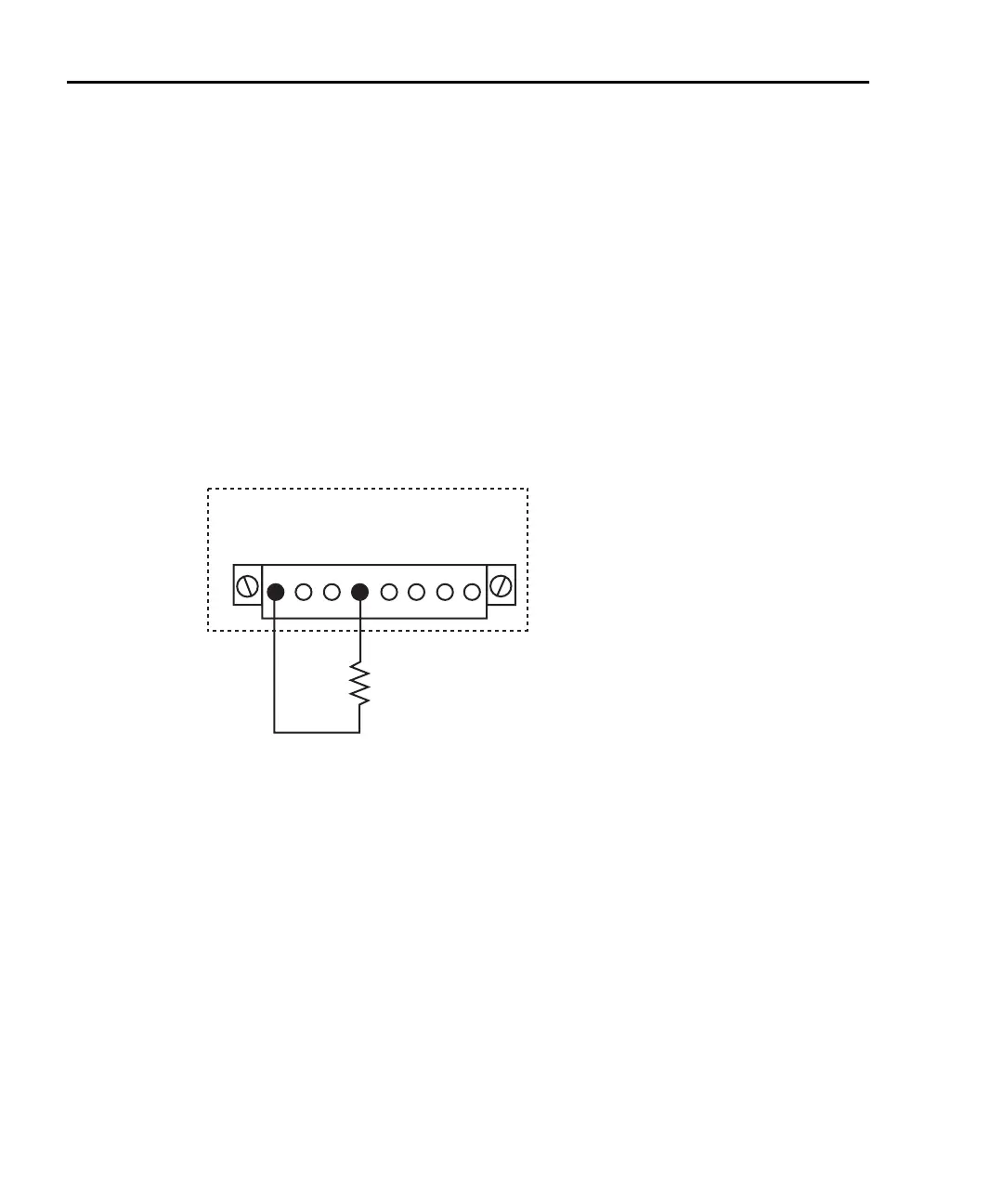

Figure 1-3
DUT connectio
LO
CHANNEL A
LO GLO HI G G G HI
SS
KEITHLEY SERIES 2600
HI
DUT 10kW Resistor
ns to 10kΩ resistor
