Keithley SourceMeter 2612 User Manual

Series 2600 System SourceMeters User’s Manual Remote Operation 2-7
Return to In this Section: 2600S-900-01 Rev. A / May 2006

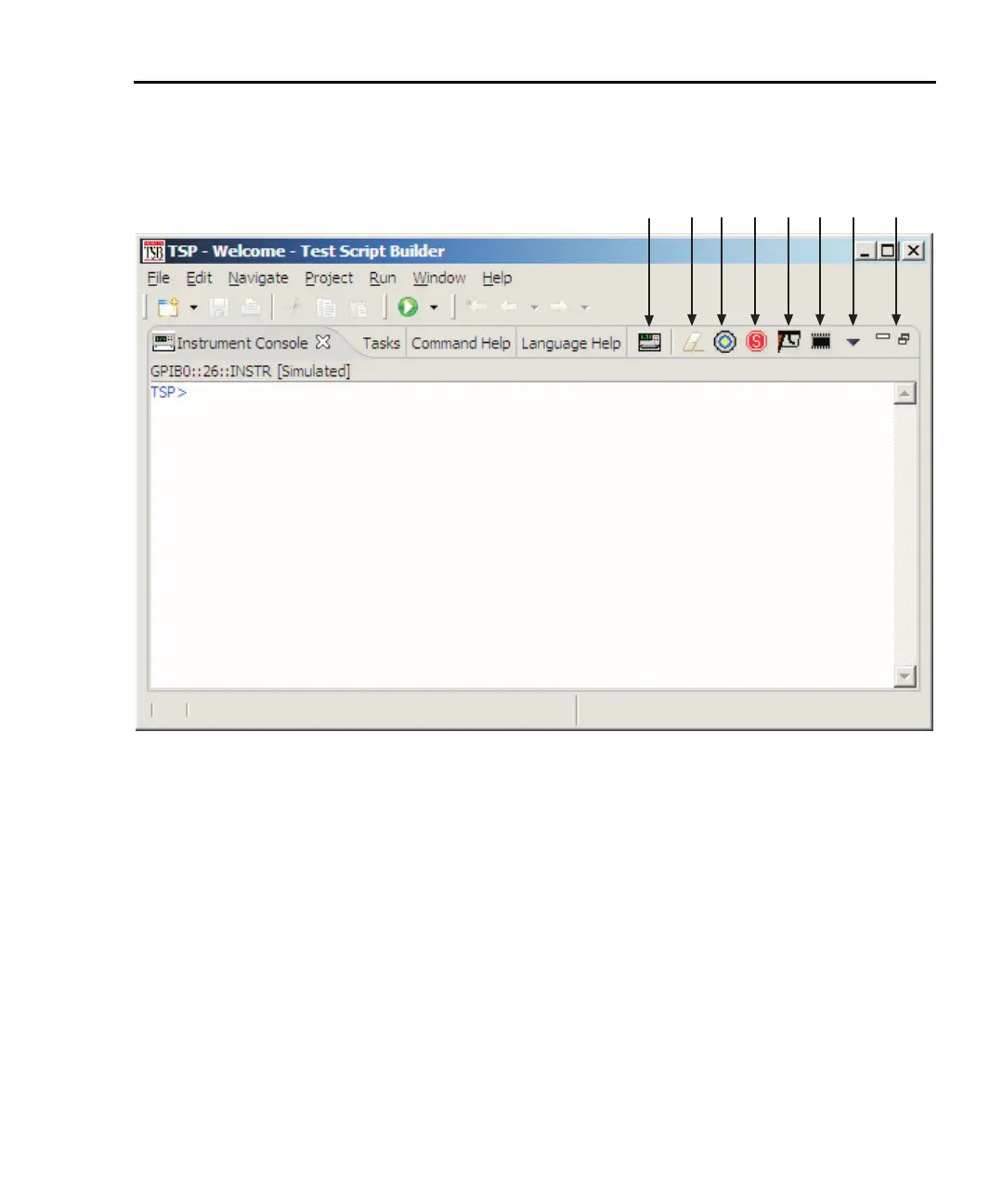

Figure 2-4
Instrument console control icons
1 2 3 4 5 6 7 8
Step 2: Open and close an instrument resource
Before you can send commands or run scripts to control the SourceMeter, you
must first open the instrument resource as follows:
1. Click on the Open Instrument icon (Refer to Figure 2-4).
2. Choose the desired instrument from the dialog box (Refer to Figure 2-5)
drop-down menu to select a communications resource:
• GPIB – At the factory, the GPIB address for the SourceMeter is set to
26. If using the GPIB interface board 0 and address 26, the resource
setting should be GPIB0::26::INSTR. Resource settings for other GPIB
board numbers and primary addresses are available from the dialog
box.
• RS-232 – Typically, the COM1 serial port of the PC is used for RS-232
communications. For COM1, use the ASRL1::INSTR resource setting.
Resource settings for other COM ports are available from the dialog
box.

Keithley SourceMeter 2612 Specifications

General

Model	2612
Type	SourceMeter
Channels	2
Measurement Resolution	6.5 digits
Power Output	100 W
Current Source Range	±3 A
Maximum Power	100W
Voltage Measurement Resolution	100 nV (6.5 digits)
Current Measurement Resolution	10pA
Interface	GPIB, USB, Ethernet

Summary

Warranty Information

Warranty Terms and Limitations

Details product warranty coverage, duration, and conditions for validity.

Safety Precautions

User Roles and Electrical Safety

Defines user roles and essential electrical safety practices.

Front Panel Operation

Instrument Power-Up and Basic Measurements

Steps for powering up the instrument and performing initial measurements.

Using the Data Buffer

Remote Operation

Remote Interface Setup and Configuration

Test Script Builder Usage

Guide to the TSB software for creating, running, and managing scripts.

External Program Integration

Test Script Processor (TSP) Interaction

Understanding and Running Scripts

Modifying and Managing Scripts

Controlling Multiple SourceMeters (TSP-Link)

TSP-Link System Setup and Operation

Connecting, configuring, and using multiple instruments via TSP-Link.

Appendix B: Frequently Asked Questions (FAQs)

Optimizing Performance

Digital I/O and Triggering

Service Requests and Data Storage

Advanced Channel Configurations

Connecting channels in series for higher voltage and in parallel for higher current.

Contact Check Measurements
