Series 2600 System SourceMeters User’s Manual Test Script Processor Interaction 3-3
Return to In this section: 2600S-900-01 Rev. A / May 2006
2. Position the blinking cursor on the FACTORY or USER menu item and press
ENTER (or the Rotary Knob). Keep in mind that the Series 2600 is shipped
with no user scripts loaded.
3. Position the blinking cursor on the test to be run, and then press ENTER.
4. Press the RUN key to start the test.
5. Enter required test parameters using the front panel controls.
Reading the buffer – Test data is stored in a buffer. Refer to in Section 1 of this
manual, “
How do I use the buffer?” for details on recalling test data.
How do I interact with scripts using Test Script
Builder?
Reference Refer to “Using the Test Script Builder” in Section 2 of the Series
2600 Reference Manual for details on the Test Script Builder.
The following function for factory script “KIGeneral” is stored in the non-volatile
memory of the Series 2600:
PulseVMeasureI(smu, bias, level, ton, toff, points)
The above function performs a specified number of pulse V, measure I cycles:
• Sets the smu to output bias volts and dwell for ton seconds.
• Sets the smu to output level volts and dwell for ton seconds.
• Performs current measurement with the source at level volts.
• Sets the smu to output bias volts for toff seconds.
• Repeats the above sequence for points pulse-measure cycles.

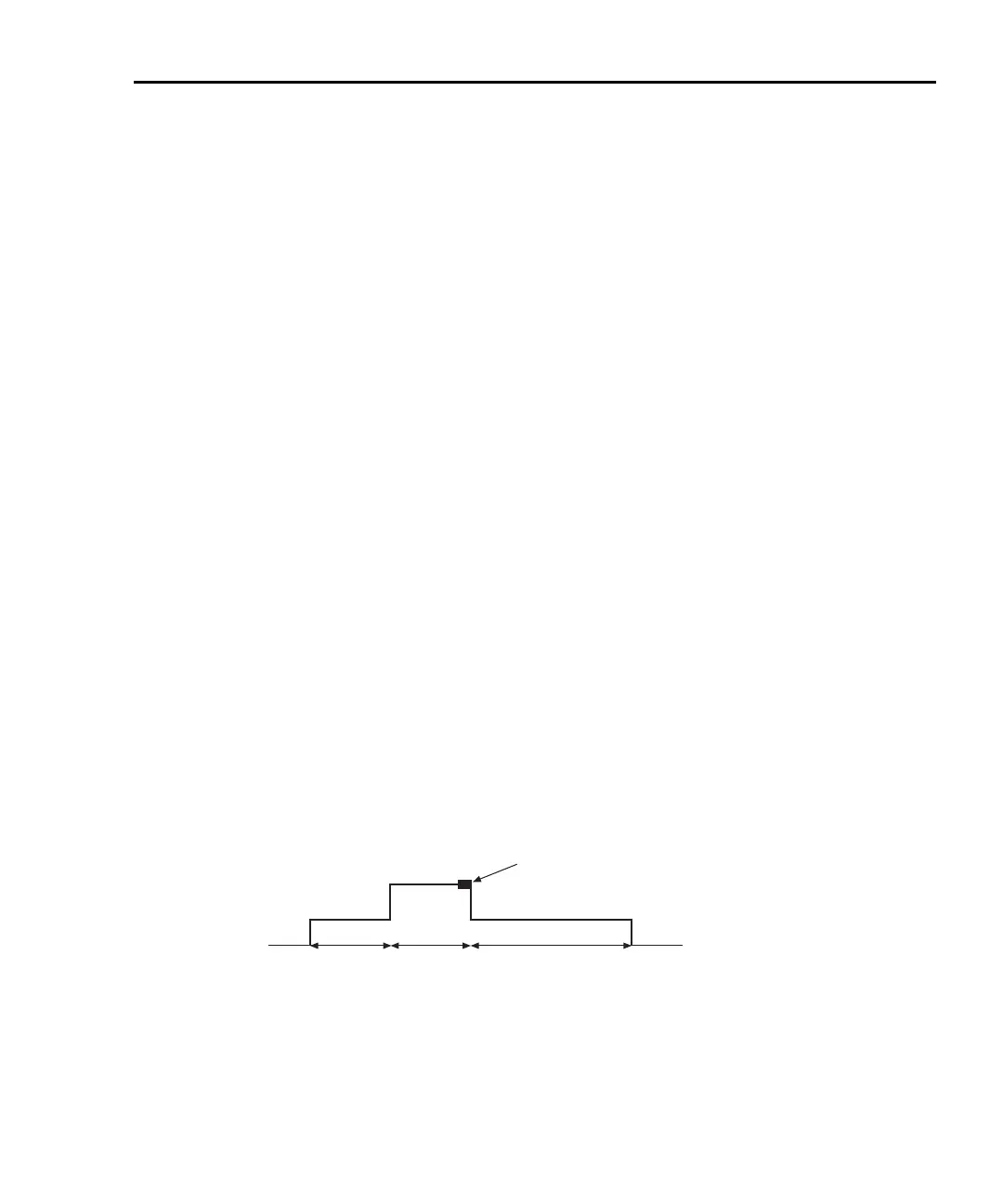

Figure 3-1 shows one pulse-measure cycle for the function.
Figure 3-1
Pulse-measure cycle for the
level
bias
ton
bias
ton toff
Current measurement
PulseVMeasureI function
