9. Overheating indicator
Under normal working conditions the overheating indicator is not visible. However, should
the machine exceed its working duty cycle, welding will cease and the thermometer symbol
will illuminate indicating that the machine has overheated. The cooling fans of the machine
will continue to operate. When normal operating temperature is regained, the machine will
reset and welding can continue. The overheating indicator will no longer be visible.
10. WireLine service indicator
Under normal working conditions, the WireLine service indicator is not visible. However, if
the welding gun contact tip or liner becomes dirty and blocked or the wire feed mechanism
needs routine maintenance or the friction plates in the spool brake need adjustment or
maintenance, the Spanner service symbol will illuminate indicating that maintenance is
required. Welding is not prevented when the WireLine service symbol is active.

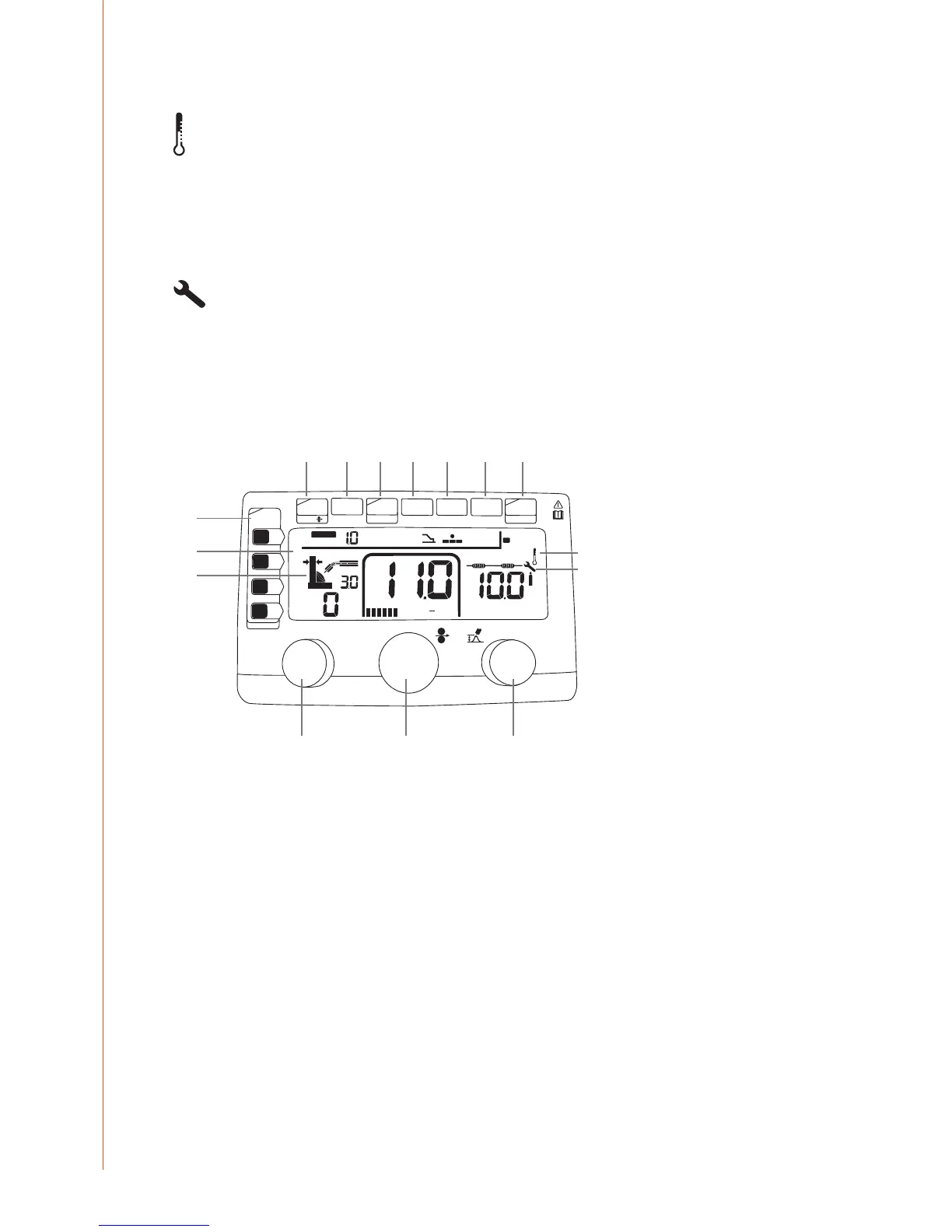

5.2 Adaptive control panel
1. 2. 3.
4.11. 5.12. 6.13. 14.
7.
15.
16.
8.
9.
10.
Models featuring the adaptive (A) control panel oer the following control functions.
1. Dynamics control
2. Control knob for wire feed speed or power (adaptive mode)
3. Control knob for voltage or arc length (adaptive mode)
4. Timer button for spot welding and cycle arc welding
5. Selection of 2T/4T gun operating mode
6. Selection for MANUAL, AUTOMATIC or HOT SPOT function
7. Parameter display
8. Overheating indicator
9. WireLine service indicator
10. Post gas symbol
11. Selection for materials type or display of amperes/wire feed speed (adaptive mode)
12. Selection for ller wire diameter (adaptive mode)
13. Selection for shielding gas or post gas function (adaptive mode)
14. Selection of crater ll function (adaptive mode)
15. Selection for memory function
16. Material thickness and weld shape display
Kempact 251R, 253R, 323R, 181A, 251A, 253A, 323A
