4.8 Changing the feed rolls
Kempact RA machines are factory tted with wire feed rolls as part of the delivery packages.
However, it may be necessary to select alternative feed rolls to suit dierent ller wire sizes
used. So you may occasionally need to replace the feed rolls. Kemppi feed rolls and gun liners
are colour-coded in order to make identication easy.
1. 2.
5.
3.
4.

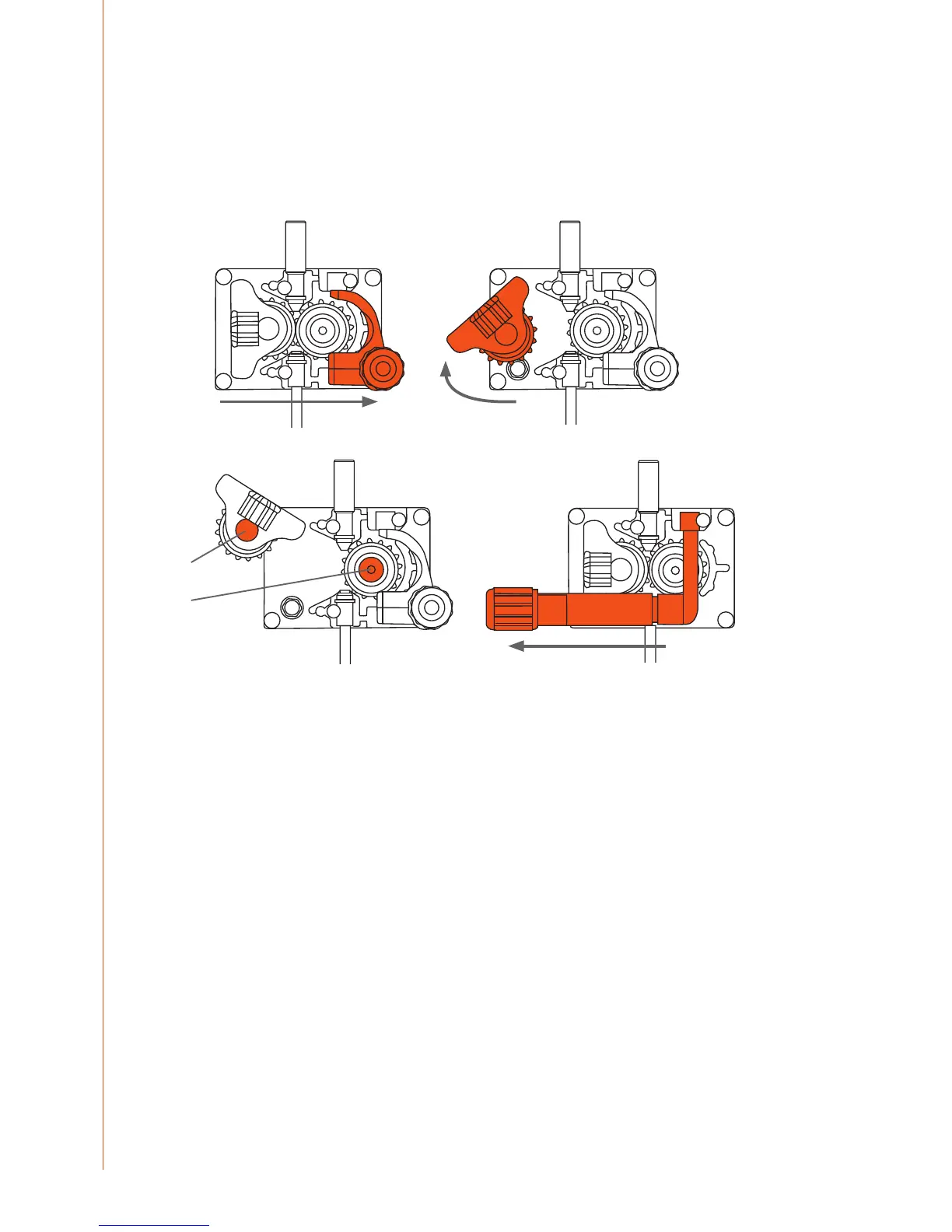

To change the feed rolls:
1. Pull and release the pressure tension arm.
2. Lift the upper feed roll on its pivot to the maximum open position.
3. Pull out mounting pin of the upper feed pressure roll and replace the roll with a new one.
4. Open the locking screw of the lower feed roll and replace the roll with a new one.
5. Return the upper pressure feed roll to its down position and replace the pressure tension
arm.
6. Adjust the pressure tension as instructed in the earlier section.
