Kemppi Kempact Pulse 3000 Service Manual

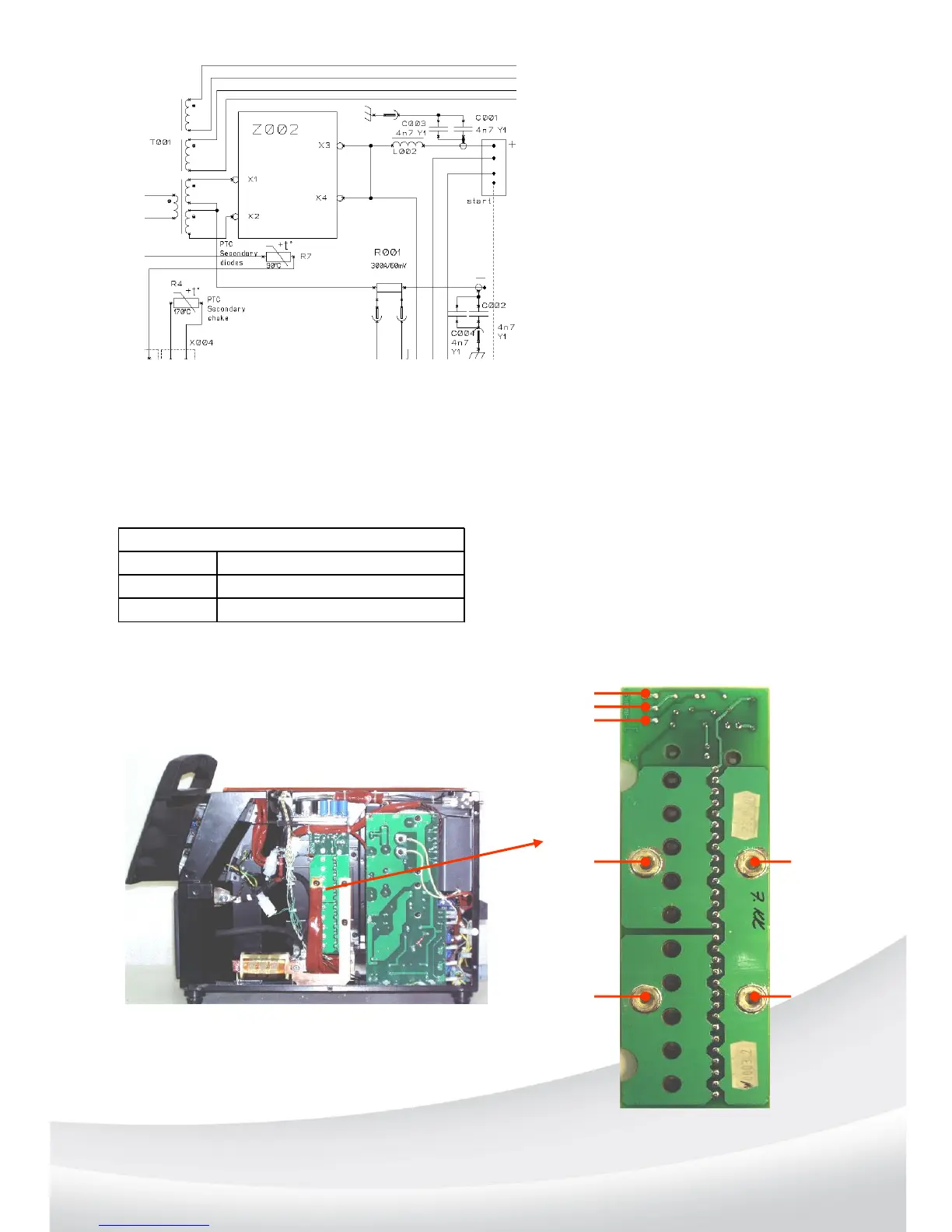

Secondary diode card Z002 functions / connectors
The secondary diode card Z002 has these operational blocks:
• Secondary rectifying
• Machine size coding
• Overvoltage protections
• Dampening circuits
Connectors
X1 and X2 Main transformer secondary
X3 and X4 Euro-connector
X5…X7 Machine size coding
Secondary diode card Z002 layout
X5
X6
X7
X2
X1 X3
X4
13
