Kemppi Kempact Pulse 3000 Service Manual

Connectors
X14/7-9 Machine size coding
X14/10 GND
X14/11 Empty
X14/12 Empty
X15/1 + 24 V / Solenoid valve
X15/2 Empty
X15/3 Empty
X15/4 Solenoid valve
X15/5,6 Gun switch
X16/1 + 15 V
X16/2 GND
X16/3 GND
X16/4 Empty
X16/5 Empty
X16/6 Wire feed on/off-control
X16/7 Cooling unit alarm
X16/8 Wf-motor current measuring
X16/9 + 24 V
X16/10 Cooling unit on/off control
X16/11 Wf-motor speed set value
X16/12 Empty

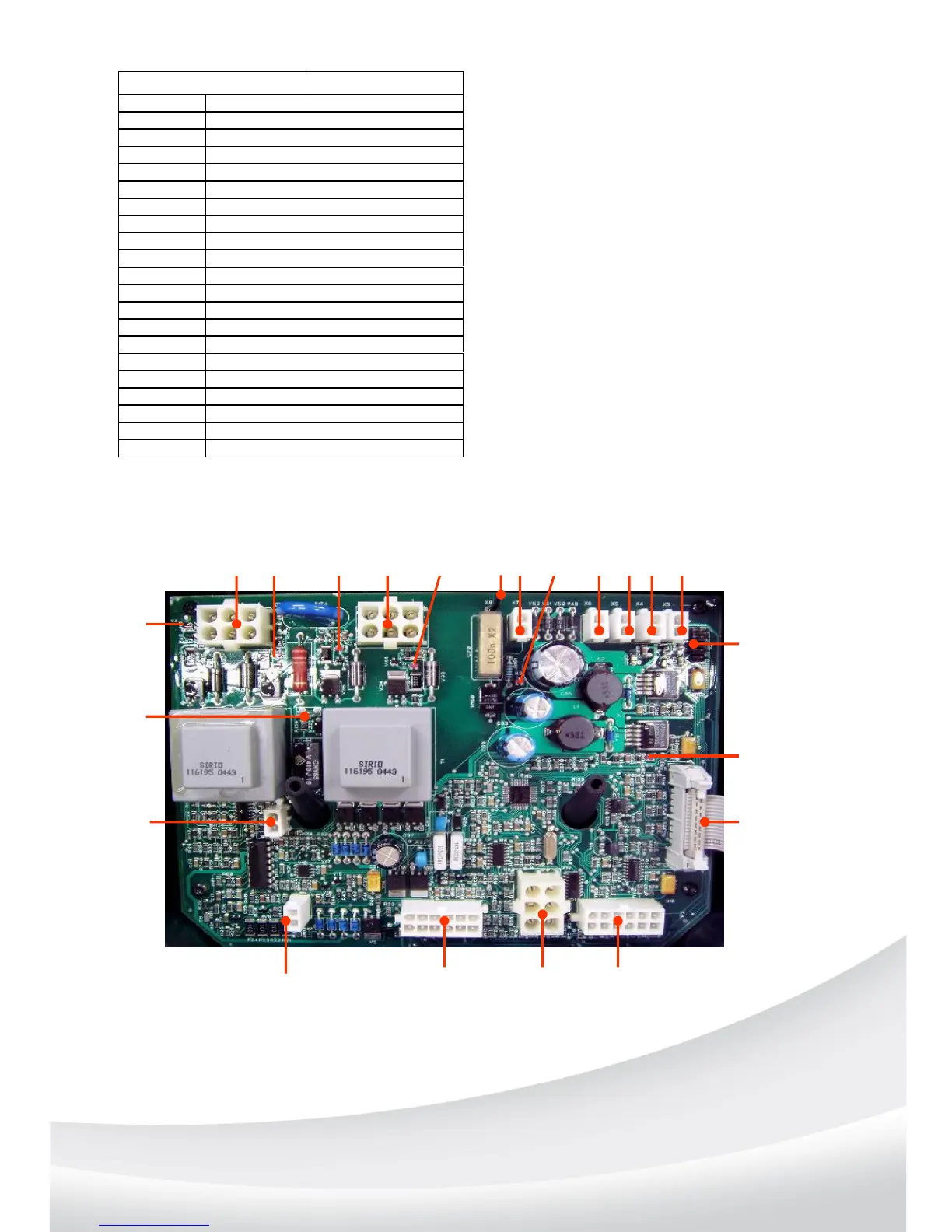

Control card A001 connectors
Control card A001 layout
LEDs:
H1 + 5V
H2 + 15V
H3…H6 Gate pulses
X13
X11
H6
X12 H5 H4 X10 H3 X5 X6 X5 X4 X3
H1
X1
X16
X2
H2
X15 X14
X8
X7
17
