Kemppi Kempomat 2500 - OPERATION AND USE OF POWER SOURCE; KEMPOMAT PANELS

EN
4. OPERATION AND USE OF POWER SOURCE

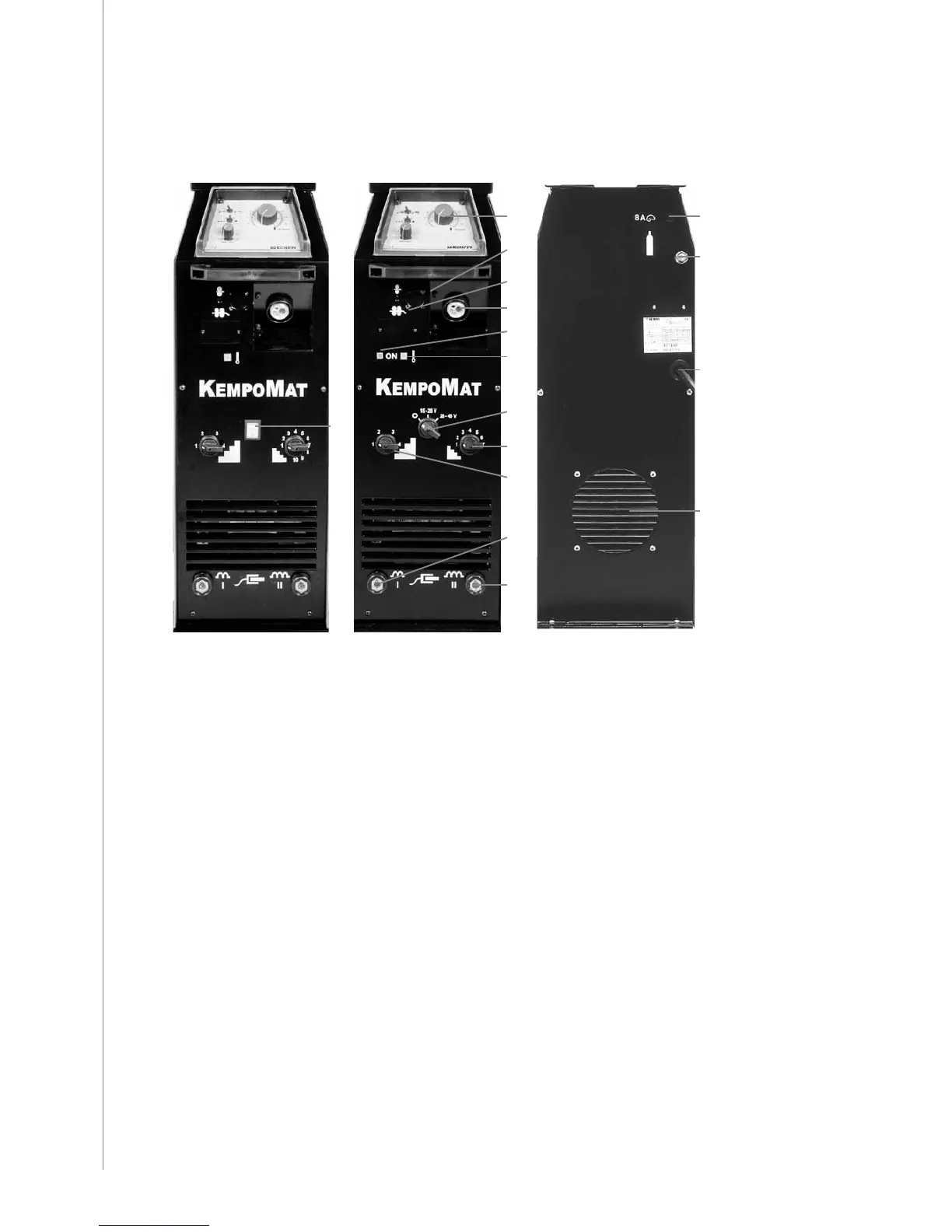

4.1 KEMPOMAT PANELS
1. 13.
14.
15.
16.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
1. Wire feed panel
2. Push-pull gun connector and switch (accessory)
3. Welding gun connector (EURO)
4. Mounting place for MSD 1 V/A metering unit (accessory)
5. Signal lamp for Kempomat 4200 main switch
6. Signal lamp for overheating (power source)
7. Kempomat 3200 main switch
8. Kempomat 4200 main switch and voltage selecting range
9. Voltage selecting switch (ne grading)
10. Voltage selecting switch (coarse grading)
11. I Return current dix-connector (coarser arc)
12. II Return current dix-connector (softer arc)
13. Control fuse (8 A delayed)
14. Shielding gas connector
15. Gennemføring til netkabel
16. Inlet of mains cable
12
Kempomat 2500, 3200, 4200 / © Kemppi Oy / 1117
