Kemppi Kempomat 2500 User Manual

EN
3. USE OF WIREFEEDER

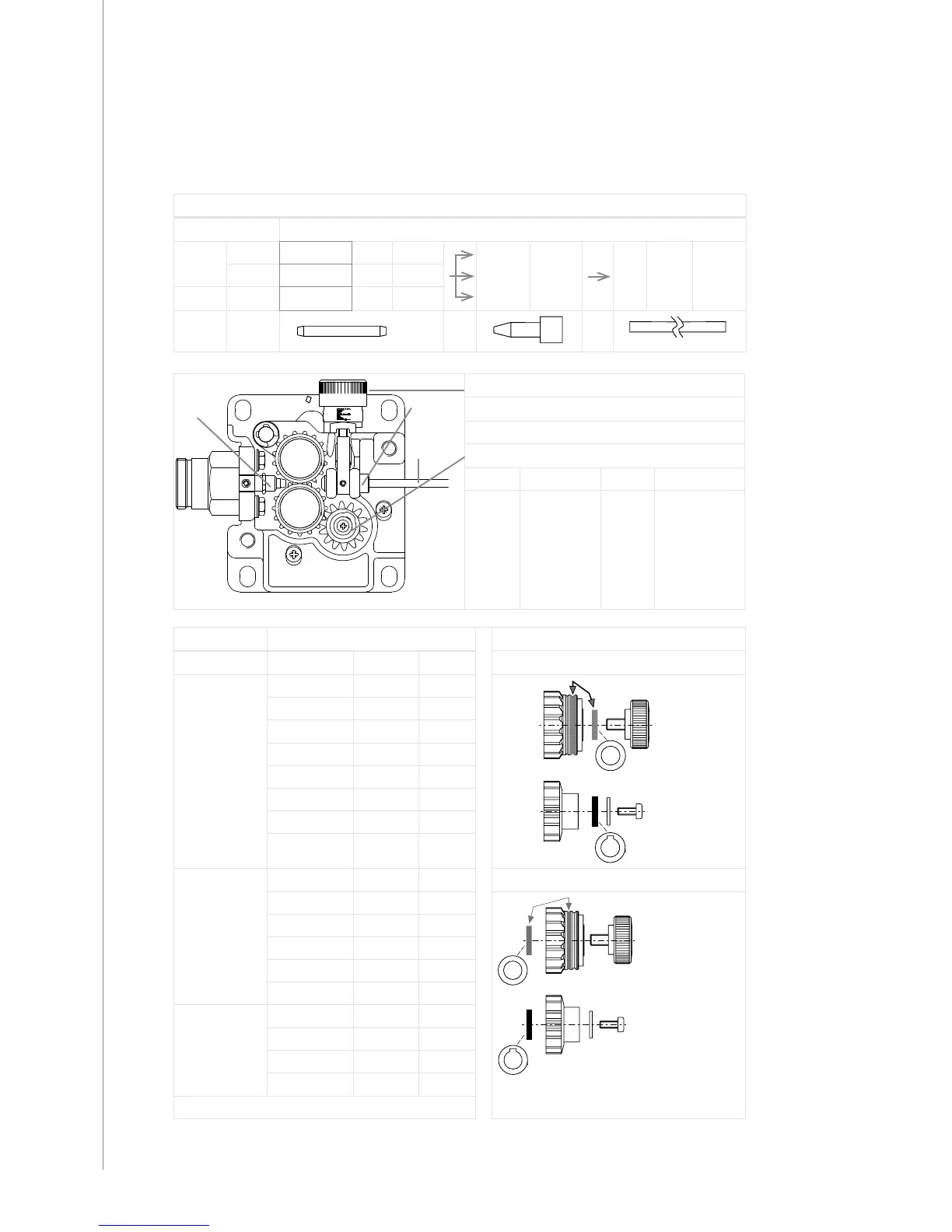

3.1 PARTS OF WIRE FEED MECHANISM
Kempomat 2500
Wire guide tubes for 2-roll wire feed mechanism
Wire ø mm Wire guide tube ø mm
Fe, Mc,
Fc
0,6 ... 0,8 White 1,0 3134140 brass 4285900 1,8 plastic 4102283
0,9 ... 1,6 Orange 2,0 3133700
Ss, Al
0,8 ... 1,6 Silver 2,5 3134290
A.
B.
C.
A. B.
C.
Pressure adjustment
Gear wheel, 2-roll wire feed mechanism
ø 28 mm (0–18 m/min) 4265240 muovi
ø 28 mm (0–18 m/min) 4287860 teräs
Feed rolls 2-roll (2500) 2500, 3200, 4200
Colour ø mm
Feed roll groove selection
Fe, Ss, Al
Plain V-groove
White 0.6/0.8 3133810
White 0.8/0.8 (L) 3143180
Red 3133210
Red 1.0/1.0 (L) 3138650
Orange 1.2/1.2 (L) 3137390
Yellow 1.4-1.6 3133820
Yellow 1.6/1.6 (L) 3141120
Fe, Fc, Mc
Knurled
V-groove
Red 1.0/1.2 3133940 Transfer of gear wheel selector plate
Orange 1.2/1.2 (L) 3137380
Yellow 1.4-1.6 3133990
Yellow 1.6/1.6 (L) 3141130
Fe, Fc, Mc,
Ss, Al
Trapezoid
groove
Orange 1.2/1.2 (L) 3142210
Brown 1.4/1.4 (L) 3142220
Yellow 1.6/1.6 (L) 3142200
(L) = Fitted with ball bearings
6
Kempomat 2500, 3200, 4200 / © Kemppi Oy / 1117
