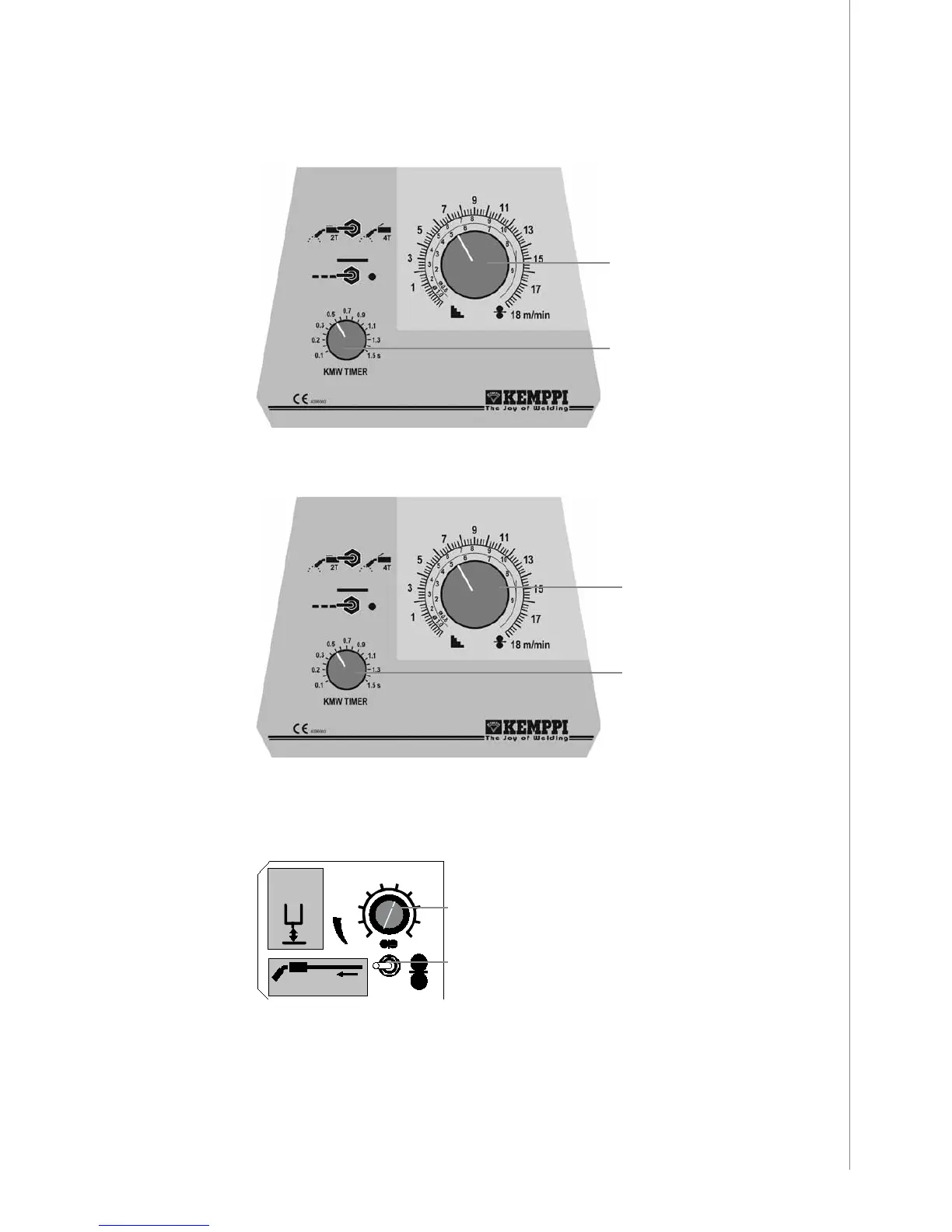

4.2 WIRE FEED PANEL
Kempomat 2500
1.
2.
1. Adjustment potentiometer for wire feed
2. KMW timer, continuous/hold, continuous/spot/cycle arc, welding spot or cycle time
Kempomat 3200, 4200
1.
2.
1. Adjustment potentiometer for wire feed
2. KMW timer, continuous/hold, continuous/spot/cycle arc welding, spot or cycle time
4.3 WIRE FEEDER UNIT
SS
Fe
ø
Al
1
1 0
8
6
5
4
3
2
7
9
BURN-
BACK
WIRE INCH
1.
2.
1. Burn back time (according to f iller material and wire feed)
2. Wire inch switch (wire feed into gun)
