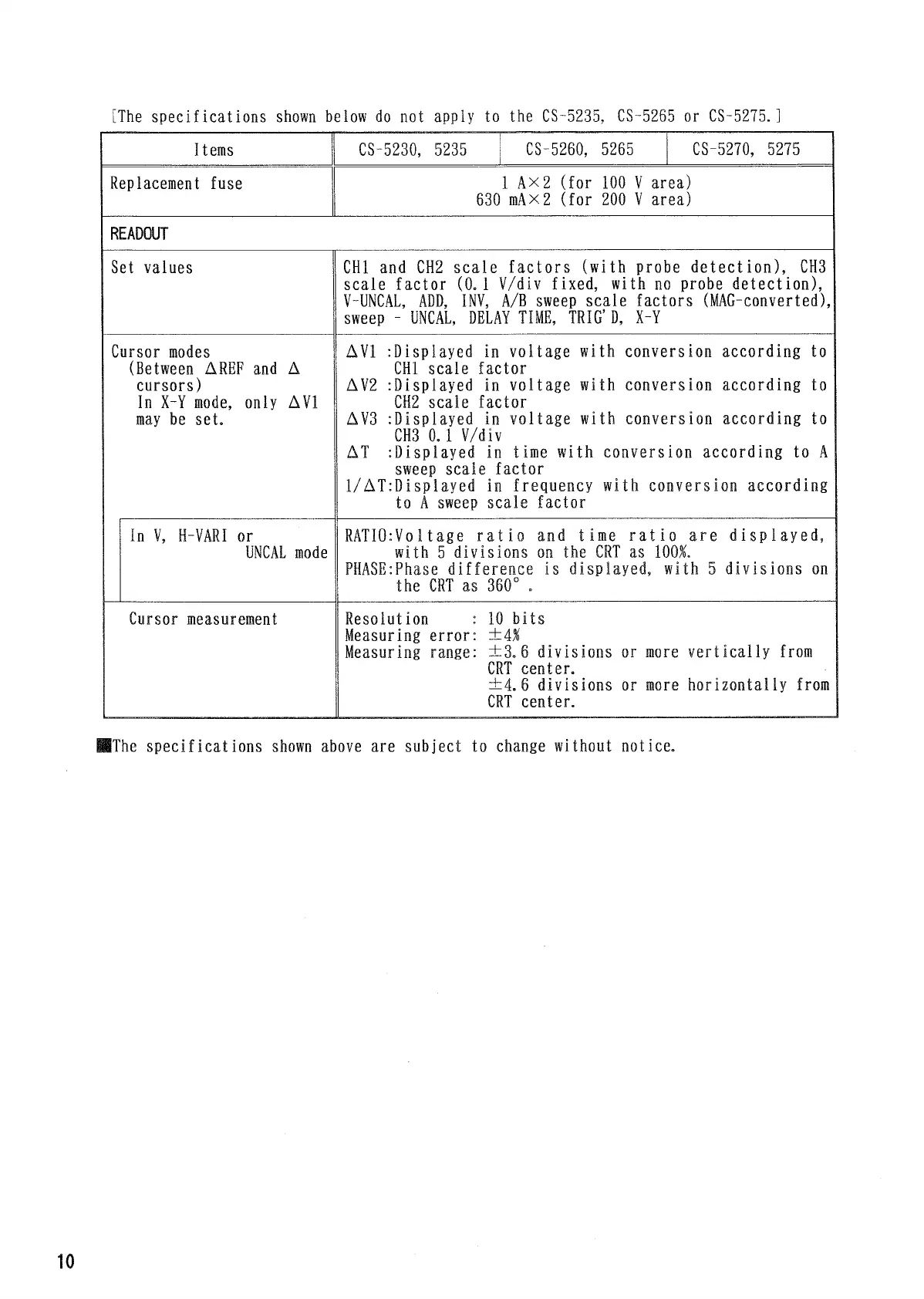

[The specifications shown below do not apply to the CS-5235, CS-5265 or CS-5275.]
Items
CS-5230, 5235
CS-5260, 5285
CS-5270, 5275
Replacement fuse
1 Ax2 (for 100 V area)
830 mAx2 (for 200 V area)
READOUT
Set values
CHI and CH2 scale factors (with probe detect ion), CH3
scale factor (0.1 V/div fixed, with no probe detection),
V-UNCAL, ADD, INV, A/B sweep scale factors (MAG-converted),
sweep - UNCAL, DELAY TIME, TRIG' D, X-Y
Cursor modes
(Between AREF and A
cursors)
In X-Y mode, only AVI
may be set.
AVI displayed in voltage with conversion according to
CHI scale factor
AV2 displayed in voltage with conversion according to
CH2 scale factor
AV3 displayed in voltage with conversion according to
CH3 0.1 V/div
AT :Displayed in time with conversion according to A
sweep scale factor
l/AT:Displayed in frequency with conversion according
to A sweep scale factor
In V, H-VARI or
UNCAL mode
RATI0:Vo 11age ratio and time ratio are disp1ayed,
with 5 divisions on the CRT as 1001
PHASE:Phase difference is displayed, with 5 divisions on
the CRT as 360° .
Cursor measurement
Resolution : 10 bits
Measuring error: ±4%
Measuring range: ±3. 6 divisions or more vertically from i
CRT center.
±4. 6 divisions or more horizontally from
CRT center.
