Kenwood CS-5200 Series User Manual

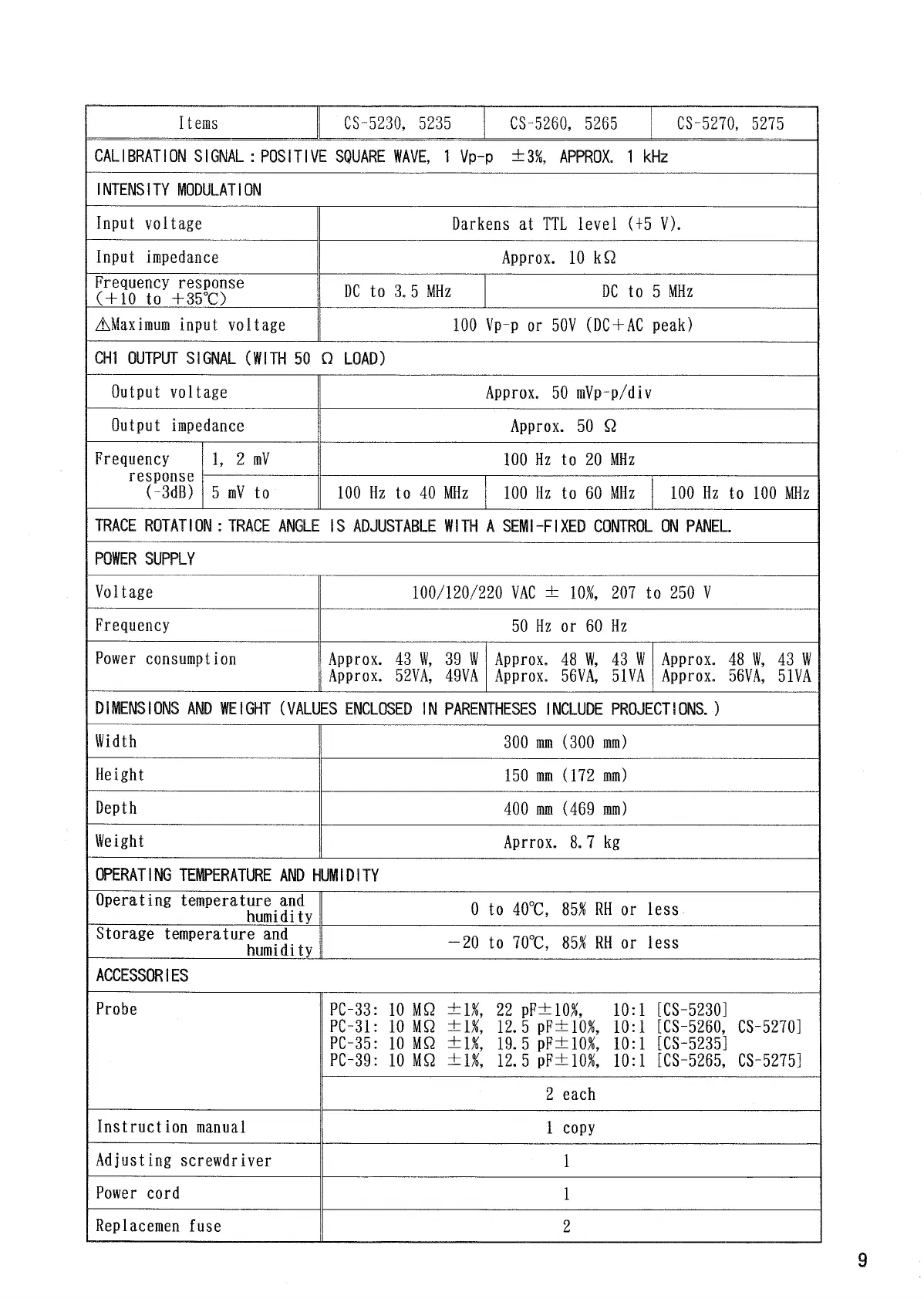

Items CS-5230, 5235
CS-5260, 5265 CS-5270, 5275
CALIBRATION SIGNAL : POSITIVE SQUARE WAVE, 1 Vp-p ±3%, APPROX. 1 kHz
INTENSITY MODULATION
Input voltage
Darkens at TTL level (+5 V).
Input impedance
Approx. 10 kQ
Frequency response
( + 10 to +35°C)
DC to 3.5 MHz DC to 5 MHz
AMaximum input voltage
100 Vp-p or 50V (DC + AC peak)
CHI OUTPUT SIGNAL (WITH 50 Q LOAD)
Output voltage
Approx. 50 mVp-p/div
Output impedance
Approx. 50 Q
Frequency
response
(-3dB)
1, 2 mV
100 Hz to 20 MHz
Frequency
response
(-3dB) 5 mV to 100 Hz to 40 MHz
100 Hz to 60 MHz
100 Hz to 100 MHz
TRACE ROTATION : TRACE ANGLE IS ADJUSTABLE WITH A SEMI-FIXED CONTROL ON PANEL.
POWER SUPPLY
Voltage
100/120/220 VAC ± 10%, 207 to 250 V
Frequency
50 Hz or 60 Hz
Power consumption
Approx. 43 W, 39 W
Approx. 52VA, 49VA
Approx. 48 W, 43 W
Approx. 56VA, 51VA
Approx. 48 W, 43 W
Approx. 56VA, 51VA
DIMENSIONS AND WEIGHT (VALUES ENCLOSED IN PARENTHESES INCLUDE PROJECTIONS. )
Width
300 mm (300 mm)
Height
150 mm (172 mm)
Depth
400 mm (469 mm)
Weight
Aprrox. 8. 7 kg
OPERATING TEMPERATURE AND HUMIDITY
Operating temperature and
humidity
0 to 40°C, 85% RH or less
Storage temperature and
humidity
-20 to 70°C, 85% RH or less
ACCESSORIES
Probe
PC-33
PC-31
PC-35
PC-39
10 m ±1%, 22 pF±10%, 10:1 [CS-5230]
10 MQ ±1%, 12.5 pF±10%, 10:1 [CS-5260, CS-5270]
10 MQ ±1%, 19.5 pF±10%, 10:1 [CS-5235]
10 MQ ±1%, 12.5 pF±10%, 10:1 [CS-5265, CS-5275]
Probe
2 each
Instruction manual
1 copy
Adjusting screwdriver
1
Power cord
1
Replacemen fuse
2
