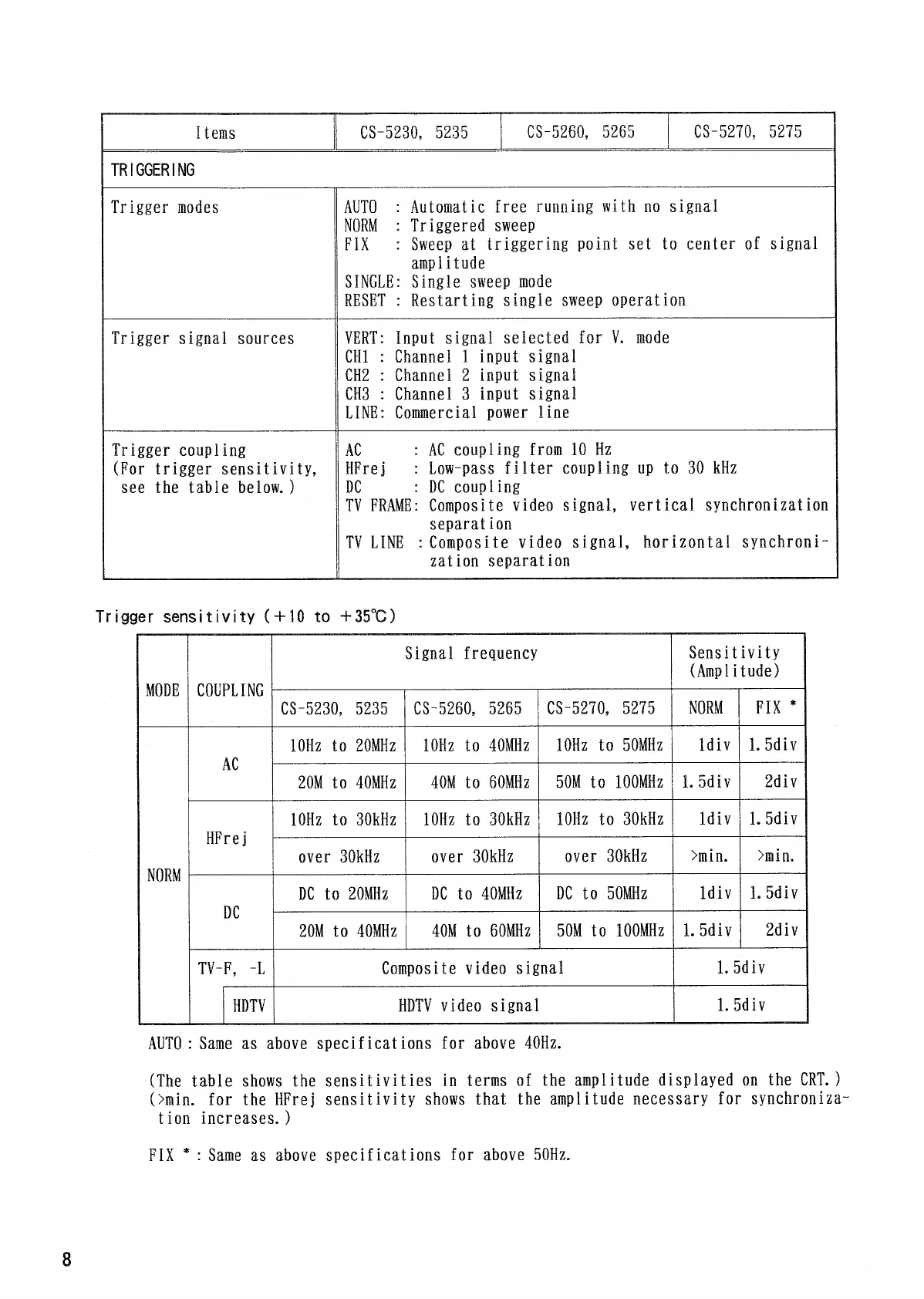

Items
CS-5230, 5235
CS-5260, 5285
CS-5270, 5275
TRIGGERING
Trigger modes
AUTO : Automatic free running with no signal
NORM : Triggered sweep
FIX : Sweep at triggering point set to center of signal
amplitude
SINGLE: Single sweep mode
RESET : Restarting single sweep operation
Trigger signal sources
VERT: Input signal selected for V. mode
CHI : Channel 1 input signal
CH2 : Channel 2 input signal
CH3 : Channel 3 input signal
LINE: Commercial power line
Trigger coupling
(For trigger sensitivity,
see the table below.)
AC : AC coupling from 10 Hz
HFrej : Low-pass filter coupling up to 30 kHz
DC : DC coupling
TV FRAME: Composite video signal, vertical synchronization
separation
TV LINE : Composite video signal, horizontal synchroni-
zation separation
Trigger sensitivity ( + 10 to + 35°C)
MODE
COUPLING
Signal frequency
Sensitivity
(Ampli tude)
MODE
COUPLING
CS-5230, 5235
CS-5260, 5265
CS-5270, 5275
NORM FIX *
AC
10Hz to 20MHz
10Hz to 40MHz
10Hz to 50MHz ldiv
1.5div
AC
20M to 40MHz
40M to 60MHz
50M to 100MHz 1.5div 2div
HFrej
10Hz to 30kHz
10Hz to 30kHz
10Hz to 30kHz
ldiv
1..5div
NORM
HFrej
over 30kHz
over 30kHz
over 30kHz >min. >min.
NORM
DC
DC to 20MHz
DC to 40MHz DC to 50MHz
ldiv 1.5div
DC
20M to 40MHz
40M to 60MHz
50M to 100MHz
1. 5div
2div
TV-F, -L
Composite video signal
1. 5div
HDTV
HDTV video signal
1. 5div
AUTO : Same as above specifications for above 40Hz.
(The table shows the sensitivities in terms of the amplitude displayed on the CRT. )
(>min. for the HFrej sensitivity shows that the amplitude necessary for synchroniza-
tion increases.)
FIX * : Same as above specifications for above 50Hz.
8
