Example : In Figure 10, the vertical distance between the two points is 4.4 div. The
voltage is found as shown below, provided the VOLTS/DIV control is set to 0. 2
V/div and the 10:1 probe is used:
Voltage between 2 points = 4.4 (div)x0.2 (V/div) x 10 = 8. 8 V
• Cursor measurement [CS-5230, 5260, 5270]
(1) Move the waveform to be measured to an easy-to-see position.
(2) Press the CURSOR MODE switch to select the voltage measurement mode. Bring the
A REF and A cursors in contact with the points to be measured. Read the
measurement.

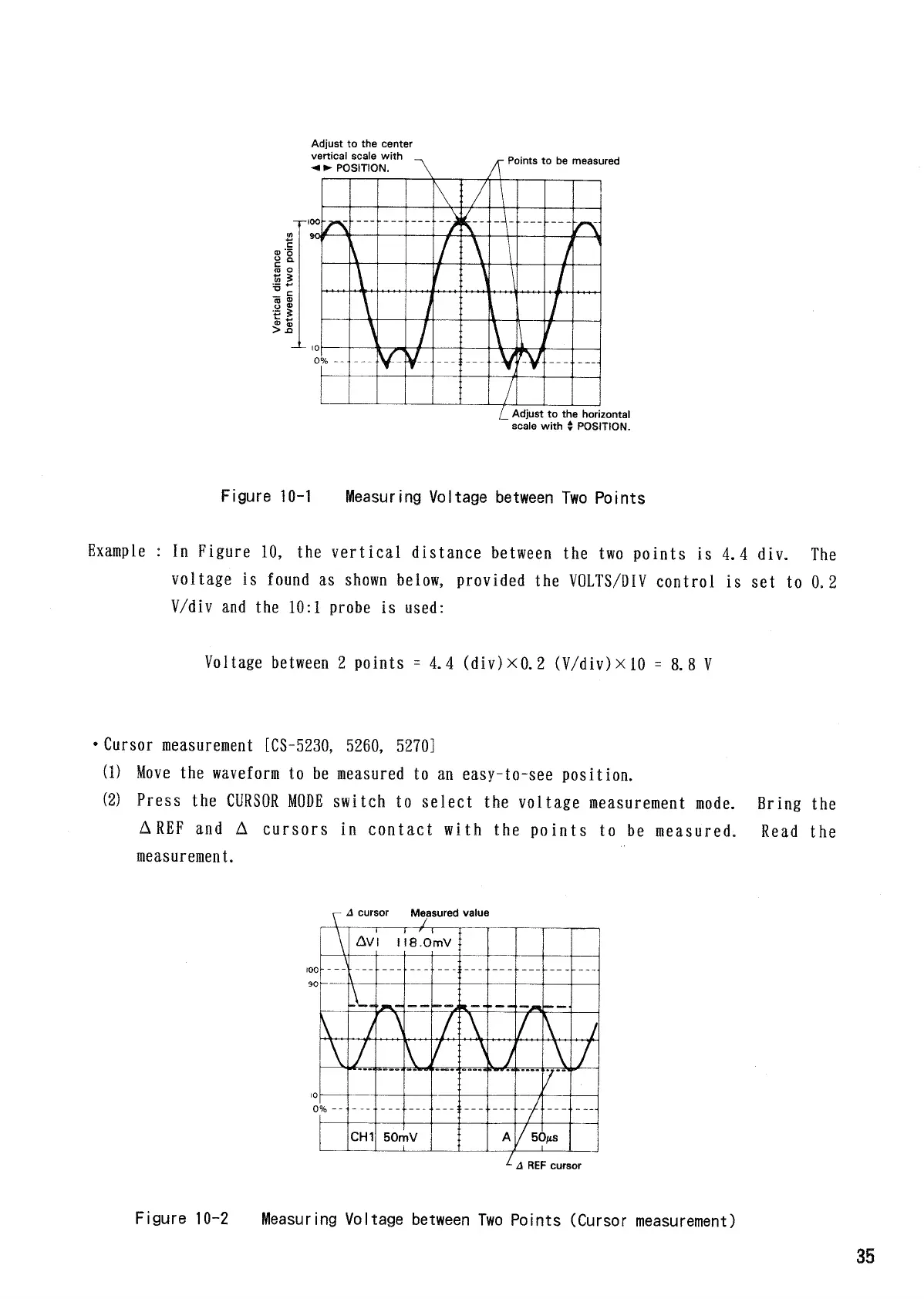

Figure 10-2 Measuring Voltage between Two Points (Cursor measurement)
Adjust to the center
vertical scale with ,
^•POSITION.
Points to be measured
Vertical
distance
between
two
points
Adjust to the horizontal
scale with £ POSITION.
Figure 10-1 Measuring Voltage between Two Points
cursor
Measured value
REF cursor
