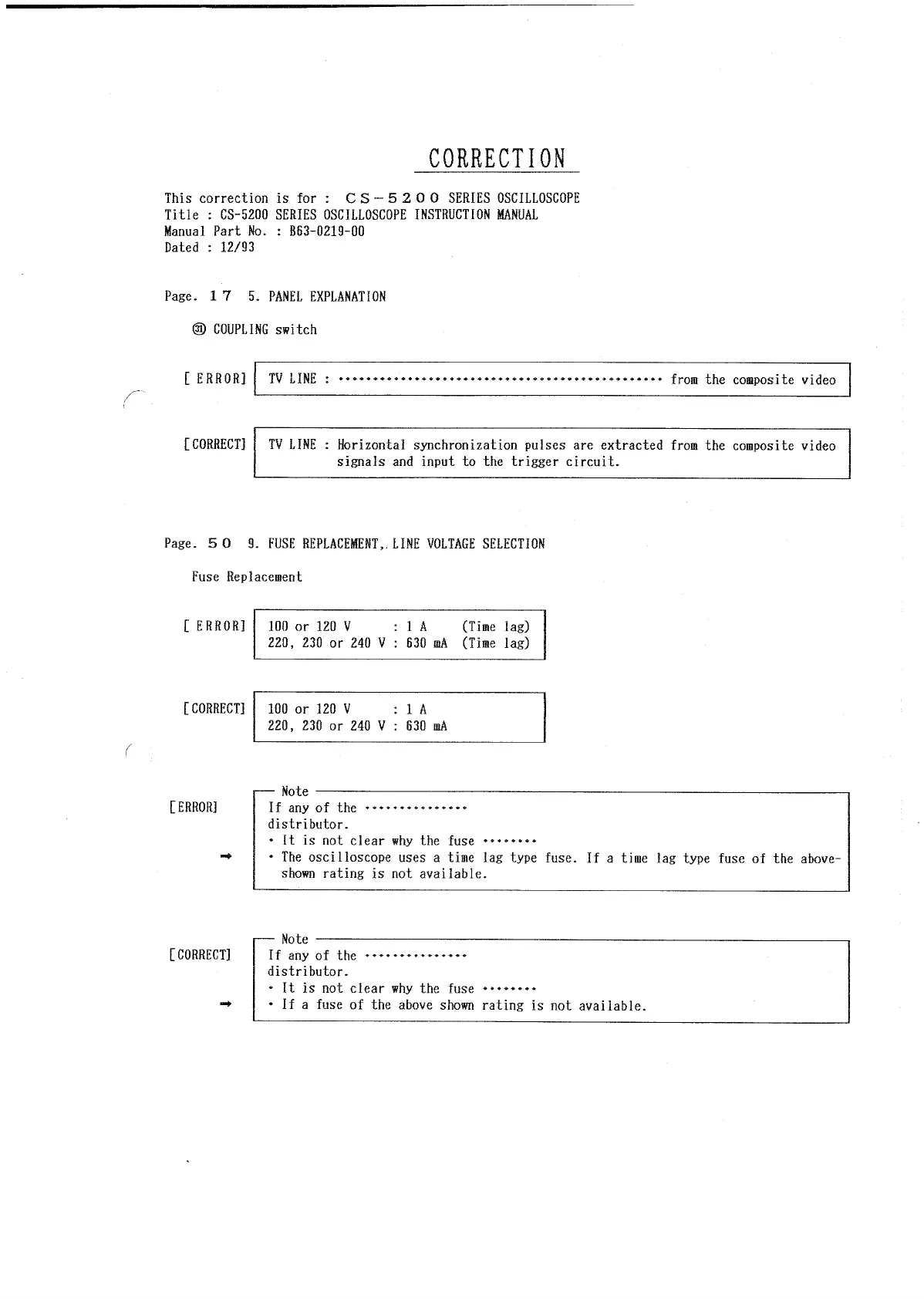

CORRECTION
This correction is for : C S - 5 2 0 0 SERIES OSCILLOSCOPE
Title : CS-5200 SERIES OSCILLOSCOPE INSTRUCTION MANUAL
Manual Part No. : B63-0219-00
Dated : 12/93
Page. 1 7 5. PANEL EXPLANATION
© COUPLING switch
[ ERROR]
Page. 5 0 9. FUSE REPLACEMENT,. LINE VOLTAGE SELECTION
Fuse Replacement
[ERROR]
Note
If any of the •
distributor.
• It is not clear why the fuse
* The oscilloscope uses a time lag type fuse. If a time lag type fuse of the above-
shown rating is not available.
TV LINE : ••••••••••••••••••••••••••••••••••••••••••••••• from the composite video
[CORRECT]
TV LINE : Horizontal synchronization pulses are extracted from the composite video
signals and input to the trigger circuit.
[ ERROR]
100 or 120 V : 1 A (Time lag)
220, 230 or 240 V : 630 mA (Time lag)
[CORRECT]
100 or 120 V , : 1 A
220, 230 or 240 V : 630 mA
[CORRECT]
Note
If any of the •
distributor.
• It is not clear why the fuse
* If a fuse of the above shown rating is not available.
