Other External Components
54
6
[None]
Assign no position to the view camera
connected to the selected input terminal.
4
Touch [Enter].
NOTE
• The screen shot is for the [FRONT VIEW
CAMERA / DASH CAM] setting screen. It may be
different from the one for [3rd VIEW CAMERA]
and [AV-IN].
• The Dashboard Camera can be selected when it is
connected. (P.81)

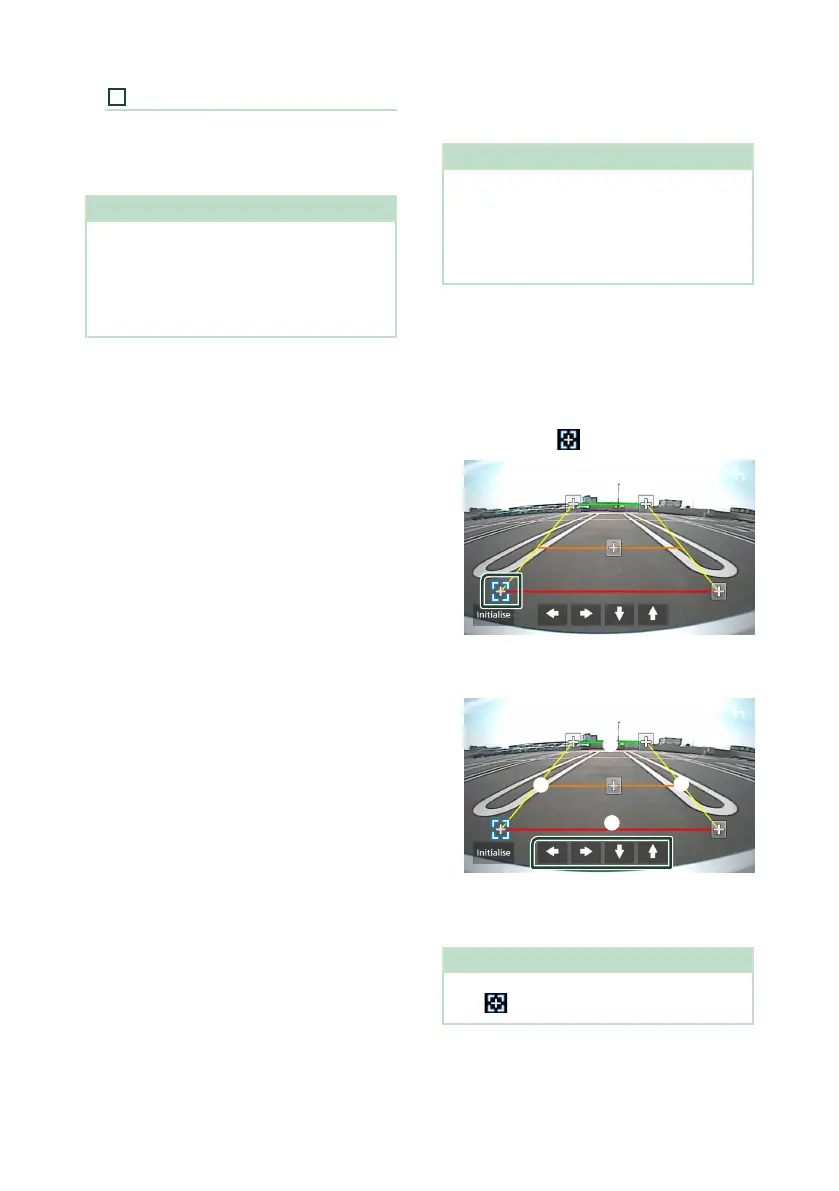

Ñ To adjust the parking
guidelines
NOTE
• Install the rear view camera in the appropriate
position according to the instruction manual
supplied with the rear view camera.
• When adjusting the parking guidelines, make
sure to apply the parking brake to prevent the car
from moving.
1
Touch [Parking Guidelines] in the Camera
screen and set to [ON]. (P.52)
2
Touch [Guidelines SETUP] on the Camera
screen.
3
Adjust the parking guidelines by
selecting the
mark.
4
Adjusting the position of the selected
mark.
A
B
C
D
Make sure that lines A and B are
horizontally parallel, and that lines C and
D are of the same length.
NOTE
• Touch [Initialise] and then touch [Yes ] to set all
the
marks to their initial default position.
To Next Page
