Kenwood DMX8021DABS User Manual

Other External Components
53English
■ [Rear Camera for Car interface]
[ON]: Select when you connected an external
system unit. Neither keys nor titles are
displayed.
[OFF] (Default): Select when you connected a
rear camera.
■ [Rear Camera Settings *
2]
Adjusts the CMOS-3xx series with ID 1 ("Rear
Camera") set. For details, see the instruction
manual of your camera.
■ [Parking Guidelines]
You can display parking guidelines to enable
easier parking when you shift the gear to the
reverse (R) position.
Default is “ON”.
■ [Guidelines SETUP]
If you select [ON] for [Parking Guidelines],
you can adjust the parking guidelines. See To
adjust the parking guidelines (P.54).
■ [Front Camera Settings *
3]
Adjusts the CMOS-3xx series with ID 2 ("Front
Camera") set. For details, see the instruction
manual of your camera.
■ [Front Camera Interruption *
4]
[10 sec]/[15 sec] (Default)/[20 sec]: The front
camera screen is displayed when return
the gear from the reverse (R) position.
[OFF]: Cancel.
*1 To use the function, it is necessary to set [Rear
Camera Interruption] to [ON].
*2 When CMOS-3xx series is connected with
this unit.
*3 To use the function, it is necessary to connect
CMOS-3xx series and to set [Camera
Assignment Settings] to [Front]. (P.53)
*4 To use the function, it is necessary to set [Rear
Camera Interruption] to [ON], to set [Rear
Camera for Car interface] to [OFF], and
to set [Camera Assignment Settings] to
[Front]. (P.53)
Ñ To set up the camera
assignment settings
1
Touch [Camera Assignment Settings] on
the Camera screen. (P.52)
2
Select the item to set up.
■ [FRONT VIEW CAMERA / DASH CAM]
Set the camera assignment from view
camera connected to Front view camera/
Dashboard camera input terminal.
■ [3rd VIEW CAMERA]
Set the camera assignment from view
camera connected to 3rd view camera input
terminal.
■ [AV-IN]
Set the camera assignment from view
camera connected to VIDEO input terminal.

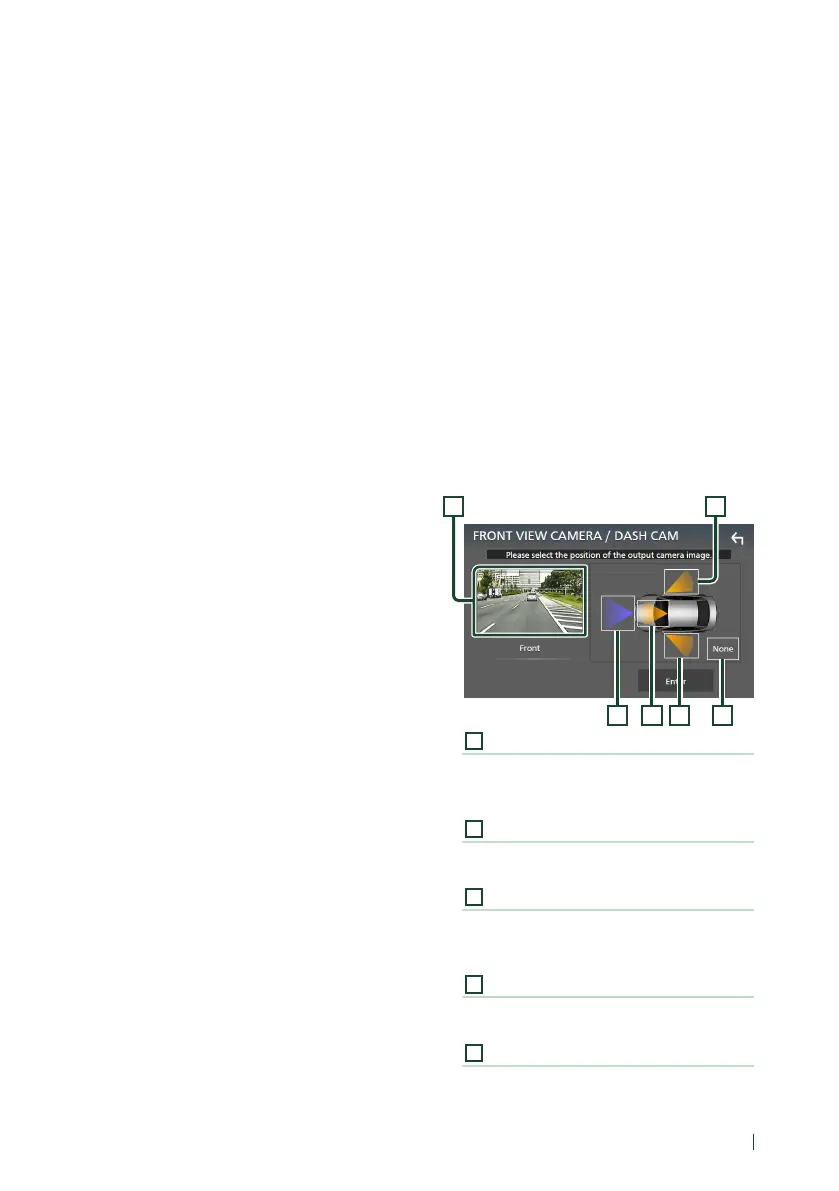

3
Select the view camera to set up.
52 3 6
1 4
1
Picture from view camera
Displays the picture from the view camera
connected to the input terminal to be set.
(P.81)
2
[Front]
Assign front position to the view camera
connected to the selected input terminal.
3
[Dashboard Camera]
Assign dashboard camera position to the
view camera connected to the selected
input terminal.
4
[Right]
Assign right position to the view camera
connected to the selected input terminal.
5
[Left]
Assign left position to the view camera
connected to the selected input terminal.
