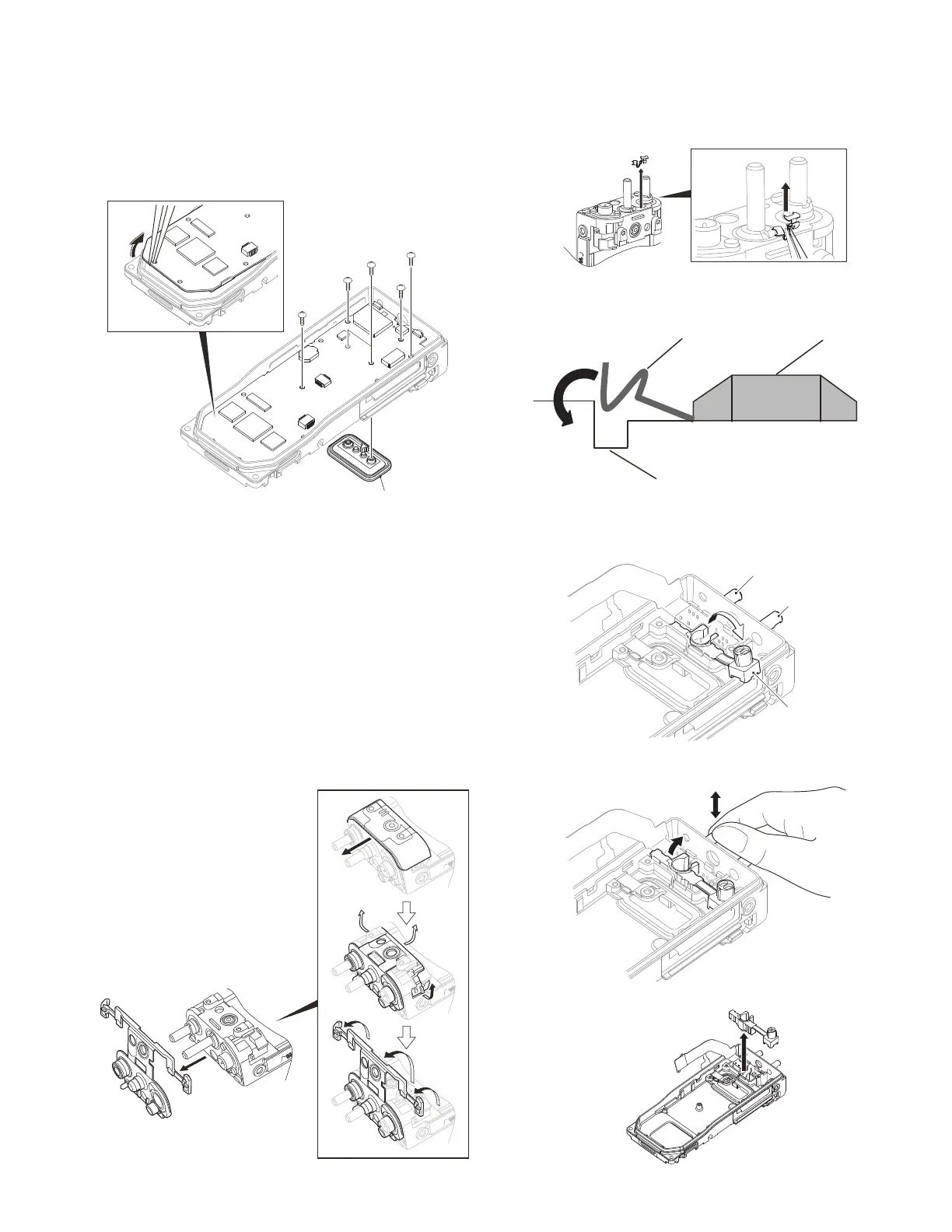

(No.RA018<Rev.002>)1-29
(4) Remove the six screws <6>.
Note:
When you remove two screws (black), the battery termi-
nal block is removed.
(5) Anchor the screw hole of the Main unit using the tip of a pair
of tweezers as shown in the figure. Then lift the Main unit
to remove it from the chassis. <7>
3.2.8 Removing the TOP packing
(1) Remove the rear panel by sliding it upwards. <1>
(2) Pull the TOP packing to the left to remove the packing that
is fit into the left groove of the chassis. <2>
(3) Pull the TOP packing to the right to remove the packing that
is fit into the right groove of the chassis. <3>
(4) Pull the TOP packing to the center to remove the packing
that is fit into the center groove of the chassis. <4>
(5) Remove the TOP packing. <5>
Note:
Remove the packing slowly, as the packing of the selec-
tor part might be overset when the TOP packing is re-
moved.
If the packing is turned over, return it to the original posi-
tion using a soft tipped item (e.g., your finger).
3.2.9 Removing the stopper of the selector circle nut and
volume circle nut
(1) Remove the stopper <1> using a pair of tweezers.
Note:
When reassembling the stopper, install it as shown in the
figure.
3.2.10 Remove the selector and volume switches from the
chassis
(1) Pull up the cover of the packing. <1>
(2) Move the selector and volume switches vertically to lift the
packing.
(3) Pull on the packing and remove it from the chassis.
<6>
<6>
<6>
<6>
<6>
Battery terminal block
<7>
<5>
<1>
<1><1>
<3>
<4>
<2><2>
<1>
Circle nut
Stopper
Chassis
<1>
<1>
Selector switch
Packing
Volume switch
