Kenwood NX-5200 Service Manual

1-40 (No.RA018<Rev.002>)

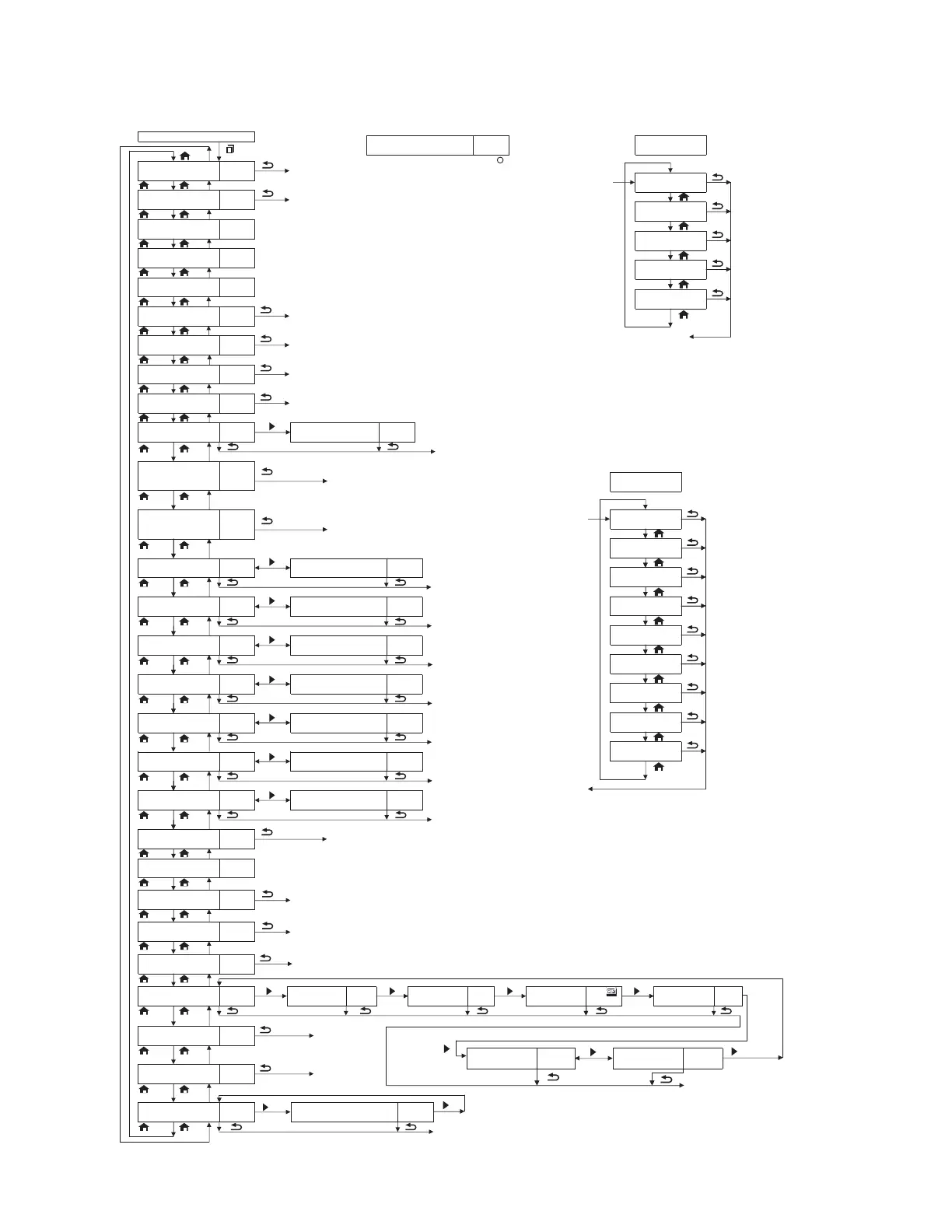

4.3.6 Panel tuning mode flow chart
Note:
* In this Panel tuning mode flow chart, the Adjustment item name is modified.
Panel Test Mode
[ ]hold
RX Assist 9 reference level
RAST Adjustments
TX Assist 9 reference level
TAST Adjustments
RTC Correction
RTC
Ramp Up
RAMPU
Ramp Down
RAMPD
High Power Narrow 5 reference level
H_PWR An Adjustments
Medium Power Narrow 5 reference level
M_PWR An Adjustments
Low Power Narrow 5 reference level
L_PWR An Adjustments
Balance Narrow 5 reference level
BAL An Adjustments
Analog Max Deviation Narrow Analog Max Deviation Wide
ADEV An ADEV Aw
5 reference level
Adjustments
P25 High Deviation
Phase1
Narrow
5 reference level
PDEV P1 Adjustments
P25 H-CPM Deviation
Phase2
Narrow
5 reference level
Adjustments
5 reference level
P2DEV P2 Adjustments
NXDN High Deviation Narrow NXDN High Deviation
VeryNarrow
NDEV Nn NDEV Nv
5 reference level
QT Deviation Narrow QT Deviation Wide
QT An QT Aw
5 reference level
Adjustments
DQT Deviation Narrow DQT Deviation Wide
DQT An DQT Aw
5 reference level
Adjustments
LTR Deviation Narrow LTR Deviation Wide
LTR An LTR Aw
5 reference level
Adjustments
DTMF Deviation Narrow DTMF Deviation Wide
DTMF An DTMF Aw
5 reference level
Adjustments
MSK Deviation Narrow MSK Deviation Wide
MSK An MSK Aw
5 reference level
Adjustments
CW ID Deviation Narrow
CWID An
Battery
BATT
RSSI (Reference) Narrow 5 reference level
RRSSI An Adjustments
Squelch (Open) Narrow Squelch (Open) Wide Squelch (Open) C4FM Squelch (Open)
LSM”
Squelch (Open) Narrow
SQL An SQL Aw SQL P1 SQL P1 SQL P2
5 reference level
Adjustments
RSSI (Low) Narrow 5 reference level
LRSSI An Adjustments
RSSI (High) Narrow 5 reference level
HRSSI An Adjustments
Squelch (Tight) Narrow Squelch (Tight) Wide
SQLT An SQLT Aw
5 reference level
Adjustments
Adjustment Item N/W/VN
LCD Display
For all adjustment items, press the [ ] key
to write the adjustment value.
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
[ ] [ ]
[ ]
[ ] [ ] [ ] [ ] [ ]
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]press [ ]hold
[ ]press [ ]hold
[ ]press [ ]hold
[ ]press [ ]hold
[ ]press [ ]hold
[ ]press [ ]hold
[ ]press [ ]hold
[ ]press [ ]hold
[ ]press [ ]hold
[ ]press [ ]hold
[ ]press [ ]hold
[ ]press [ ]hold
[ ]press [ ]hold
[ ]press [ ]hold
[ ]press [ ]hold
[ ]press [ ]hold
[ ]press [ ]hold
[ ]press [ ]hold
[ ]press [ ]hold
[ ]press [ ]hold
5 reference level
Adjustments
Narrow
An
[ ]
Sensitivity 1
SENS1
[ ]press [ ]hold
5 reference level
Adjustments
Narrow
An
[ ]
Sensitivity 2
SENS2
[ ]press [ ]hold
[ ]press [ ]hold
[ ]press [ ]hold
[ ]press [ ]hold
[ ]press [ ]hold
[ ]press [ ]hold
[ ]
[ ]
[ ]
[ ]
[ ]
Single Tone Deviation Narrow Single Tone Deviation Wide
TONE An TONE Aw
5 reference level
Adjustments
[ ] [ ]
[ ]press [ ]hold
[ ]
[ ]
[ ]
[ ]
[ ]
[ ] [ ] [ ]
Adjustment Point
LCD Display
5 reference level
Low 1
Low 3
Center 2
High 3
High 1
Low 1
Adjustments
Low 3
Center 2
High 3
5 reference level
Adjustments exit
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
High 1
[ ]
[ ]
[ ]
High Transmit Power
Medium Transmit Power
Low Transmit Power
Maximum Deviation
P25 High Deviation
P25 H-CPM Deviation
NXDN High Deviation
QT Deviation
DQT Deviation
LTR Deviation
DTMF Deviation
Single Tone Deviation
MSK Deviation
CW ID Deviation
Sensitivity 1
Sensitivity 2
RSSI Reference
Open Squelch
Low RSSI
High RSSI
Tight Squelch
Adjustment Point
LCD Display
9 reference level
Low 1
Low 2
Low 3
High 3
Center 1
Center 2
Center 3
High 1
High 2
Low 1
Adjustments
Low 2
Low 3
High 3
9 reference level
Adjustments exit
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
[ ]
Center 1
[ ]
[ ]
Center 2
Center 3
[ ]
[ ]
[ ]
[ ]
High 1
[ ]
[ ]
High 2
[ ]
[ ]
[ ]
Balance
Receive Assist
Transmit Assist
[ ]
[ ]
[ ]
[ ]
Squelch (Open) Narrow Squelch (Open)
VeryNarrow
SQL Nn SQL Nv
[ ]
[ ]
