Before use

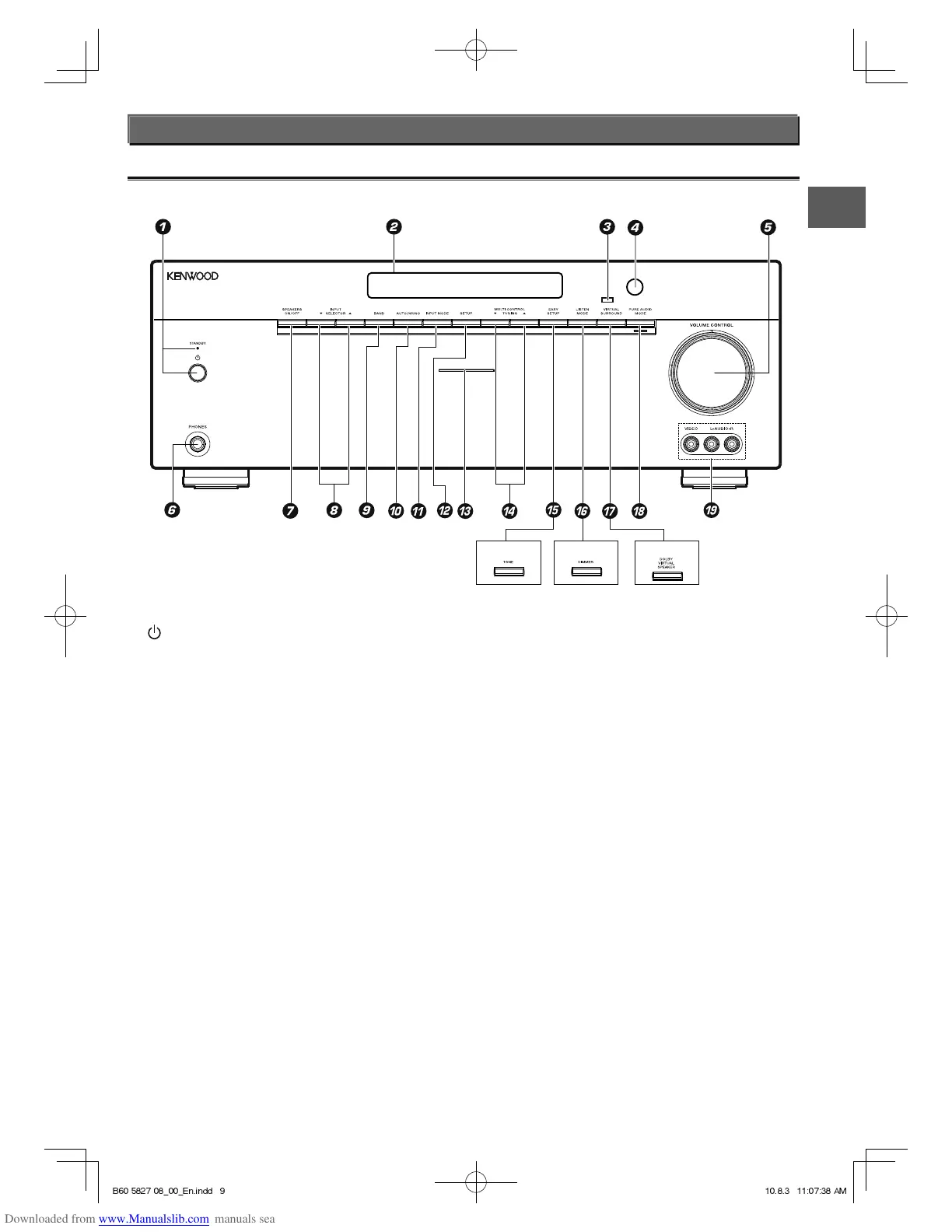

Names and functions of parts
1 (Power) key
Standby indicator
Press to switch this unit ON or to put it
to standby.
The standby indicator lights in the
standby mode.
2 Display
3 DOLBY VIRTUAL SPEAKER
indicator (RA-5000 only)
4 Remote sensor
5 VOLUME CONTROL knob
6 PHONES jack
Use for headphone listening.
7 SPEAKERS ON/OFF key fl
Press to turn the speakers ON/OFF.
8 INPUT SELECTOR ∞/5 key
Press to select the input source.
9 BAND key e
Press to select the broadcasting band.
0 AUTO/MONO key e
Press to switch the radio tuning mode
between auto tuning and manual
tuning.
! INPUT MODE key fl
Press to select the input mode.
@ SETUP key ª
Press to set up this unit.
# Illumination
$ MULTI CONTROL ∞/5 key
Press to select a setting item.
TUNING key
Press to select a radio station.
% RV-7000/RV-6000:
EASY SETUP key •
Use for Easy Setup of the speakers.
RA-5000:
TONE key i
Press to adjust the tone.
^ RV-7000/RV-6000:
LISTEN MODE key q
Press to select the listen mode.
RA-5000:
DIMMER key W
Press to switch the brightness of the
display and indicators.
& RV-7000/RV-6000:
VIRTUAL SURROUND key w
Press to switch the Virtual Surround
function ON/OFF.
RA-5000:
DOLBY VIRTUAL SPEAKER key
w
Press to switch the Dolby Virtual
Speaker function ON/OFF.
Main unit
* PURE AUDIO MODE key °
Press to switch the STRAIGHT DECODE
MODE/PURE AUDIO MODE ON/OFF.
(RV-7000/RV-6000)
Press to switch the PURE AUDIO
MODE ON/OFF. (RA-5000)
( AV AUX jacks
Connect a video camera, videogame
machine, etc.
Standby mode
While the standby indicator is lit, a small
amount of power is supplied to the system
to back up the memory. This is called
standby mode. Under the condition, the
system can be turned ON by the remote
control unit.
