Key-Disp KD716 User Manual

13
◆Controller Over-Current Cut Settings (optional)
CUR represents controller over-current cut settings. CUR value ranges from 7.0A to 22.0A. The default value
is 15A.
Press the UP/DOWN button to increase or decrease the value of the current.
Hold i button for 2s to confirm and then return to previous menu.

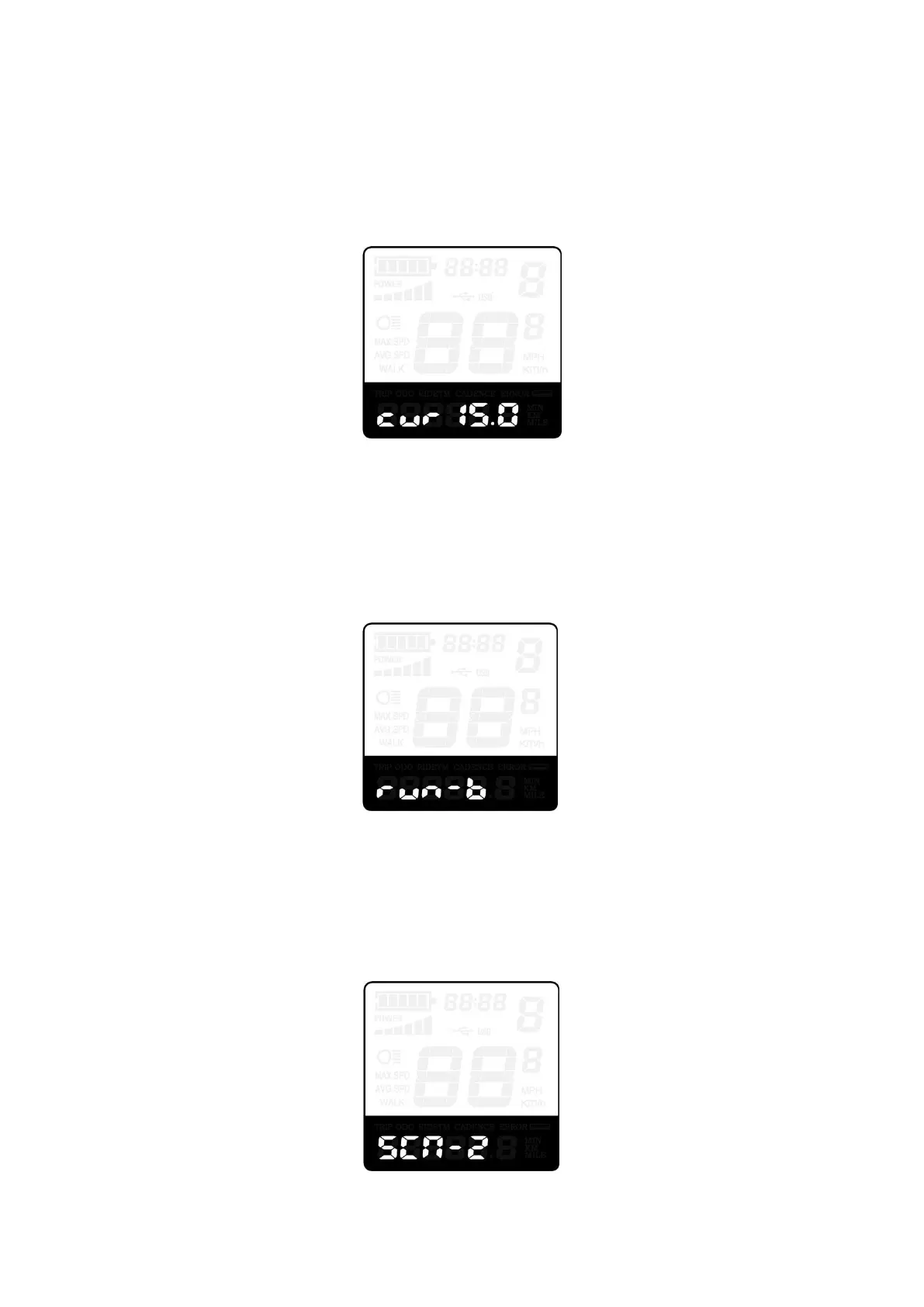

Current settings interface
◆PAS sensor settings（optional）
PAS sensor direction settings
“run-F” means “go forward” while “run-b” means “go backward”. The default value is “run-F”.
Press the UP/DOWN button to select F or b to change the direction of Power Assist Sensor.
Press i button to confirm and then access PAS sensitivity settings
PAS sensor direction settings
PAS Sensitivity Settings
SCN represents PAS sensitivity settings. The sensitivity value ranges from “2” to “9”. “2” is the strongest, “9” is
the weakest. The default value is “2”.
Press the UP/DOWN button to choose sensitivity value to change the PAS sensitivity settings.
Press i button and then access magnet disk settings.
PAS sensor sensitivity
