Key-Disp KD78C User Manual

1
Product name and model
E-bike Intelligent LCD display
Model: KD78C
Specifications
●2.0” segment LCD
●24V/36V/48V/52V Power Supply
●Rated working current: 10mA
●The maximum working current: 30mA
●Communication: Uart/CAN
●Operating temperature: -10℃~ 40℃
●Storage temperature: -20℃~ 60℃

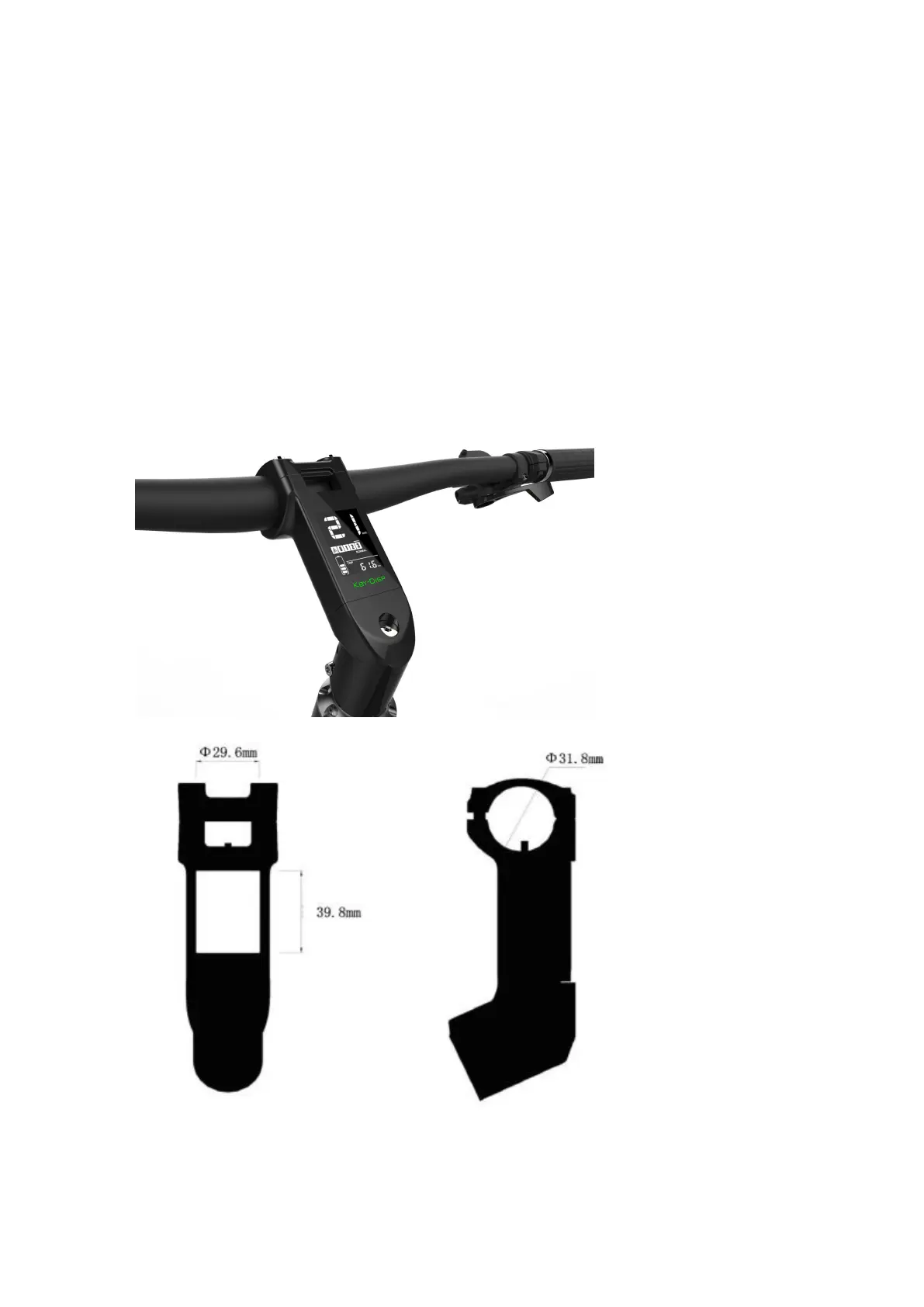

Appearance and dimension
Display picture and dimensional info (unit: mm)

Key-Disp KD78C Specifications

General

Brand	Key-Disp
Model	KD78C
Category	Monitor
Language	English
