Keyscan CIM-LINK - Page 6

Keyscan Inc. A Member of the Kaba Group
6

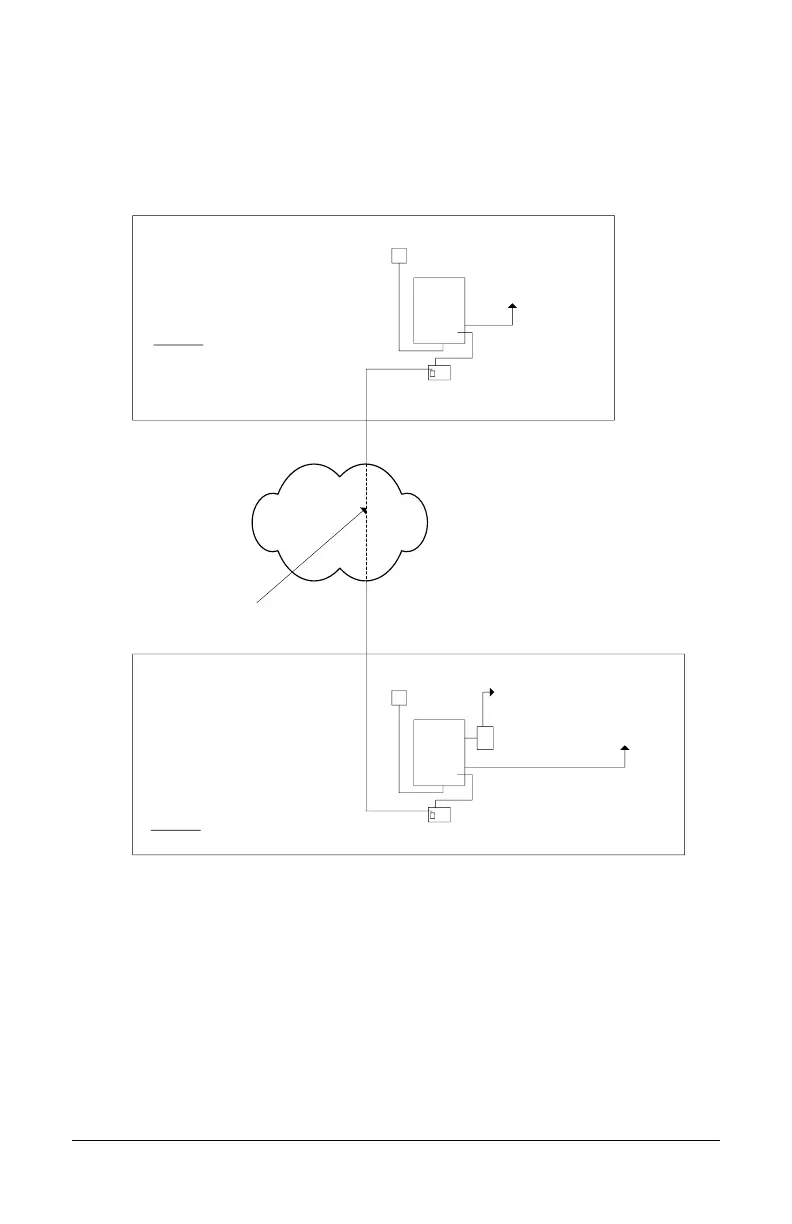

Figure 5 - Single ACU Communication Loop as Global Master to Single Subordinate
ACU Communication Loop
A single access control unit communication loop designated as a global master is restricted
to one subordinate communication loop.
CIM-LINK
J3 ON – Global Master
J4 ON – Single ACU Mode
ACU
Input A
Building 1
Communication Loop - Master
Single ACU panel communication
loop requires only a CIM-LINK
module.
serial or network
connection to PC
with
Communication
Manager
CIM-LINK
J3 OFF – Global Slave
J4 ON – Single ACU Mode
ACU
Input B
Building 2
Communication Loop - Subordinate
Single ACU panel communication
loop requires only a CIM-LINK
module.
serial or network
connection to PC
with
Communication
Manager
Ethernet
Virtual
Connection
OCB-8
Output
(Alarm/
CCTV
etc.)
Input A and Input B programmed to fire the output in Building 2.
Maximum of 2 ACU communication loops may be integrated for global communication when single ACU
communication loop is designated as the master communication loop.
KI-00486E-10-12
CIM-LINK
- communicates with CIM-LINK – Building 2
CIM-LINK
- communicates with CIM-LINK – Building 1
See Figure 13 or
Figure 14 for
connections.
See Figure 13 or
Figure 14 for
connections.
