Menu Description
Datalog Run Stop Run or stop data logging.
Knob Scale or Ofs Scale or Ofs
Sc, Ofs, or Mrk Marker (Mrk) only appear when Marker is enabled.
Selecting Mrk set the function of the Vertical and Horizontal knob to adjust the m1 and m2 marker position.
See Using knob in data logger view.
Marker On or Off Enables or disables the Marker view.
Properties Sets the data logging and waveform displays properties. See
Data logger properties and waveform
settings
.
Auto Scale Auto scales the traces on the display.

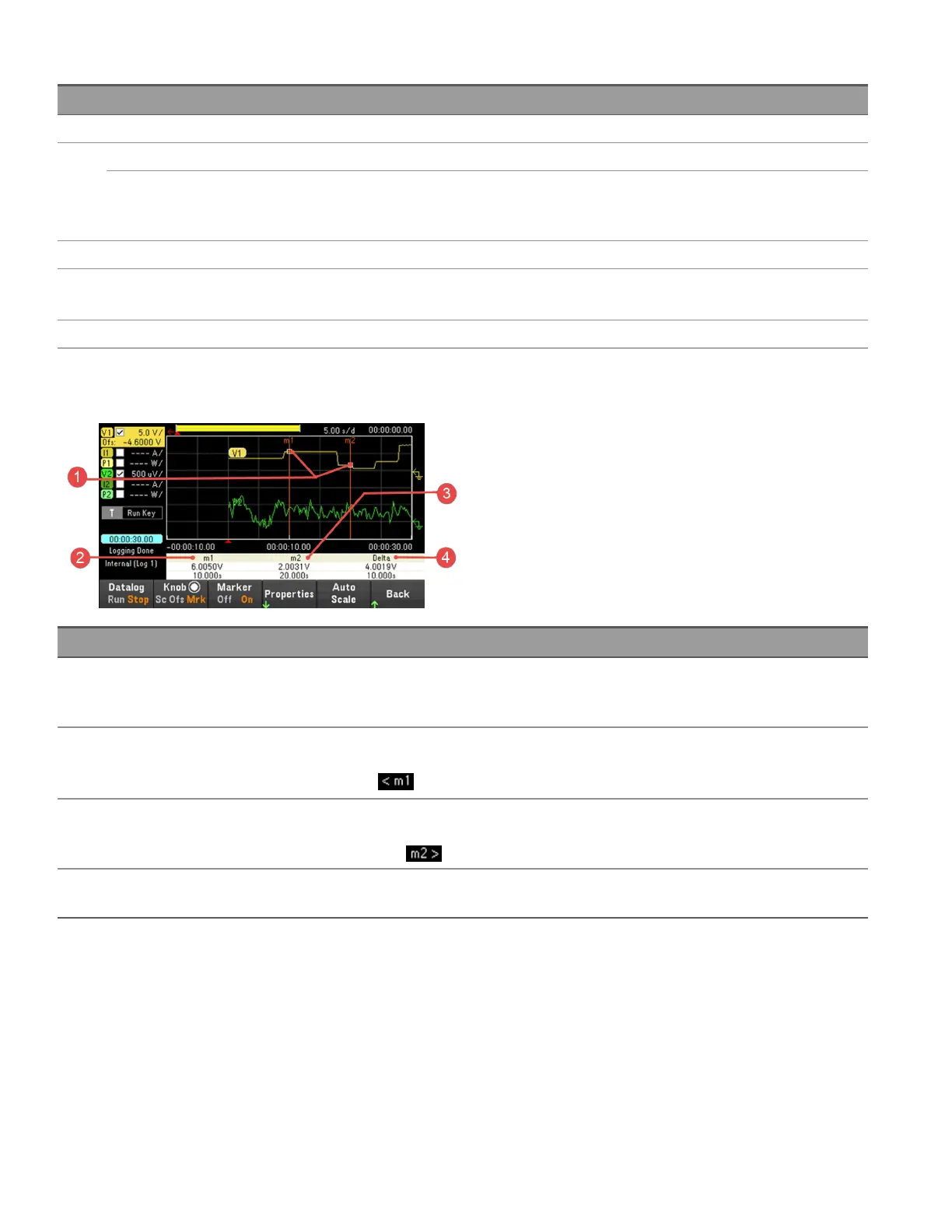

Data logger marker view
Items Description
1 m1/m2 points Shows where the measurement markers intersect the selected waveform. Data values at the bottom of the dis-
play are referenced to the intersect locations of the markers. Calculations are based on the data points in
between the intersect locations.
2 m1 Indicates the m1 marker value in volts, amps, or watts at the intersection point. Also indicates the distance in
time of the m1 marker in relation to the present trigger position. If a marker is out of view, an arrow indicates
the direction of the marker .
3 m2 Indicates the m2 marker value in volts, amps, or watts at the intersection point. Also indicates the distance in
time that the m2 marker is in relation to the present trigger position. If a marker is out of view, an arrow indic-
ates the direction of the marker .
4 Delta Indicates the delta or absolute difference between the markers in units (volts, amps, or watts) and in time
(seconds).
106
