Toggle mode
Toggle mode generates a repetitive pulse stream that toggles between two load levels. It causes the load input to
alternate between two pre-defined levels as in continuous operation except that the transient points are controlled
by explicit triggers instead of an internal transient generator.

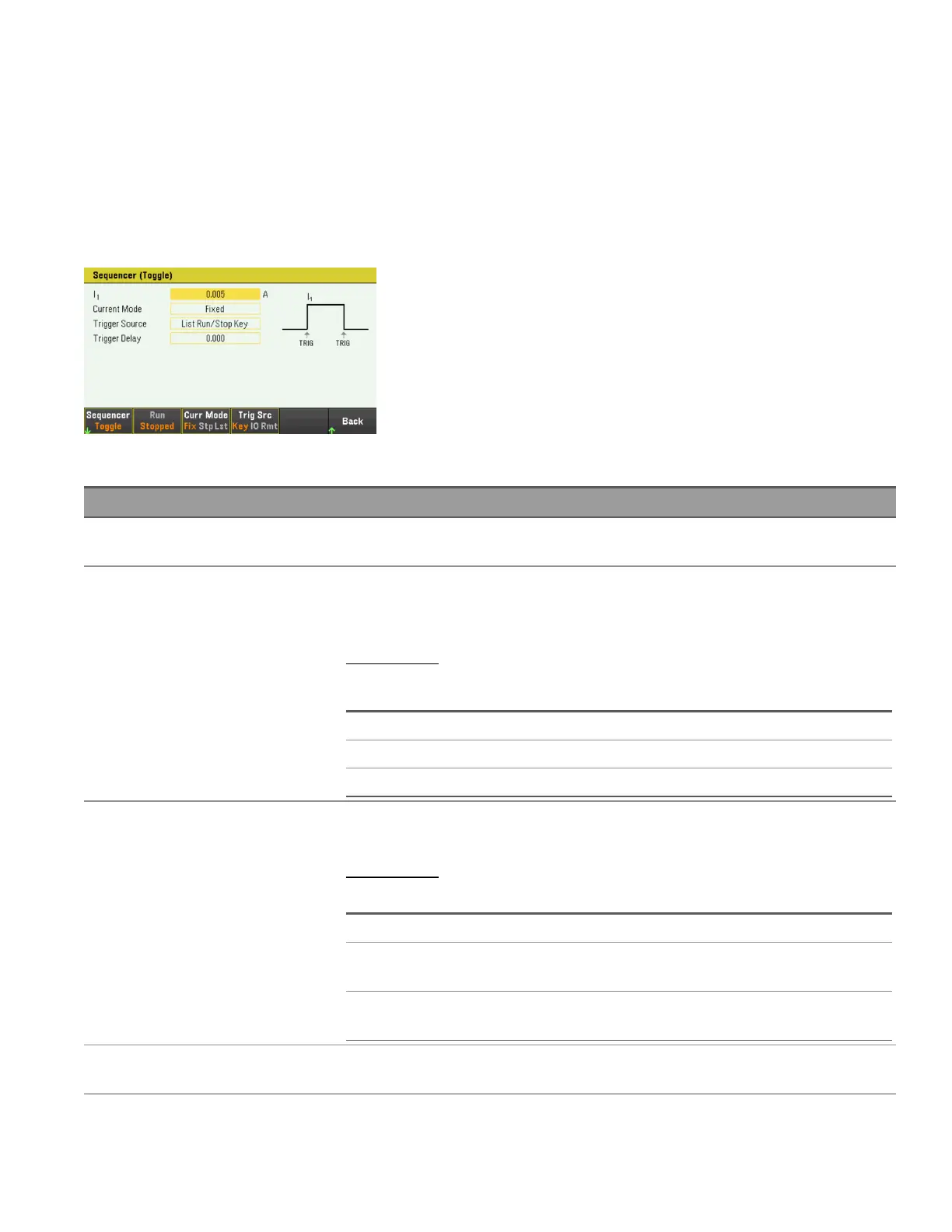

Step 1– Configure the sequence properties
Configure the Sequencer Toggle accordingly. Refer to the below table for details.
Parameter Available Key Settings Description
Transient Setting
(I
1
, V
1
, P
1
, or R
1
)
minimum to maximum Sets the transient voltage, current, resistance, or power level in voltage, ampere, ohms, or
watts.
Current Mode
Voltage Mode
Resistance Mode
Power Mode
Fix, Stp, or Lst Sets the current/voltage/resistance/power mode. This determines what happens to the input
current/voltage/resistance/power when the system is initiated or triggered.
Default is Fix.
Action required:
Press Curr Mode, Volt Mode, Res Mode, or Pow Mode to toggle between Fix, Stp, and Lst.
Fix (Fixed) Keeps the input at its immediate value.
Stp (Step) Steps the input to the triggered level when a trigger occurs
Lst (List) Causes the input to follow the list values when a trigger occurs.
Trigger Source Key, IO, or Rmt Sets the trigger source for the system.
Default is Key.
Action required:
Press Trig Src to toggle between Key, IO, and Rmt.
Key (List Run/Stop Key) Selects the Run Stopped softkey as a trigger source.
IO (DIO Trigger In) Selects any configured digital IO (with Trigger Input
function) as a trigger source
Rmt (Remote Command) Selects a remote interface command as a trigger
source.
Trigger Delay 0 to 0.255 s Sets the trigger delay in seconds.
Default is 0 s.
Keysight EL30000 Series User's Guide 99
