This section describes how to connect to the various communication interfaces on your electronic load. For further
information about configuring the remote interfaces, refer to Remote Interface Configuration.
If you have not already done so, install the Keysight IO Libraries Suite, which can be found at www.key-
sight.com/find/iolib. For detailed information about interface connections, refer to the Keysight Tech-
nologies USB/LAN/GPIB Interfaces Connectivity Guide included with the Keysight IO Libraries Suite.
GPIB connections (optional)

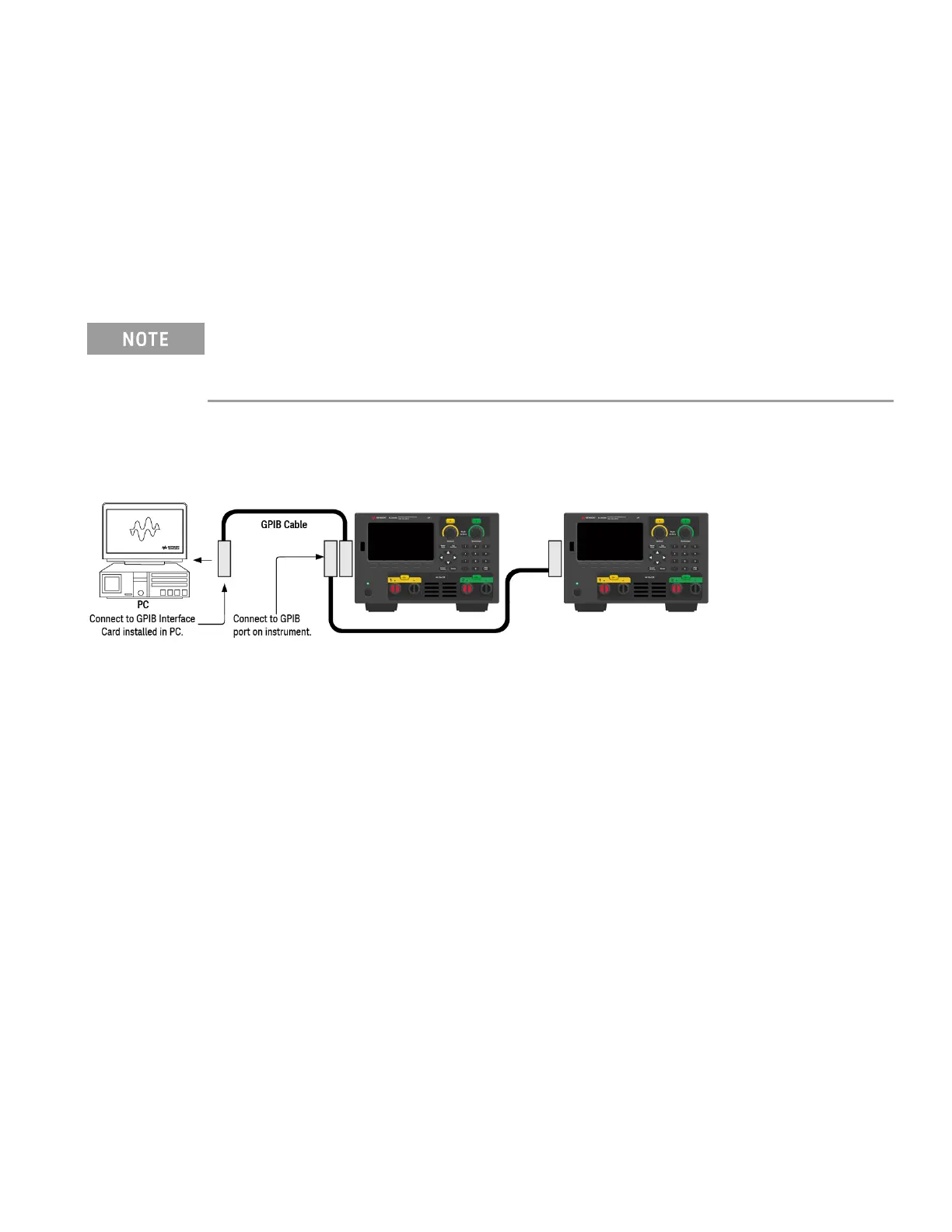

The following figure illustrates a typical GPIB interface system.
1. If you do not have a GPIB interface card installed on your computer, turn off your computer and install the GPIB
card.
2. Connect your instrument to the GPIB interface card using a GPIB interface cable.
3. Use the Connection Expert utility of the Keysight IO Libraries Suite to configure the GPIB card’s parameters.
4. The electronic load is shipped with its GPIB address set to 5. Use the front panel menu if you need to change the
GPIB address.
5. You can now use Interactive IO within the Connection Expert to communicate with your instrument, or you can
program your instrument using the various programming environments.
Keysight EL30000 Series User's Guide 41
