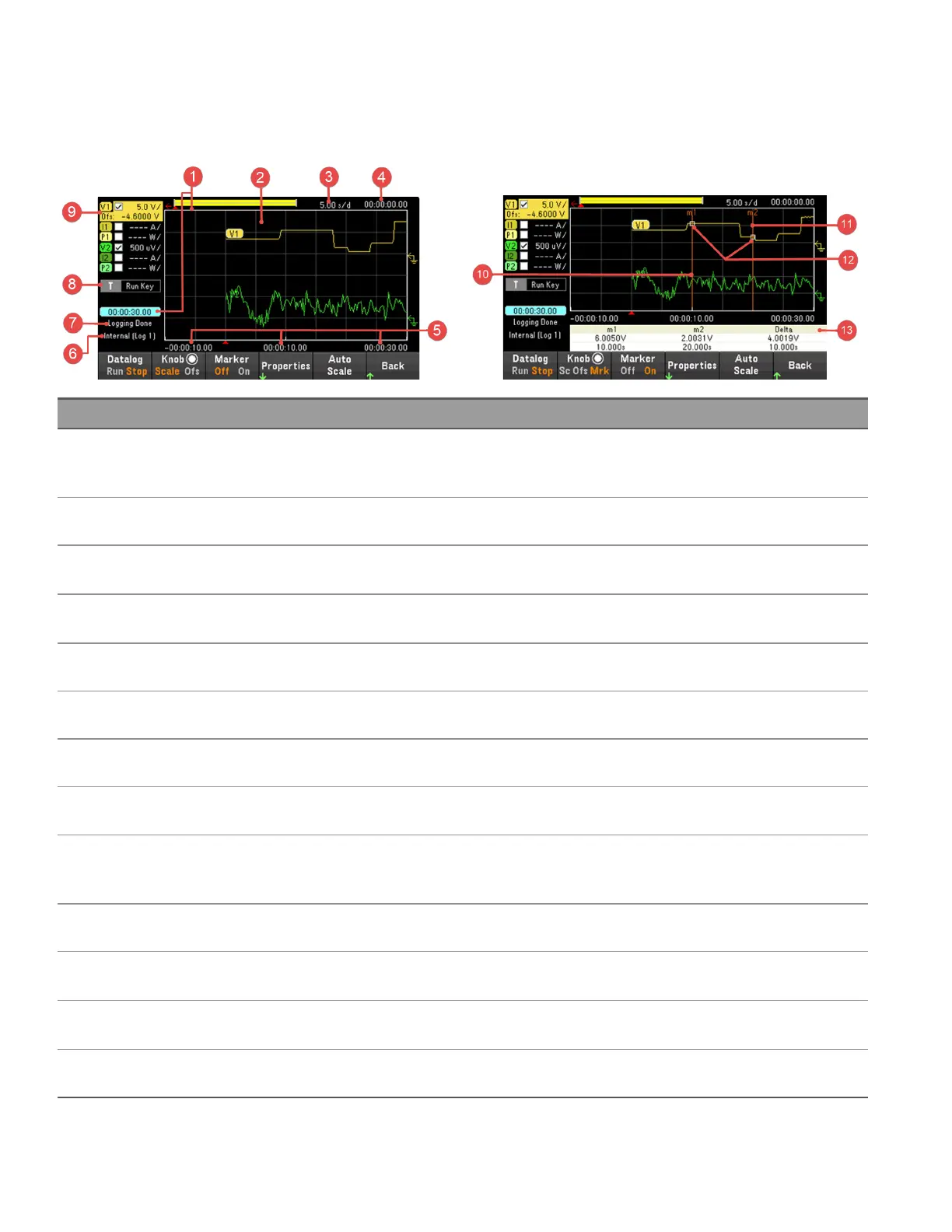

Data logger view
Press [Scope/Data Log]. This key toggles between Data Logger view and Scope view.
Item Description
1 Data bar and time elapsed
Displays the progress of the data logger. The yellow bar indicates the visible data. Numbers to the left indicate time elapsed/total
duration.
2 Data traces
Voltage, current, or power traces. Voltage traces V1 and V2 is shown. Press Auto Scale to auto scale all traces.
3 Time/Div
Indicates the horizontal time-base setting.
4 Offset time
Indicates the time that the right gridline is offset or away from the end of the data log.
5 Grid time
Displays the time on the gridline.
6 Filename
Indicates the file to which the data is being logged.
7 Status
Indicates whether the Data Logger is logging data, done logging, or is empty.
8 Trigger Source
Indicates the trigger source for the data logger.
9 Trace controls
Identifies the voltage or current trace that will be displayed. Dashes (----) indicate that the specified trace is turned off. Select the
trace and press [Enter] to turn it on or off.
10 m1 marker
Measurement Marker 1 enabled. This can be adjusted using the Vertical knob after pressing Knob Mrk.
11 m2 marker
Measurement Marker 2 enabled. This can be adjusted using the Horizontal knob after pressing Knob Mrk.
12 Intersect point
Shows where the measurement markers intersect the waveform.
13 Measurements
Shows the calculations of the waveform data between Marker 1 and Marker 2.
24
Keysight EL30000 Series User's Guide
