Item Description
9 Power key and LED indicator
Turns on the instrument. If the LED is amber, the instrument is in standby mode with AC inlet power connected, and if it is green, the
instrument is on.
10 All input on/off key
Turns all inputs On and Off according to the specified turn-on and turn-off delays.
11 Softkeys
Accesses the soft front panel menu.
12 USB port
Allows an external USB drive to be connected to the instrument.

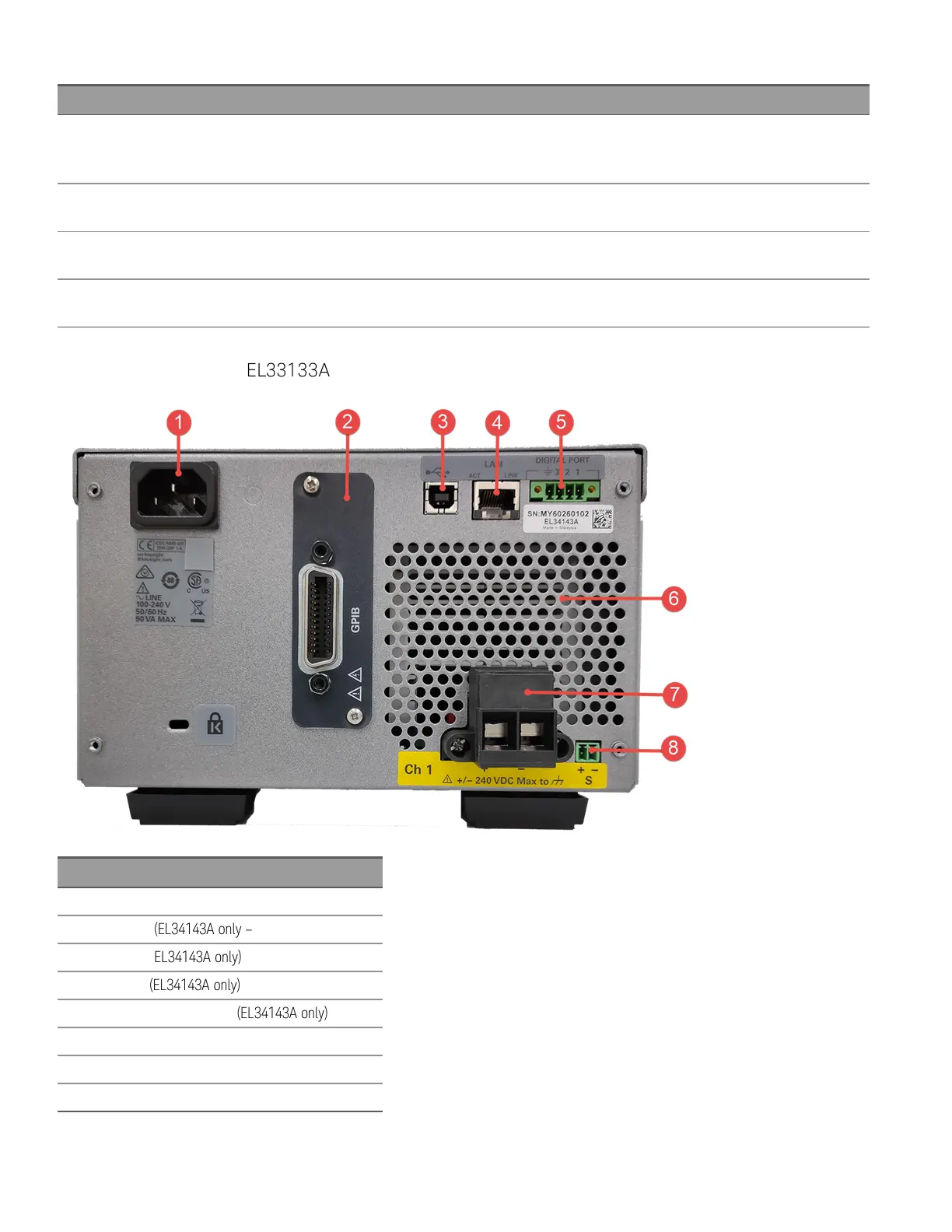

Rear panel at a glance (EL33133A/EL34143A)
Item Description
1 AC inlet
2 GPIB port (EL34143A only – Option GPIB)
3 USB port (EL34143A only)
4 LAN port (EL34143A only)
5 Digital I/O terminal port (EL34143A only)
6 Fan ventilation hole
7 Input 1 terminal port with mating connector
8 Input 1 sense terminal port
20
Keysight EL30000 Series User's Guide
