544 Keysight N9927-90001 User’s Guide
Channel Scanner (Option 312)
How to Set Up Channel Scanner
Using the Antenna/Cable Editor
The Antenna Editor and the Cable Editor menus are very similar. Both tables
include header information, and a Frequency/Value table.

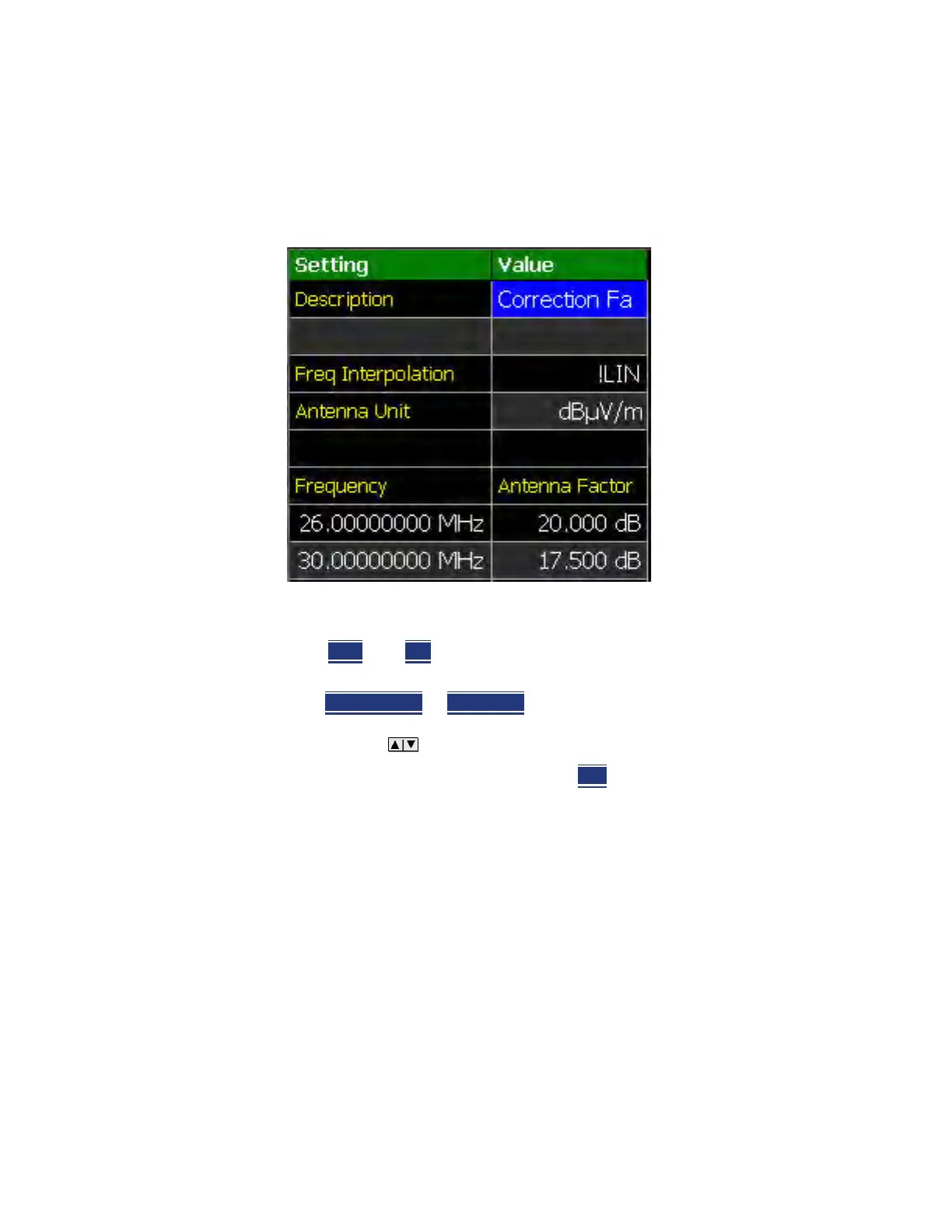

Figure 26-19 FieldFox Antenna Editor
How to use the Antenna/Cable Editor
—Press New then Yes to clear all data from the existing Antenna or Cable
table and reset header information to default settings.
—Then Edit Antenna
or Edit Cable to open the Antenna / Cable Editor.
— Then use the arrows to select a field.
— To edit header information, press Edit
then modify the selected field
using the FieldFox labeler.
——Description: Enter a description for the antenna or cable
correction table. This is NOT the filename used to save the file.
——Antenna Unit (Rcvr-side Antennas only): Units in which the
measurement will be displayed. Select NONE (default setting)
to select from standard Channel Scanner Units on the Scale
menu. Learn how in “Scale and Units” on page 153.
——Choose from: dB μV/m - (dB micro Volts per meter), dB μA/m
- (dB micro Amps per meter), dBG (gauss), dBpT (tesla).
——Freq Interpolation: Set to LINear and can NOT be edited.
— To edit Frequency/Value pairs, enter numbers using the numeric
keypad, and a frequency suffix when necessary.
To Next Page
