Keysight EXG and MXG X-Series Signal Generators User’s Guide 23
Models, Options, and Front/Rear Panels for All Models

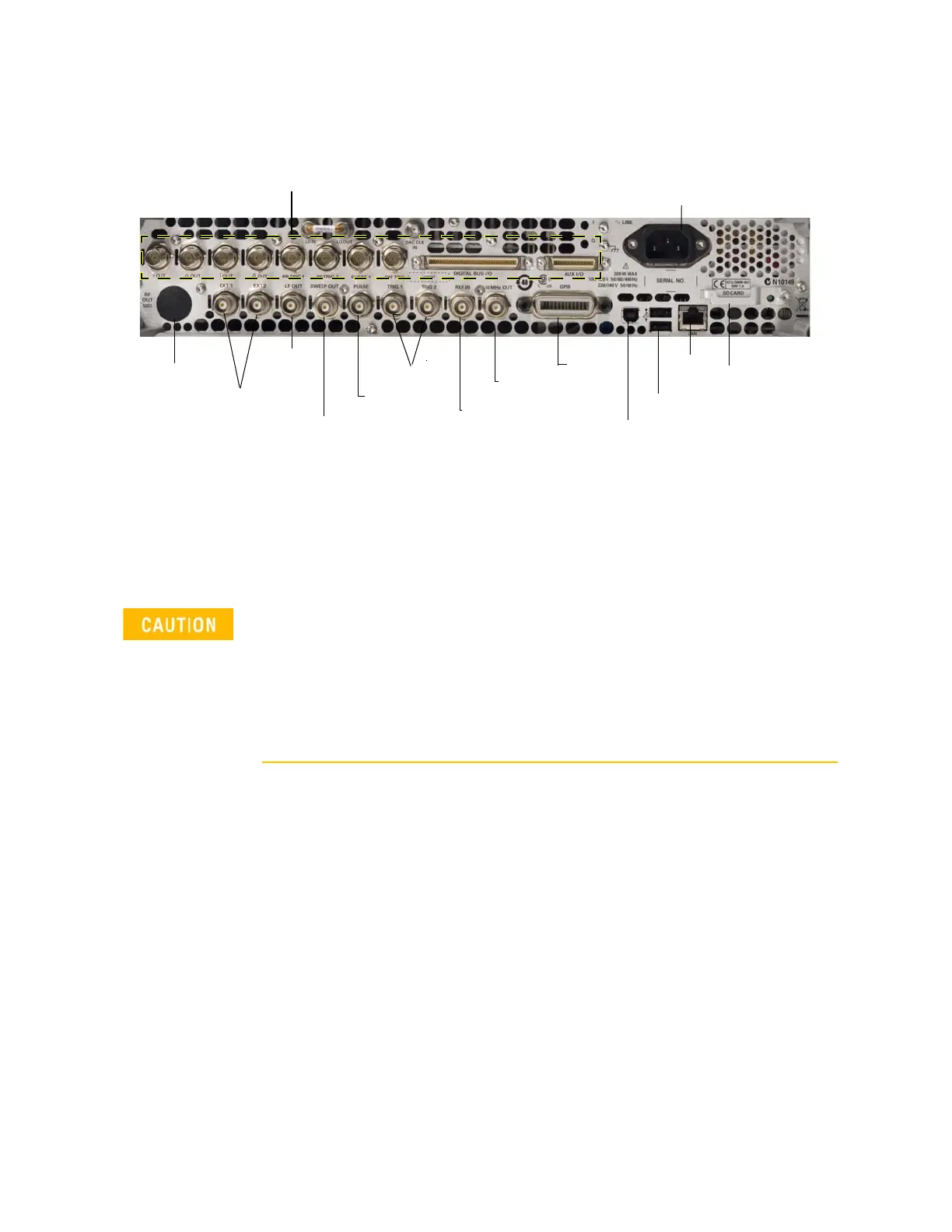

Rear Panel Overview (N5171B, N5172B, N5181B, & N5182B)
Rear Panel Overview (N5171B, N5172B, N5181B, & N5182B)
1. AC Power Receptacle
The AC power cord receptacle accepts a three–pronged AC power cord that is supplied with the
signal generator. For details on line setting requirements and the power cord,
see the Getting Started Guide.
To avoid the loss of data, GPIB settings, or current user instrument states that
have not been permanently saved to non-volatile memory, the signal generator
should always be powered down either via the instrument’s front panel power
button or the appropriate SCPI command. Signal generators installed in rack
systems and powered down with the system rack power switch rather than the
instrument’s front panel switch display an Error -310 due to the instrument not
being powered down correctly.
4. SWEEP OUT
2. EXT 1 & EXT 2
5. PULSE
6. TRIG 1 & 2
7. REF IN
9. GPIB
10. LAN
11. Device USB
8. 10 MHz OUT
1. AC Power Receptacle
Option 1EM only
See page18
Digital Modulation Connectors (N5172B/82B RF Vector Models Only) on page 26
12. Host USB
13. SD Card
3. LF OUT
