Keysight EXG and MXG X-Series Signal Generators User’s Guide 91
Optimizing Performance for All Models
Using the Dual Power Meter Display (with USB U2000A Series Power Sensors)
13.On the signal generator: Press Channel B to On and then back to Off again. This initializes the
signal generator to the external power meter.
14.Press Return > Zero Sensor
A diagnostic dialog box is displayed each time an external power meter is being used and the
Zero Sensor or Calibrate Sensor softkey is pressed (refer to Figure 5-10 on page 91).
Verify the power sensor is connected to the 50 MHz reference of the power meter.

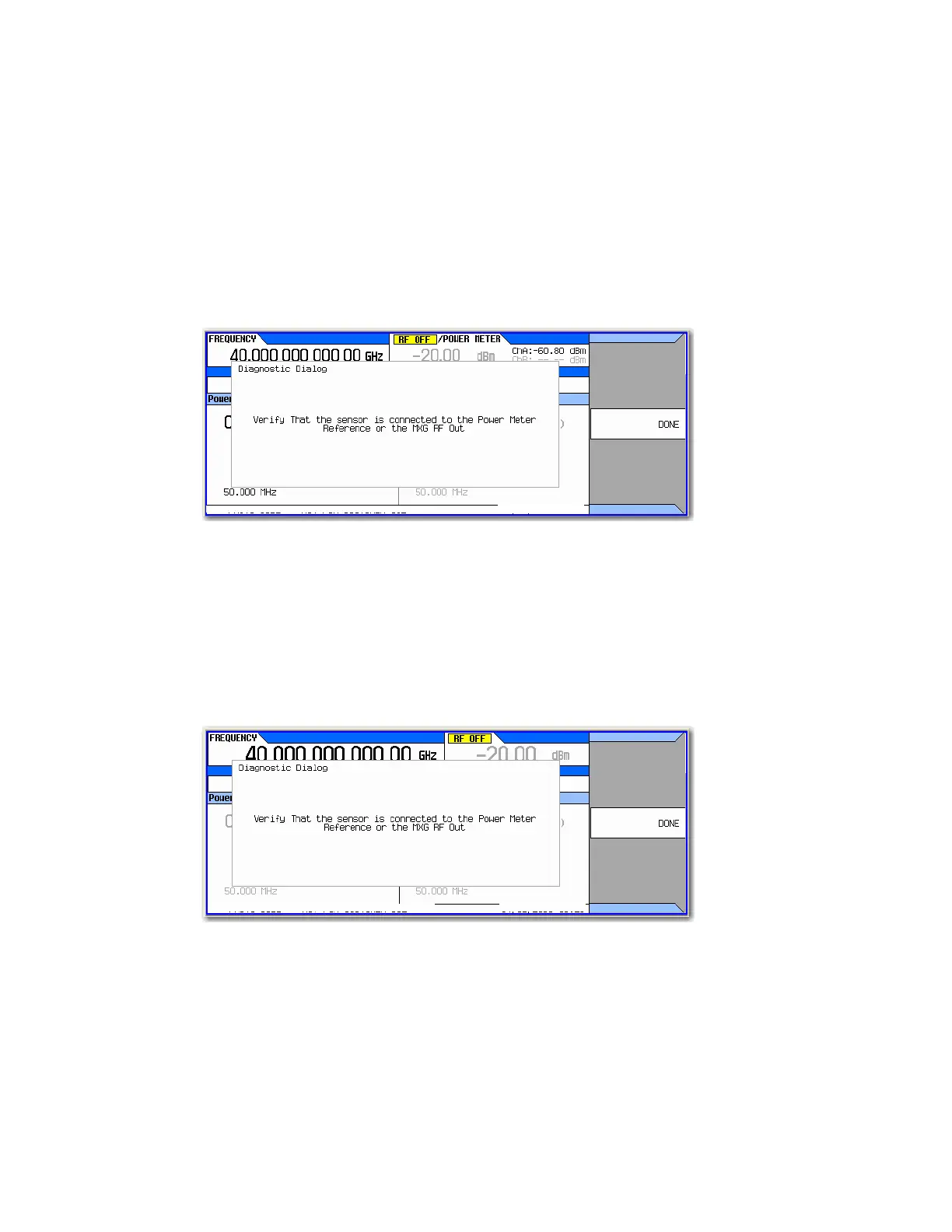

Figure 5-10 Diagnostic Dialog Box for Channel B
15.Press Done
The Running Calibration(s) bar is displayed: Zeroing Sensor Please wait....
16.After Running Calibration(s) bar disappears: Press Calibrate Sensor
Diagnostic Dialog box is displayed that prompts for verifying the connection of the power
sensor to the power meter 50 MHz reference (refer to Figure 5-11 on page 91).
Figure 5-11 Diagnostic Dialog Box for Calibration
For details on
each key, use key
help as described
on page56.
For details on
each key, use key
help as described
on page56.
