30 Installation Note N5222-90131
Description of the Upgrade
Installation Procedure for the Upgrade
-
Step 16. Assemble the A26 and A27 Receiver Bridge Assemblies
Follow the instructions shown in Figure 10. New parts are listed in Table 2 on
page 11 of this document.

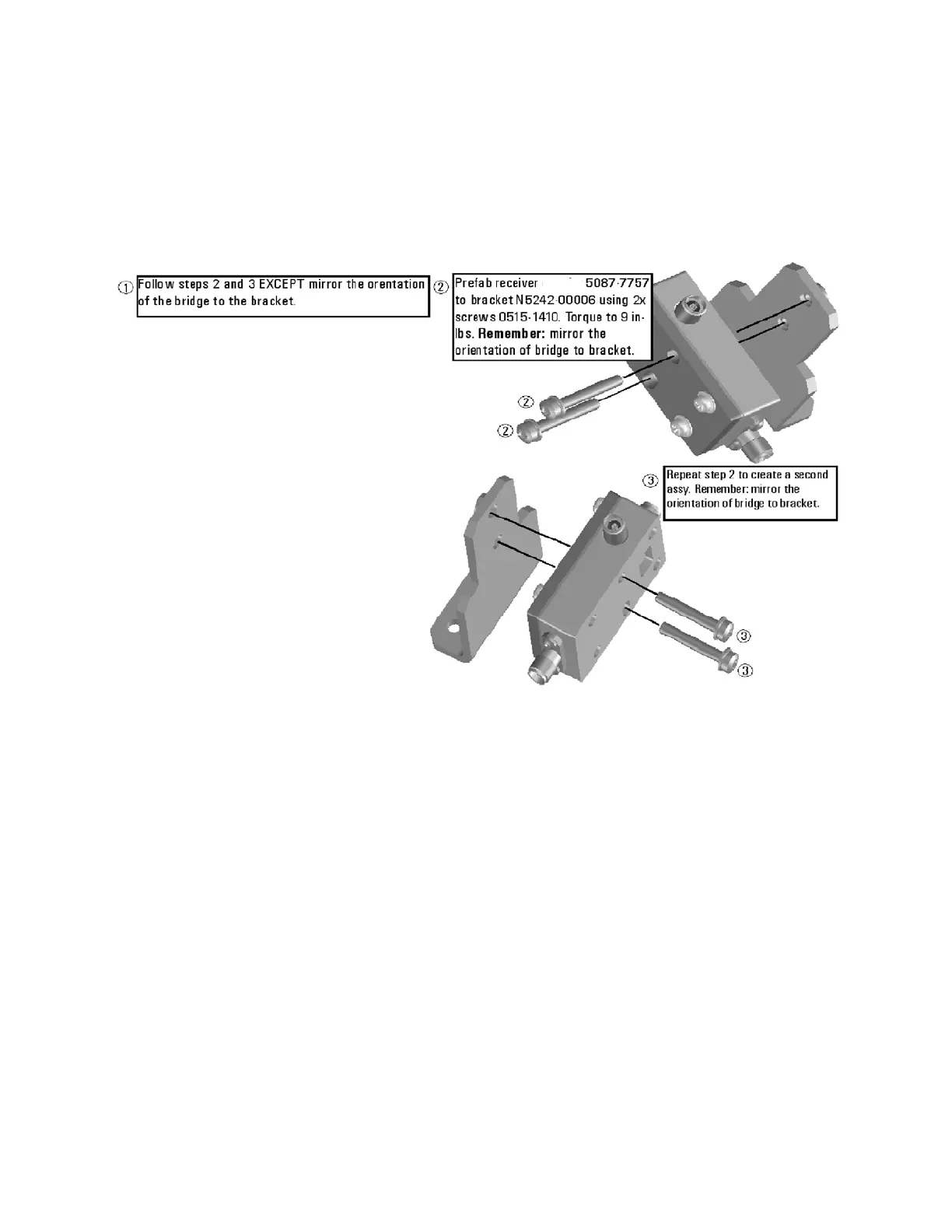

Figure 10 A26 and A27 Receiver Bridge Assemblies (5087-7757, N5242-00006, and
0515-1410)
Step 17. Install the A26 and A27 Receiver Bridge Assemblies
Follow instruction 2 shown in Figure 9. New parts are listed in Table 2 on
page 11 of this document.
bridge
