Installation Note N5222-90131 39
Description of the Upgrade
Installation Procedure for the Upgrade
Step 25. Install the 4-Port Coupler Plate Assembly to the Deck
Follow the four instructions shown in Figure 19.

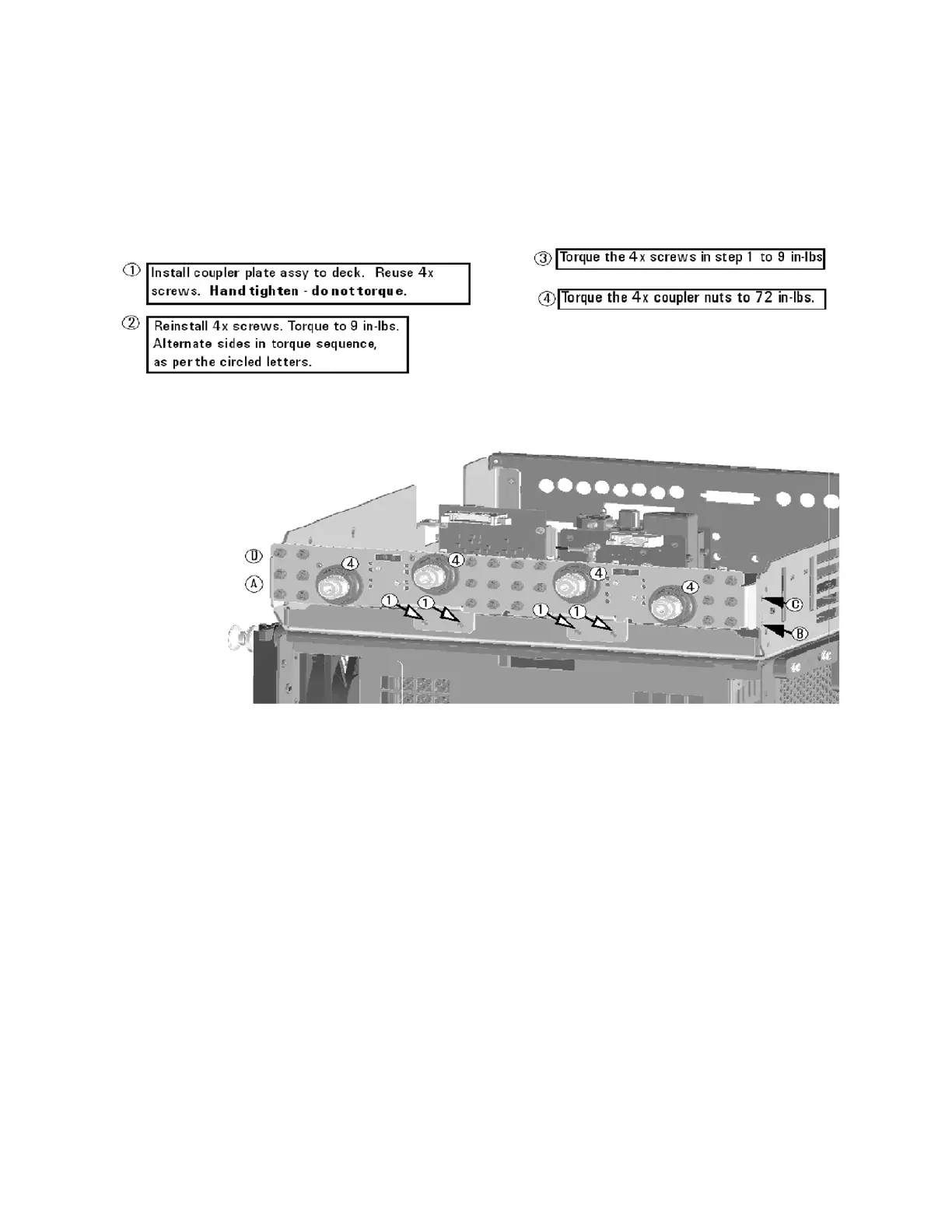

Figure 19 Coupler Plate Assembly Installation
