Installation Note N5222-90131 69
Description of the Upgrade
Installation Procedure for the Upgrade

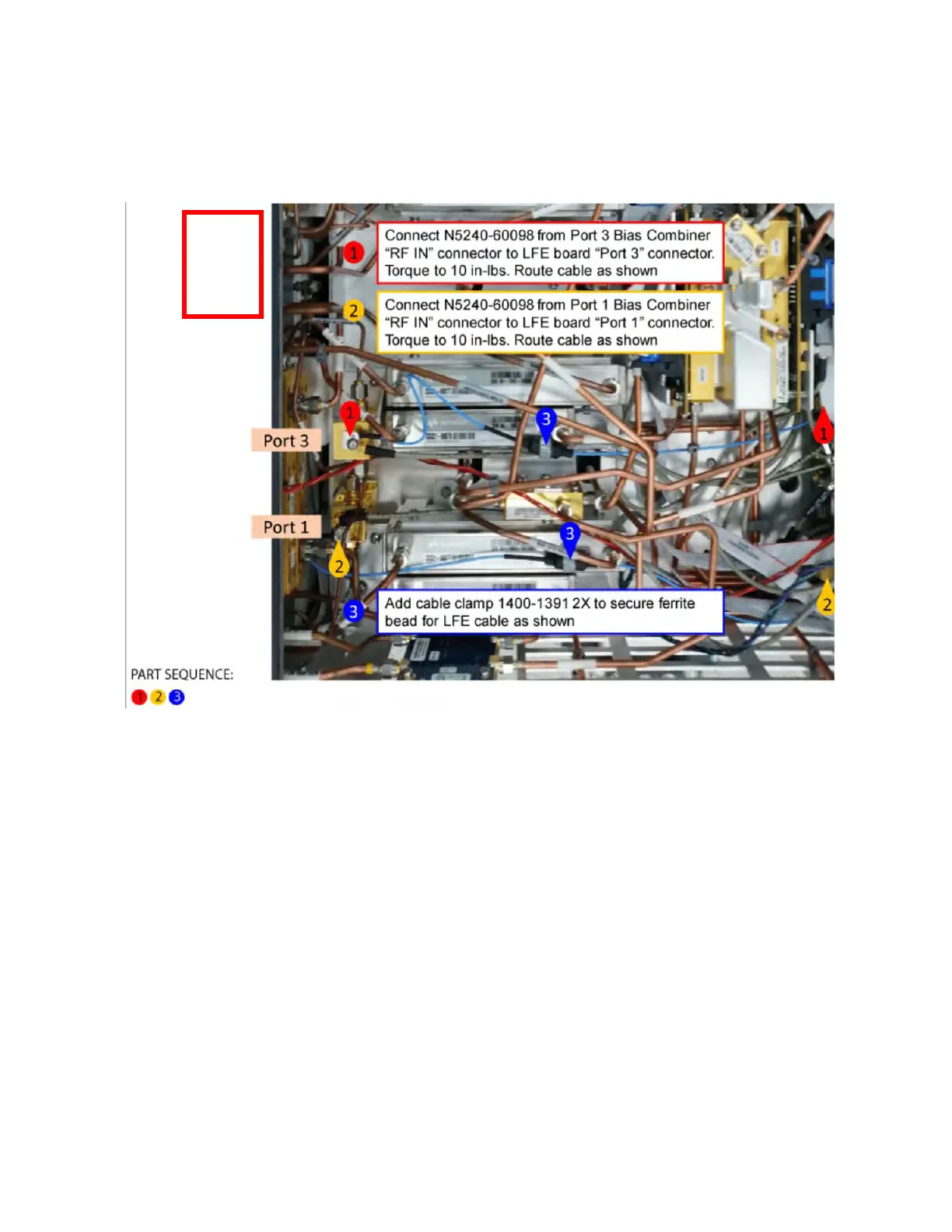

Figure 42 Connect New N5240-60098 (x1) from the A72 (Port 3) and Verify
N5240-60098 (x1) A71 (Port 1) Bias Tee Combiners to the A70 LFE Board and
Install Clamps on Ferrite Beads (N5240-60098 (x2), and 1400-1391 (x2))
Verify Port
1 cable is
properly
routed and
secured.
