Getting Started Guide 29
Quick Start
Millimeter-Wave Accessory Instruments
Millimeter-Wave Accessory Instruments
The E7515B (UXM 5G) supports a wide variety of testing scenarios in regard to
the way antennas are routed to transmit and receive ports on the front panel.
Full duplex and half duplex modes are possible at any port. Up to 4 antennas
can be used as receivers and 8 antennas can be used as transmitters.
For testing at higher frequencies than the E7515B itself can generate, two
other instruments are commonly used with the E7515B: the M1740A mmWave
Transceiver (usually called the Remote Radio Head or RRH) and the E7770A
Common Interface Unit (usually called the CIU).

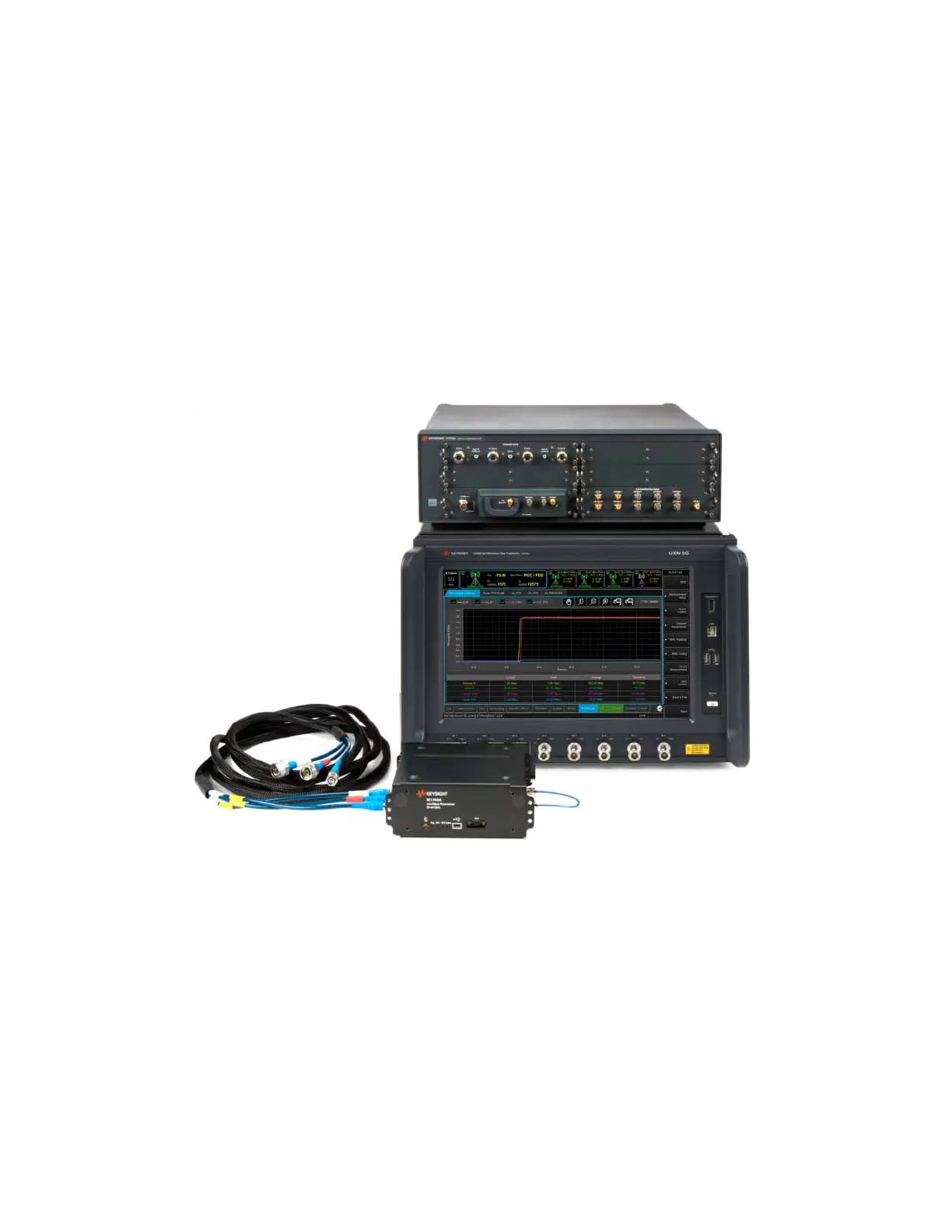

Figure 2-3 E7515B used with M1740A (bottom) and E7770A (top)
