Service Guide N5227-90001 6-17
PNA Series Microwave Network Analyzers Replaceable Parts
N5227A Replaceable Parts Listings

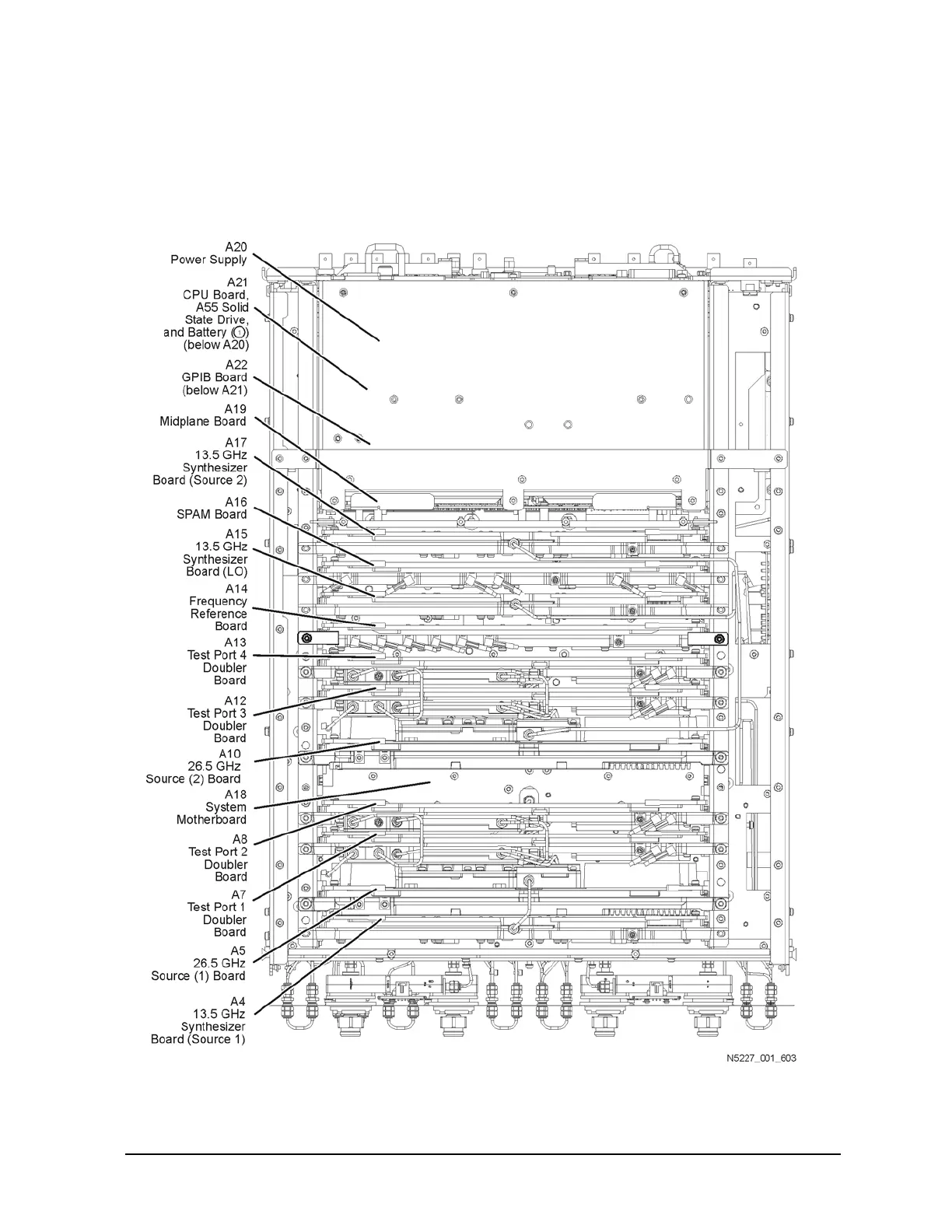

Figure 6-6. Top Assemblies, All Options
d. For more information on the N8983A SSD, refer to the Windows 7 Operating System Upgrade Kit Installation Note,
online available online at http://literature.cdn.keysight.com/litweb/pdf/N8983-90001.pdf.
e. The lithium battery is located inside the A21 CPU board assembly. Refer to “Removing and Replacing the Lithium
Battery” on page 7-52 for an illustration.
