Banded millimeter-wave measurements
With rmware version A.04.00 or later, the PNA microwave E836xC network analyzers
are capable of supporting banded millimeter-wave modules, extending the frequency
range of your network analyzer up to 500 GHz. Additionally, you can customize the
most cost-effective solution specic for your application by purchasing just the module
and frequency range you need. Figure 10 shows a typical millimeter-wave conguration.

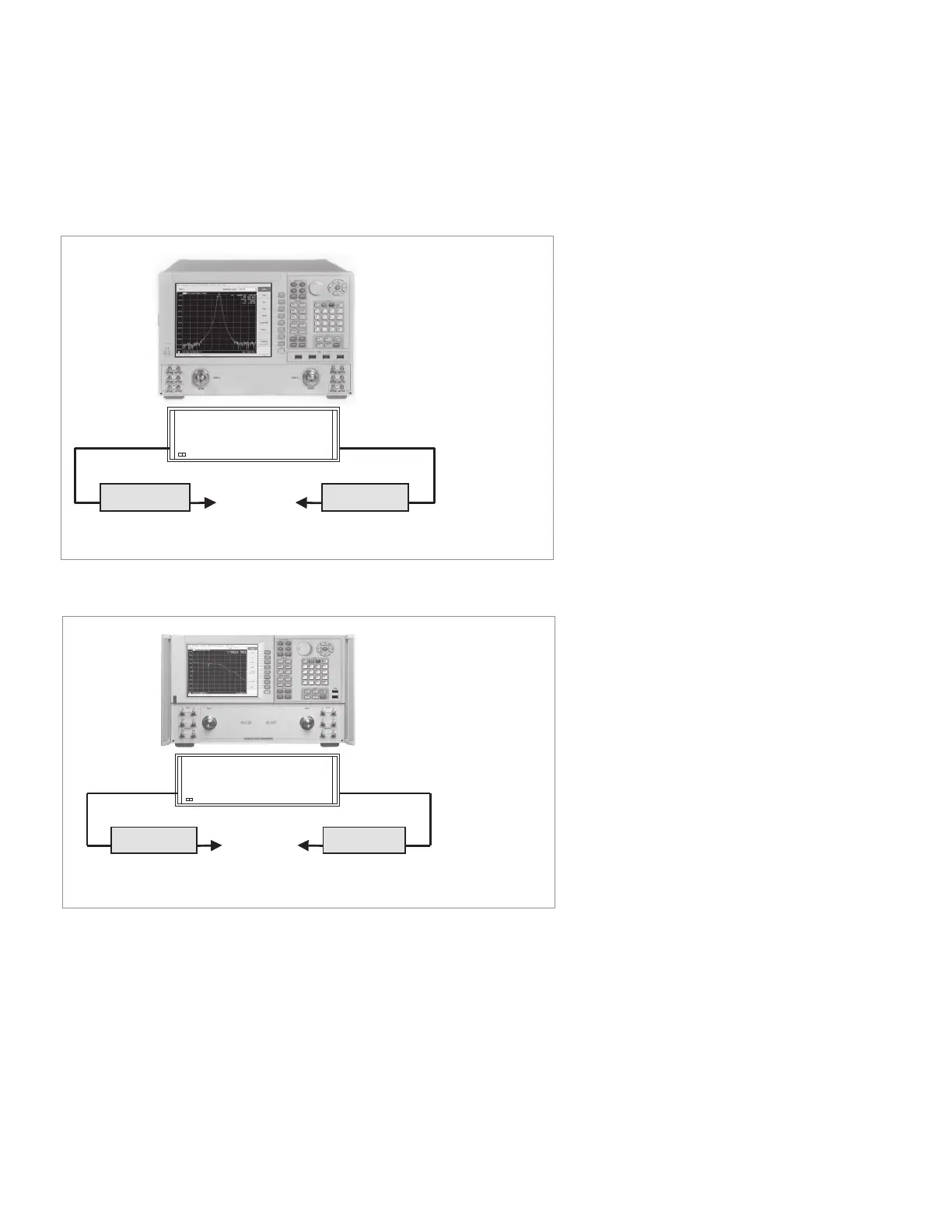

Figure 10. Typical millimeter-wave conguration using a Keysight PNA-X, a mm-wave controller and Oleson
Microwave Laboratory mm-wave modules.
Figure 11. Typical millimeter-wave conguration using a Keysight PNA, a mm-wave controller and Oleson
Microwave Laboratory mm-wave modules.
T/R module
T2 module
N5222/4/5/7A PNA Series
with Option X01, 020
N5242/4/5A PNA-X Series
with Option 200, 020
OML test heads
Tx, antenna
Rx, antenna
N5261A mmWave controller
T/R module
T2 module
Legacy (E836xC) PNA analyzer
with Option 014, 080, 081,
UNL and H11.
OML test heads
Tx, antenna
Rx, antenna
N5260A mmWave controller
11 | Keysight | Antenna Test – Selection Guide

Keysight PNA Series Specifications

General

Number of Ports	2, 4
Impedance	50 Ω
Output Power Range	-55 dBm to +13 dBm (varies by model)
Dimensions	Varies by model
Weight	Varies by model
Power Requirements	100-240 VAC, 50/60 Hz
Storage Temperature	-40°C to 70°C
