Legacy PNA interface requirements
When conguring the PNA it is critical that power levels are considered to avoid damag-
ing the PNA. Ideally, power should not exceed the 0.1 dB compression levels indicated in
the gures below. Damage levels are printed on the instrument, as shown in Figure 20.

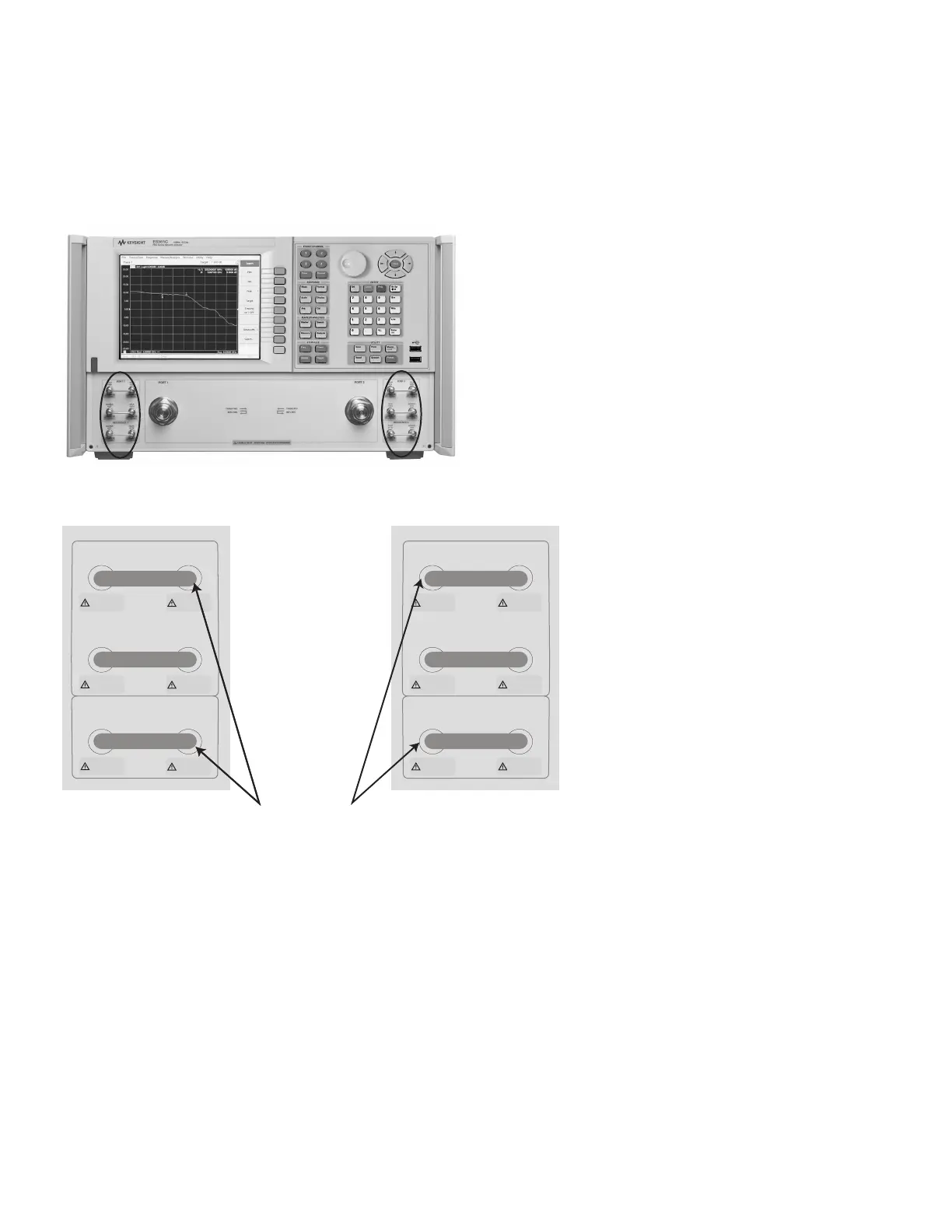

Figure 20. PNA E836xC front panel connectors.
+30 dBm +20 dBm
REFERENCE 2
RCVR
R2 IN
SOURCE
OUT
PORT 2
RCVR
B IN
CPLR
ARM
SOURCE
OUT
CPLR
THRU
+15 dBm +30 dBm
+15 dBm +20 dBm
REFERENCE 1
SOURCE
OUT
RCVR
R1 IN
PORT 1
CPLR
ARM
RCVR
A IN
CPLR
THRU
SOURCE
OUT
+15 dBm
+30 dBm
+30 dBm
+20 dBm
+15 dBm
+20 dBm
0.1 dB compression level:
–15 dBm typical at 20 GHz
–25 dBm typical at 50 GHz
36 | Keysight | Antenna Test – Selection Guide
