When designing an antenna measurement system, there are many parameters that
must be considered in order to select the optimum equipment. Begin by considering the
components for the transmit site, then move to the receive site. Designing a complete
antenna system often requires you to congure the transmit site, then the receive site,
and then make adjustments to the transmit site and recalculate the values for optimum
performance.
Transmit site configuration

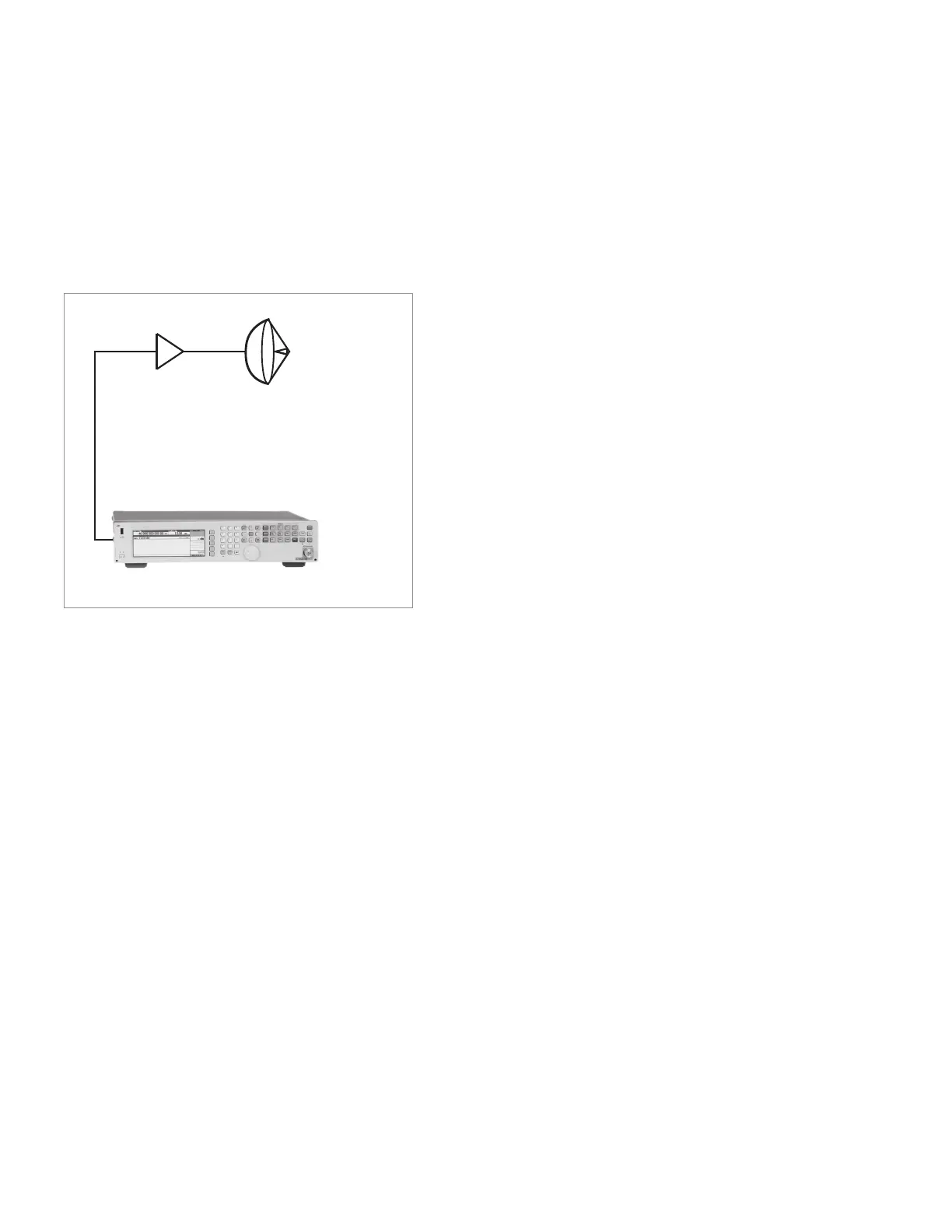

Figure 14. Transmit site conguration.
Select the transmit source
In selecting the transmit source, consider the frequency range of the antenna under test,
the distance to the transmit antenna, the available power of the source, and the speed
requirements for the measurements. For compact ranges and near-eld ranges, the
internal PNA source will typically be the best source to meet your measurement needs.
The internal source is faster than an external source and may lower the cost of the
complete system by eliminating a source. Large outdoor ranges may require an external
source that can be placed at a remote transmit site.
Will a transmit amplier be used?
Begin by making your power calculations without an amplier. If after doing the power
calculations the transmit power is not high enough, then add an amplier and run the
calculations again.
3. Antenna measurement design considerations
Transmit antenna
Optional
amplifier
MXG synthesized source or internal PNA source
E
RP
G
amp
L
1
L
2
24 | Keysight | Antenna Test – Selection Guide

Keysight PNA Series Specifications

General

Number of Ports	2, 4
Impedance	50 Ω
Output Power Range	-55 dBm to +13 dBm (varies by model)
Dimensions	Varies by model
Weight	Varies by model
Power Requirements	100-240 VAC, 50/60 Hz
Storage Temperature	-40°C to 70°C
