PNA-L Series network analyzers
The PNA-L has many of the same great characteristics of the PNA family but differs in
the following ways.
Option H11, IF access, and Option 008, Pulsed-RF measurement capability are not avail-
able. The PNA-L cannot be upgraded to millimeter frequencies.
The PNA-L allows even wider IF bandwidth settings than the PNA and has speed ad-
vantages over the PNA. It has slightly less sensitivity than the PNA (refer to Table 1 in
section 3 for a sensitivity comparison).
For additional information and specications, refer to the PNA-L data sheet, literature
number 5989-0514EN.
ENA
The ENA differs from the PNA in the following ways.
Option H11, IF access, Option 008, Pulsed-RF measurement capability, and Option 014,
Congurable test set are not available. The ENA is limited to 8.5 GHz and cannot be
upgraded to millimeter-wave frequencies. It also has no security features.
The ENA is the lowest cost solution.
For additional information and specications, refer to the ENA data sheet, literature
number 5988-3780EN.
Sources

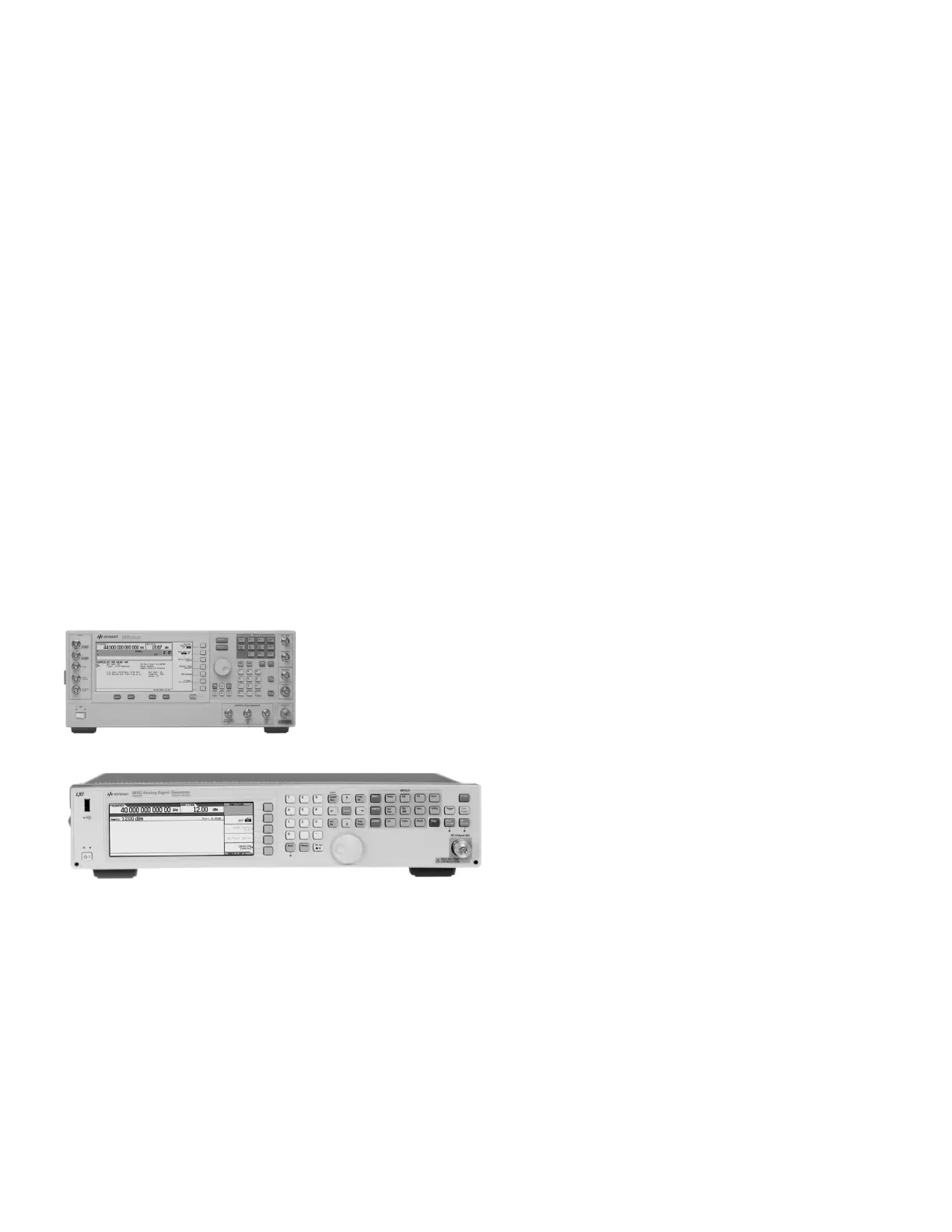

Figure 36. PSG sources.
Figure 37. MXG sources.
When selecting a transmit source for an antenna range, frequency range and output
power are the primary concerns. Future frequency requirements should also be con-
sidered. Keysight offers a variety of signal generators with different frequency ranges
and output power. Source frequency switching speed must also be considered for some
applications. Keysight sources provide different switching speed capability, with options
for setting times less than 1 ms. Depending on individual preference, select a transmit
source from Table 5. If the system is to be used for measuring antennas in a pulsed mode
of operation, Pulse modulation (Option UNU) or Narrow pulse modulation (Option UNW)
must be ordered.
52 | Keysight | Antenna Test – Selection Guide
