Keysight PNA Series User Manual

Far-eld antenna measurements
The N5264A PNA-X measurement receiver based system uses 85320A/B broadband
external mixers and a 85309B distributed frequency converter and provides the best
measurement solution (shown in Figure 4). With Option 108, the internal microwave syn-
thesized source can be used as the LO source for the 85309B LO/IF Distribution Unit.
Alternatively, PNA/PNA-X Option 020 or Legacy (E836xC) PNA with Option H11, IF ac-
cess can achieve high sensitivity required for far-eld antenna measurements. Higher
sensitivity can be achieved since the IF signal bypasses the rst down conversion stage
in the PNA/PNA-X, and is routed directly to the input of the second down conversion
stage in the rear panel.
Optional
PSG Synthesized source
Router/Hub
Source antenna
amplifier
Trigger in/out
LAN
LAN
Refer to Table 18
Trigger in/out
85320B
Reference
mixer
85320A
Test mixer
85309B
LO in
PSG or MXG
LO out
10 MHz
10 MHz
AUT
Positioner
Power
Supply
Positioner controller
Note: With Option H11, the rst IF of the PNA
is at 8.33 MHz, so when using H11 inputs, the
user should offset external mixer LO inputs
by 8.33 MHz.

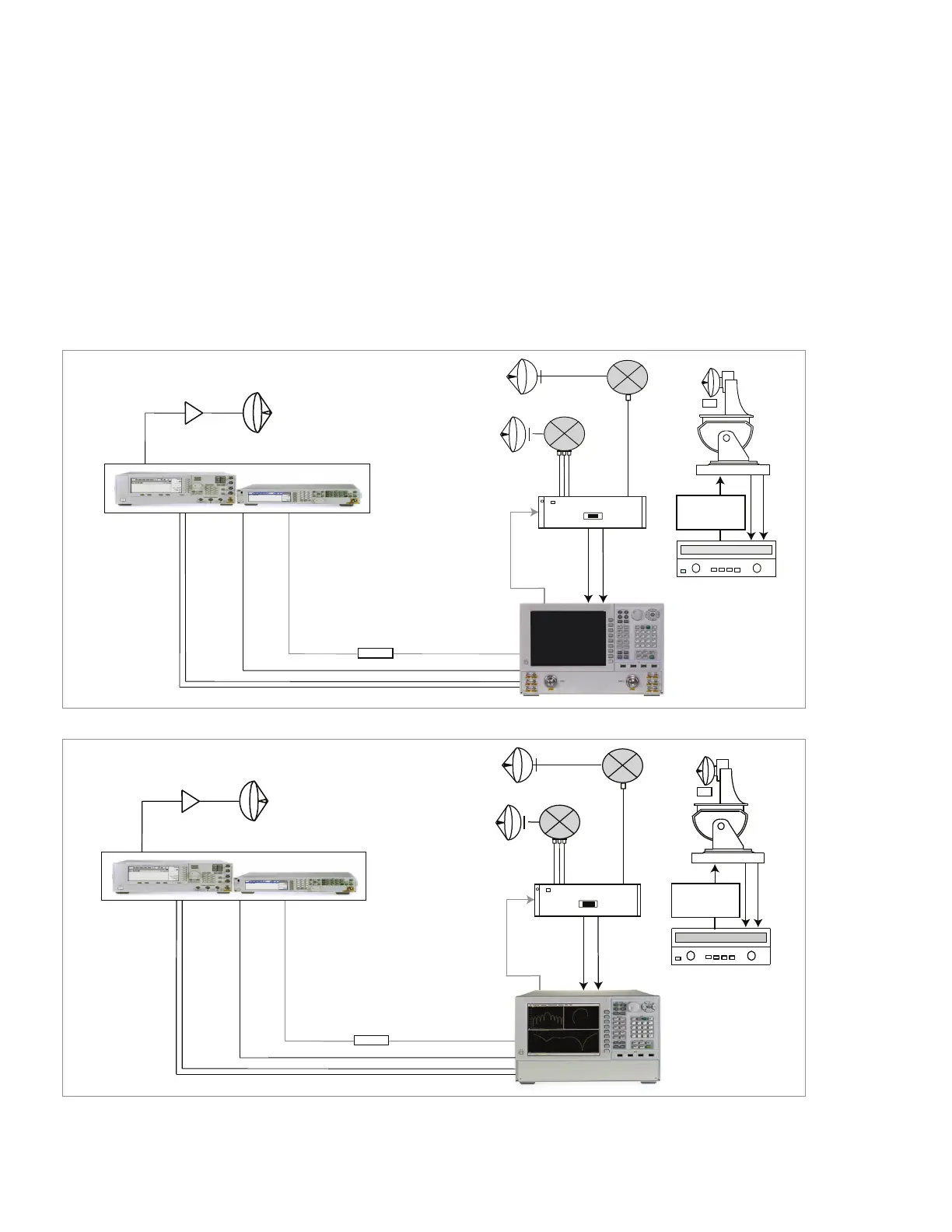

Figure 3. Typical far-eld antenna measurement conguration using a PNA-X network analyzer.
Figure 4. Typical conguration for a compact antenna range using using a PNA-X measurement receiver.
PSG Synthesized source
Router/Hub
Source antenna
Optional
amplifier
Trigger in/out
LAN
LAN
Refer to Table 18
Trigger in/out
85320B
Reference
mixer
85320A
Test mixer
85309B
LO in
PSG or MXG
LO out
(Opt. 108)
10 MHz
10 MHz
AUT
Positioner
Power
Supply
Positioner controller
07 | Keysight | Antenna Test – Selection Guide

Keysight PNA Series Specifications

General

Number of Ports	2, 4
Impedance	50 Ω
Output Power Range	-55 dBm to +13 dBm (varies by model)
Dimensions	Varies by model
Weight	Varies by model
Power Requirements	100-240 VAC, 50/60 Hz
Storage Temperature	-40°C to 70°C
