42 Keysight S5040A Open RAN Studio Player and Capture Appliance User’s Guide
2 Getting Started
2.0.4: Copper SFP module for M-Plane Passthrough
Inserting the Copper SFP module into a QSFP28 to SFP28 adapter
The process for inserting the Copper SFP module is the same as that of
inserting a fiber SFP28 module. See Inserting SFP28 module into a
QSFP28 to SFP28 adapter on page 40. The inverted position of the
QSFP28 to SFP28 adapter, with the Copper SFP module inserted within, is
shown in Figure 30.

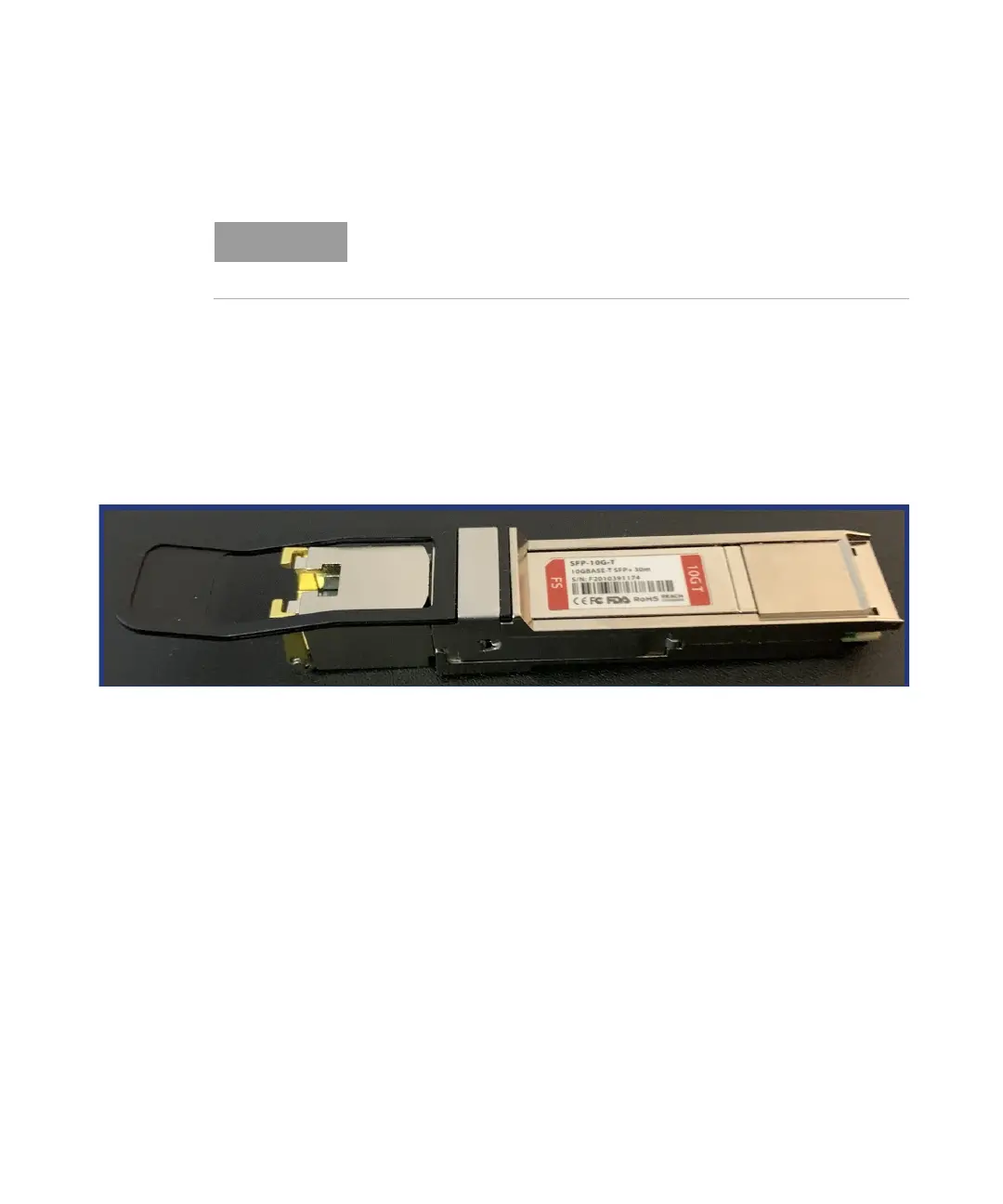

Figure 30 Inserting a Copper SFP module into a QSFP28 to SFP28 adapter
In this section, an SFP+ 10GBASE-T module is shown for the purpose of
illustration. While they are almost identical in appearance, for M-Plane
Passthrough, a 1000BASE-T SFP module (1G) is actually required.
